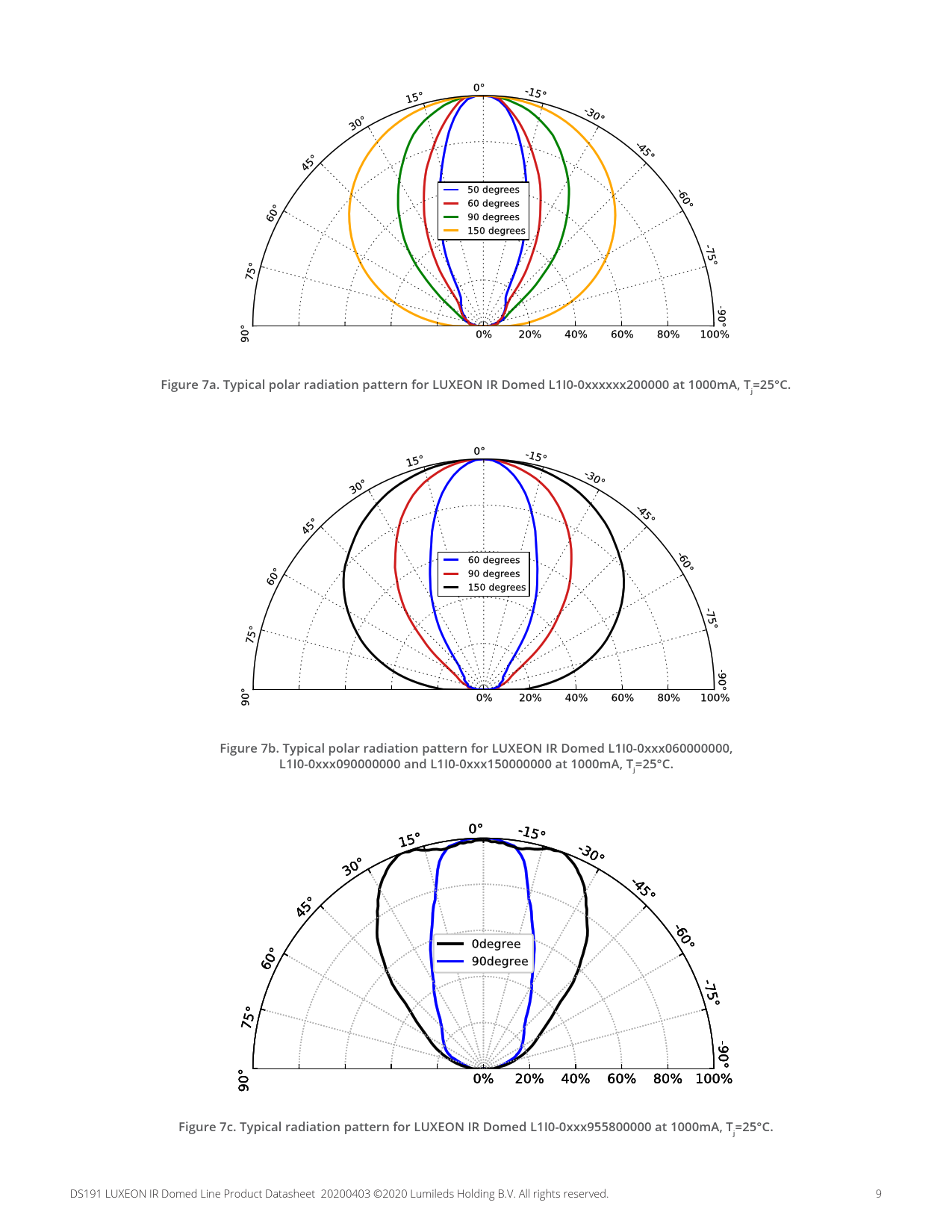

Figure 7a . Typical polar radiation pattern for LUXEON IR Domed L1I0-0xxxxxx200000 at 1000mA, T =25°C . j Figure 7b . Typical polar radiation pattern for LUXEON IR Domed L1I0-0xxx060000000, L1I0-0xxx090000000 and L1I0-0xxx150000000 at 1000mA, T =25°C . j Figure 7c . Typical radiation pattern for LUXEON IR Domed L1I0-0xxx955800000 at 1000mA, T =25°C . j
DS191 LUXEON IR Domed Line Product Datasheet 20200403 ©2020 Lumileds Holding B.V. All rights reserved. 9 Document Outline General Product Information Product Test Conditions Part Number Nomenclature Radiometric Power Maintenance Environmental Compliance Performance Characteristics Product Selection Guide Optical Characteristics Electrical and Thermal Characteristics Absolute Maximum Ratings Characteristic Curves Spectral Power Distribution Characteristics Light Output Characteristics Forward Current Characteristics Wavelength Shift Characteristics Radiation Pattern Characteristics Permissible Pulse Handling Characteristics Product Bin and Labeling Definitions Decoding Product Bin Labeling Radiometric Power Bins Peak Wavelength Bins Forward Voltage Bins Mechanical Dimensions Reflow Soldering Guidelines JEDEC Moisture Sensitivity Solder Pad Design Packaging Information Pocket Tape Dimensions Reel Dimensions
