Datasheet LUXEON IR Domed (Lumileds) - 8
| Hersteller | Lumileds |
| Beschreibung | High power infrared emitters with engineered primary optics for high efficiency and beam control |
| Seiten / Seite | 20 / 8 — Figure 5. Typical peak wavelength shift vs. case temperature for LUXEON … |
| Dateiformat / Größe | PDF / 2.4 Mb |
| Dokumentensprache | Englisch |
Figure 5. Typical peak wavelength shift vs. case temperature for LUXEON IR Domed Line at 1000mA
Modelllinie für dieses Datenblatt
- L1I0-0850050200000 L1I0-0850060000000 L1I0-0850060200000 L1I0-0850090000000 L1I0-0850090200000 L1I0-0850150000000 L1I0-0850150200000 L1I0-0850955800000 L1I0-0940050200000 L1I0-0940060000000 L1I0-0940060200000 L1I0-0940090000000 L1I0-0940090200000 L1I0-0940150000000 L1I0-0940150200000 L1I0-0940955800000
Textversion des Dokuments

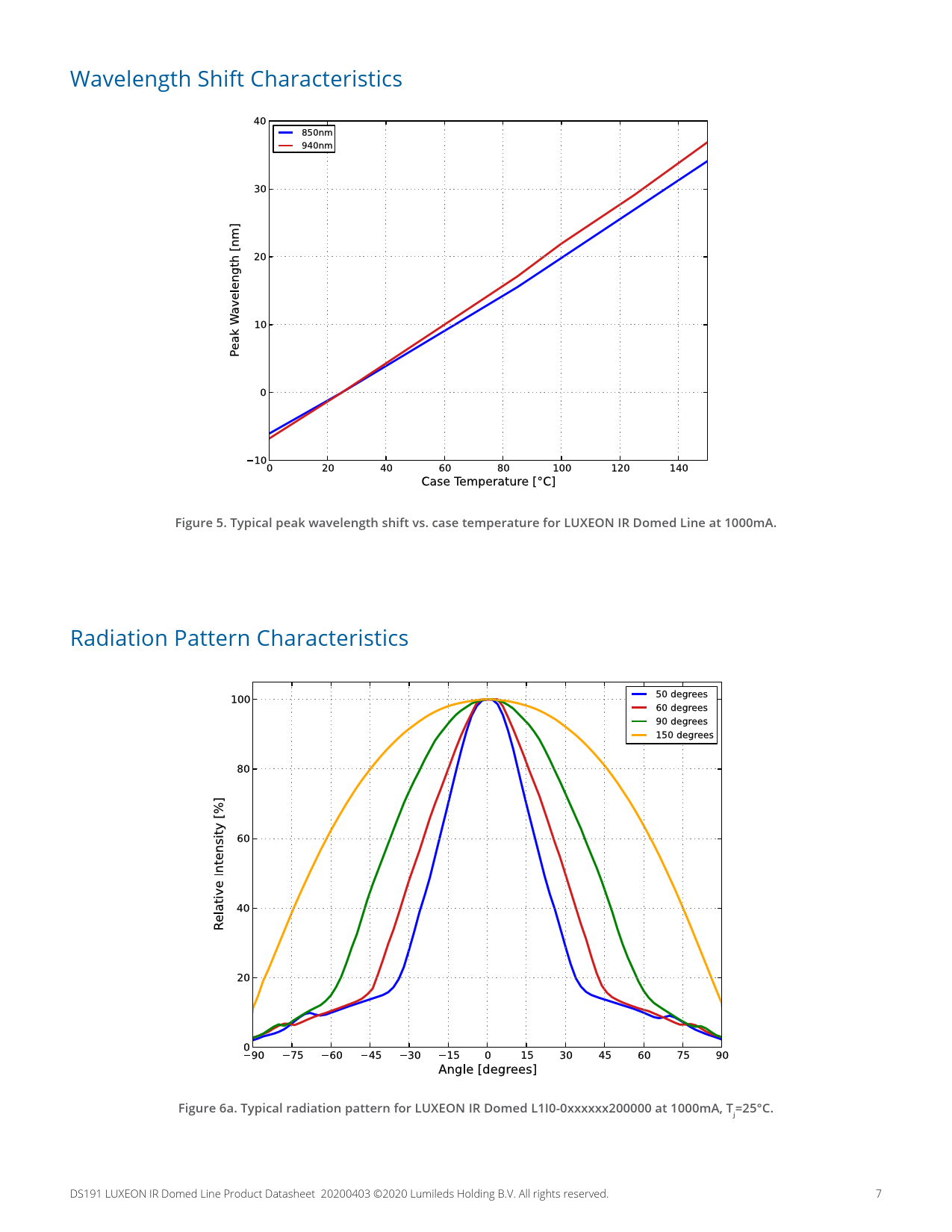

Wavelength Shift Characteristics
Figure 5. Typical peak wavelength shift vs. case temperature for LUXEON IR Domed Line at 1000mA .
Radiation Pattern Characteristics
Figure 6a . Typical radiation pattern for LUXEON IR Domed L1I0-0xxxxxx200000 at 1000mA, T =25°C . j
DS191 LUXEON IR Domed Line Product Datasheet 20200403 ©2020 Lumileds Holding B.V. All rights reserved. 7 Document Outline General Product Information Product Test Conditions Part Number Nomenclature Radiometric Power Maintenance Environmental Compliance Performance Characteristics Product Selection Guide Optical Characteristics Electrical and Thermal Characteristics Absolute Maximum Ratings Characteristic Curves Spectral Power Distribution Characteristics Light Output Characteristics Forward Current Characteristics Wavelength Shift Characteristics Radiation Pattern Characteristics Permissible Pulse Handling Characteristics Product Bin and Labeling Definitions Decoding Product Bin Labeling Radiometric Power Bins Peak Wavelength Bins Forward Voltage Bins Mechanical Dimensions Reflow Soldering Guidelines JEDEC Moisture Sensitivity Solder Pad Design Packaging Information Pocket Tape Dimensions Reel Dimensions
Figure 5. Typical peak wavelength shift vs. case temperature for LUXEON IR Domed Line at 1000mA .
Radiation Pattern Characteristics
Figure 6a . Typical radiation pattern for LUXEON IR Domed L1I0-0xxxxxx200000 at 1000mA, T =25°C . j
