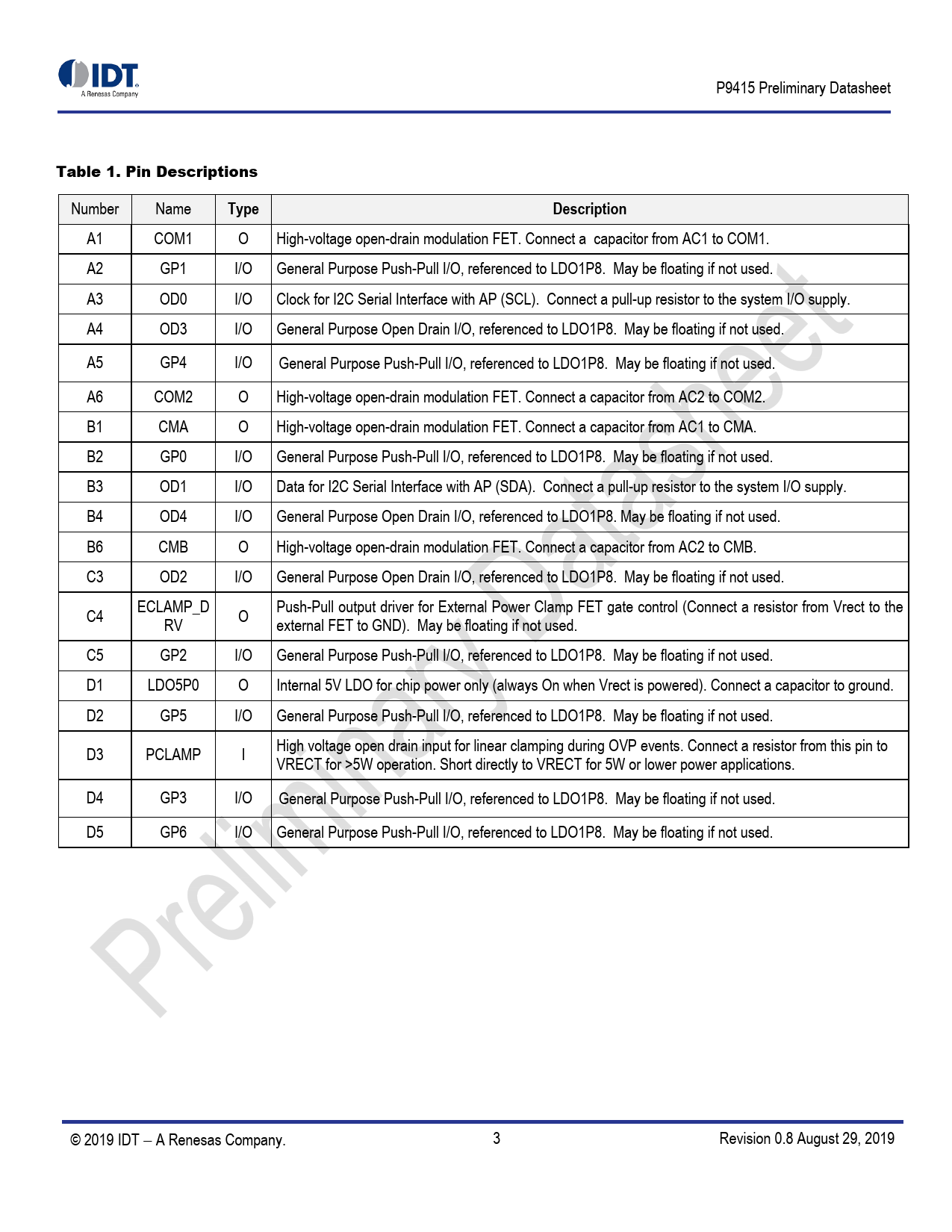

P9415 Preliminary Datasheet Table 1. Pin Descriptions Number
Name TypeDescription A1
COM1
O
High-voltage open-drain modulation FET. Connect a capacitor from AC1 to COM1.
A2
GP1
I/O
General Purpose Push-Pull I/O, referenced to LDO1P8. May be floating if not used.
A3
OD0
I/O
Clock for I2C Serial Interface with AP (SCL). Connect a pull-up resistor to the system I/O supply.
A4
OD3
I/O
General Purpose Open Drain I/O, referenced to LDO1P8. May be floating if not used. A5 GP4 I/O General Purpose Push-Pull I/O, referenced to LDO1P8. May be floating if not used. A6
COM2
O
High-voltage open-drain modulation FET. Connect a capacitor from AC2 to COM2.
B1 CMA O High-voltage open-drain modulation FET. Connect a capacitor from AC1 to CMA. B2
GP0
I/O
General Purpose Push-Pull I/O, referenced to LDO1P8. May be floating if not used.
B3
OD1
I/O
Data for I2C Serial Interface with AP (SDA). Connect a pull-up resistor to the system I/O supply.
B4 OD4 I/O General Purpose Open Drain I/O, referenced to LDO1P8. May be floating if not used.
B6
CMB
O
High-voltage open-drain modulation FET. Connect a capacitor from AC2 to CMB.
