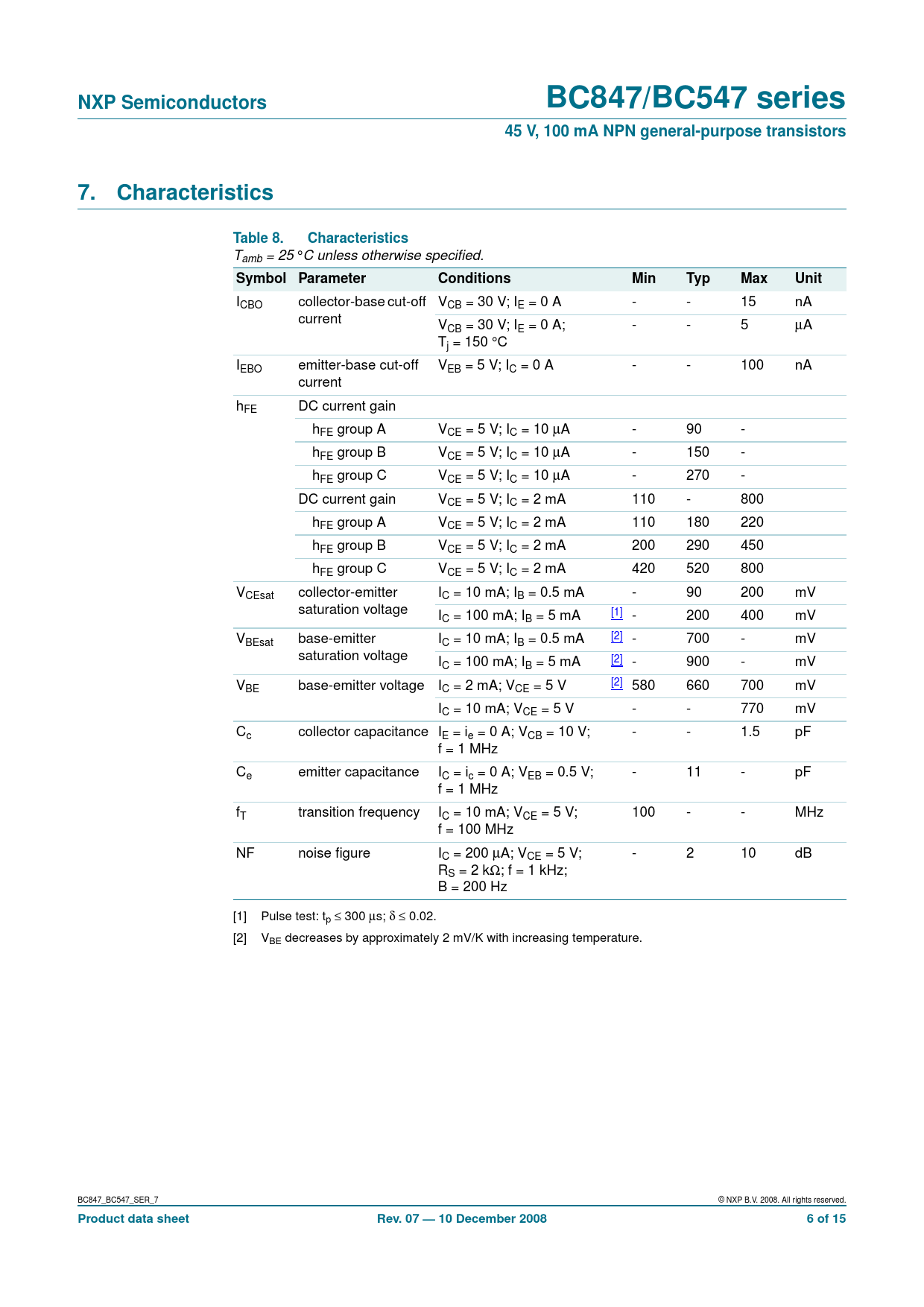

NXP Semiconductors BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors 7. Characteristics Table 8. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
ICBO collector-base cut-off VCB = 30 V; IE = 0 A - - 15 nA current VCB = 30 V; IE = 0 A; - - 5 µA Tj = 150 °C IEBO emitter-base cut-off VEB = 5 V; IC = 0 A - - 100 nA current hFE DC current gain hFE group A VCE = 5 V; IC = 10 µA - 90 - hFE group B VCE = 5 V; IC = 10 µA - 150 - hFE group C VCE = 5 V; IC = 10 µA - 270 - DC current gain VCE = 5 V; IC = 2 mA 110 - 800 hFE group A VCE = 5 V; IC = 2 mA 110 180 220 hFE group B VCE = 5 V; IC = 2 mA 200 290 450 hFE group C VCE = 5 V; IC = 2 mA 420 520 800 VCEsat collector-emitter IC = 10 mA; IB = 0.5 mA - 90 200 mV saturation voltage IC = 100 mA; IB = 5 mA [1] - 200 400 mV VBEsat base-emitter IC = 10 mA; IB = 0.5 mA [2] - 700 - mV saturation voltage IC = 100 mA; IB = 5 mA [2] - 900 - mV VBE base-emitter voltage IC = 2 mA; VCE = 5 V [2] 580 660 700 mV IC = 10 mA; VCE = 5 V - - 770 mV Cc collector capacitance IE = ie = 0 A; VCB = 10 V; - - 1.5 pF f = 1 MHz Ce emitter capacitance IC = ic = 0 A; VEB = 0.5 V; - 11 - pF f = 1 MHz fT transition frequency IC = 10 mA; VCE = 5 V; 100 - - MHz f = 100 MHz NF noise figure IC = 200 µA; VCE = 5 V; - 2 10 dB RS = 2 kΩ; f = 1 kHz; B = 200 Hz [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. [2] VBE decreases by approximately 2 mV/K with increasing temperature. BC847_BC547_SER_7 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 07 — 10 December 2008 6 of 15
