Datasheet LT8610AC, LT8610AC-1 (Analog Devices) - 3

HerstellerAnalog Devices
Beschreibung42V, 3.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current
Seiten / Seite26 / 3 — e lecTrical characTerisTics The. denotes the specifications which apply …
Dateiformat / GrößePDF / 552 Kb
DokumentenspracheEnglisch

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating

e lecTrical characTerisTics The denotes the specifications which apply over the full operating

Textversion des Dokuments

LT8610AC/LT8610AC-1
e lecTrical characTerisTics The
l

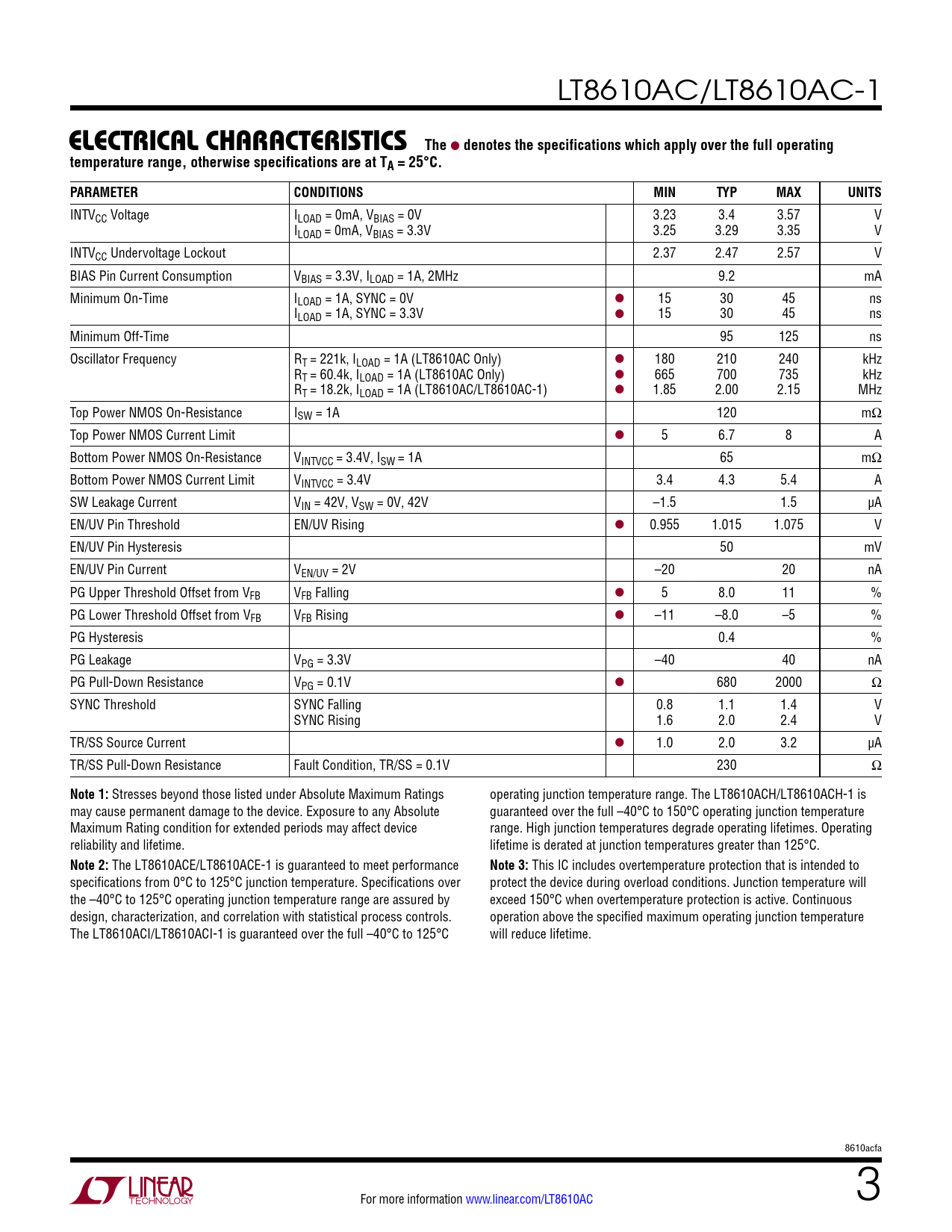

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
INTVCC Voltage ILOAD = 0mA, VBIAS = 0V 3.23 3.4 3.57 V ILOAD = 0mA, VBIAS = 3.3V 3.25 3.29 3.35 V INTVCC Undervoltage Lockout 2.37 2.47 2.57 V BIAS Pin Current Consumption VBIAS = 3.3V, ILOAD = 1A, 2MHz 9.2 mA Minimum On-Time ILOAD = 1A, SYNC = 0V l 15 30 45 ns ILOAD = 1A, SYNC = 3.3V l 15 30 45 ns Minimum Off-Time 95 125 ns Oscillator Frequency RT = 221k, ILOAD = 1A (LT8610AC Only) l 180 210 240 kHz RT = 60.4k, ILOAD = 1A (LT8610AC Only) l 665 700 735 kHz RT = 18.2k, ILOAD = 1A (LT8610AC/LT8610AC-1) l 1.85 2.00 2.15 MHz Top Power NMOS On-Resistance ISW = 1A 120 mΩ Top Power NMOS Current Limit l 5 6.7 8 A Bottom Power NMOS On-Resistance VINTVCC = 3.4V, ISW = 1A 65 mΩ Bottom Power NMOS Current Limit VINTVCC = 3.4V 3.4 4.3 5.4 A SW Leakage Current VIN = 42V, VSW = 0V, 42V –1.5 1.5 µA EN/UV Pin Threshold EN/UV Rising l 0.955 1.015 1.075 V EN/UV Pin Hysteresis 50 mV EN/UV Pin Current VEN/UV = 2V –20 20 nA PG Upper Threshold Offset from VFB VFB Falling l 5 8.0 11 % PG Lower Threshold Offset from VFB VFB Rising l –11 –8.0 –5 % PG Hysteresis 0.4 % PG Leakage VPG = 3.3V –40 40 nA PG Pull-Down Resistance VPG = 0.1V l 680 2000 Ω SYNC Threshold SYNC Falling 0.8 1.1 1.4 V SYNC Rising 1.6 2.0 2.4 V TR/SS Source Current l 1.0 2.0 3.2 µA TR/SS Pull-Down Resistance Fault Condition, TR/SS = 0.1V 230 Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings operating junction temperature range. The LT8610ACH/LT8610ACH-1 is may cause permanent damage to the device. Exposure to any Absolute guaranteed over the full –40°C to 150°C operating junction temperature Maximum Rating condition for extended periods may affect device range. High junction temperatures degrade operating lifetimes. Operating reliability and lifetime. lifetime is derated at junction temperatures greater than 125°C.
