Datasheet LTC4100 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Smart Battery Charger Controller |
| Seiten / Seite | 30 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| Dateiformat / Größe | PDF / 328 Kb |
| Dokumentensprache | Englisch |

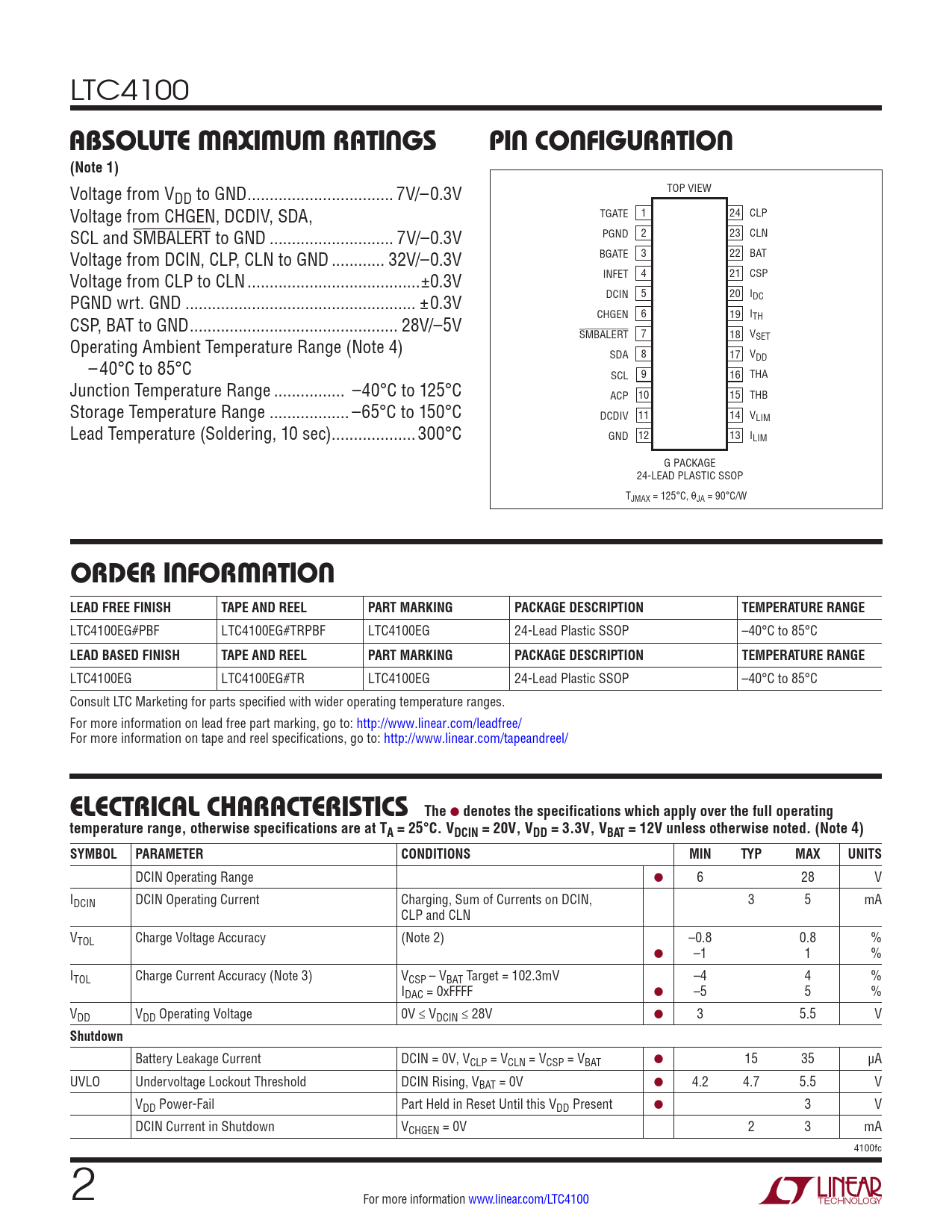

absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC4100
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Voltage from V TOP VIEW DD to GND ... 7V/–0.3V Voltage from CHGEN, DCDIV, SDA, TGATE 1 24 CLP SCL and SMBALERT to GND .. 7V/–0.3V PGND 2 23 CLN Voltage from DCIN, CLP, CLN to GND .. 32V/–0.3V BGATE 3 22 BAT Voltage from CLP to CLN ...±0.3V INFET 4 21 CSP PGND wrt. GND .. ±0.3V DCIN 5 20 IDC CSP, BAT to GND ... 28V/–5V CHGEN 6 19 ITH SMBALERT 7 18 V Operating Ambient Temperature Range (Note 4) SET SDA 8 17 V –40°C to 85°C DD SCL 9 16 THA Junction Temperature Range .. –40°C to 125°C ACP 10 15 THB Storage Temperature Range .. –65°C to 150°C DCDIV 11 14 VLIM Lead Temperature (Soldering, 10 sec) ...300°C GND 12 13 ILIM G PACKAGE 24-LEAD PLASTIC SSOP TJMAX = 125°C, θJA = 90°C/W
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4100EG#PBF LTC4100EG#TRPBF LTC4100EG 24-Lead Plastic SSOP –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4100EG LTC4100EG#TR LTC4100EG 24-Lead Plastic SSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
