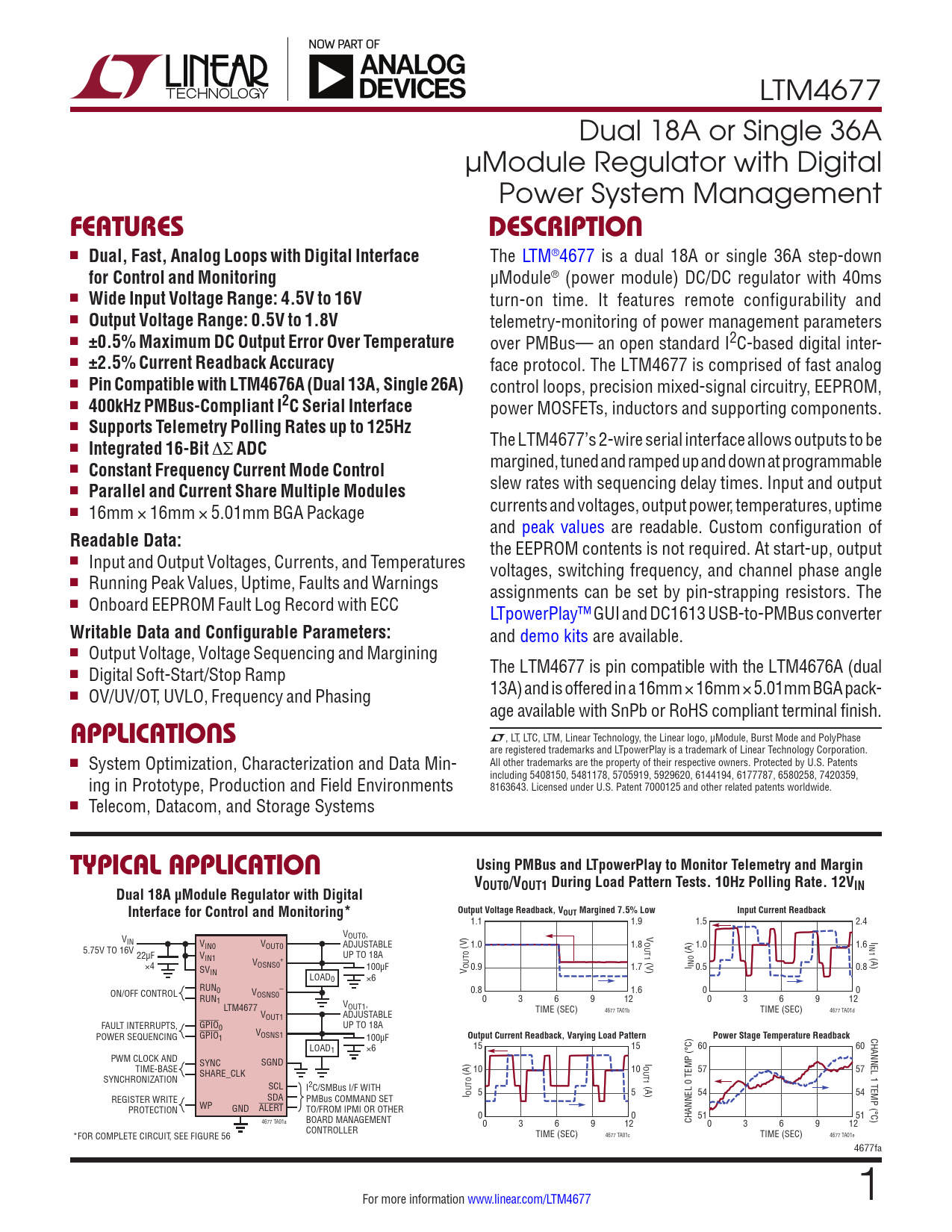

link to page 28 LTM4677 Dual 18A or Single 36A µModule Regulator with Digital Power System Management
FeaTures DescripTion
n
Dual, Fast, Analog Loops with Digital Interface
The LTM®4677 is a dual 18A or single 36A step-down
for Control and Monitoring
µModule® (power module) DC/DC regulator with 40ms n
Wide Input Voltage Range: 4.5V to 16V
turn-on time. It features remote configurability and n
Output Voltage Range: 0.5V to 1.8V
telemetry-monitoring of power management parameters n
±0.5% Maximum DC Output Error Over Temperature
over PMBus— an open standard I2C-based digital inter- n
±2.5% Current Readback Accuracy
face protocol. The LTM4677 is comprised of fast analog n
Pin Compatible with LTM4676A (Dual 13A, Single 26A)
control loops, precision mixed-signal circuitry, EEPROM, n
400kHz PMBus-Compliant I2C Serial Interface
power MOSFETs, inductors and supporting components. n
Supports Telemetry Polling Rates up to 125Hz
n The LTM4677’s 2-wire serial interface allows outputs to be
Integrated 16-Bit
∆Σ
ADC
n margined, tuned and ramped up and down at programmable
Constant Frequency Current Mode Control
n slew rates with sequencing delay times. Input and output
Parallel and Current Share Multiple Modules
n currents and voltages, output power, temperatures, uptime 16mm × 16mm × 5.01mm BGA Package and peak values are readable. Custom configuration of
Readable Data:
the EEPROM contents is not required. At start-up, output n Input and Output Voltages, Currents, and Temperatures voltages, switching frequency, and channel phase angle n Running Peak Values, Uptime, Faults and Warnings assignments can be set by pin-strapping resistors. The n Onboard EEPROM Fault Log Record with ECC LTpowerPlay™ GUI and DC1613 USB-to-PMBus converter
Writable Data and Configurable Parameters:
and demo kits are available. n Output Voltage, Voltage Sequencing and Margining n The LTM4677 is pin compatible with the LTM4676A (dual Digital Soft-Start/Stop Ramp n 13A) and is offered in a 16mm × 16mm × 5.01mm BGA pack- OV/UV/OT, UVLO, Frequency and Phasing age available with SnPb or RoHS compliant terminal finish.
applicaTions
L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule, Burst Mode and PolyPhase are registered trademarks and LTpowerPlay is a trademark of Linear Technology Corporation. n System Optimization, Characterization and Data Min- All other trademarks are the property of their respective owners. Protected by U.S. Patents ing in Prototype, Production and Field Environments including 5408150, 5481178, 5705919, 5929620, 6144194, 6177787, 6580258, 7420359, 8163643. Licensed under U.S. Patent 7000125 and other related patents worldwide. n Telecom, Datacom, and Storage Systems
Typical applicaTion Using PMBus and LTpowerPlay to Monitor Telemetry and Margin V Dual 18A µModule Regulator with Digital OUT0/VOUT1 During Load Pattern Tests. 10Hz Polling Rate. 12VIN Interface for Control and Monitoring* Output Voltage Readback, VOUT Margined 7.5% Low Input Current Readback
