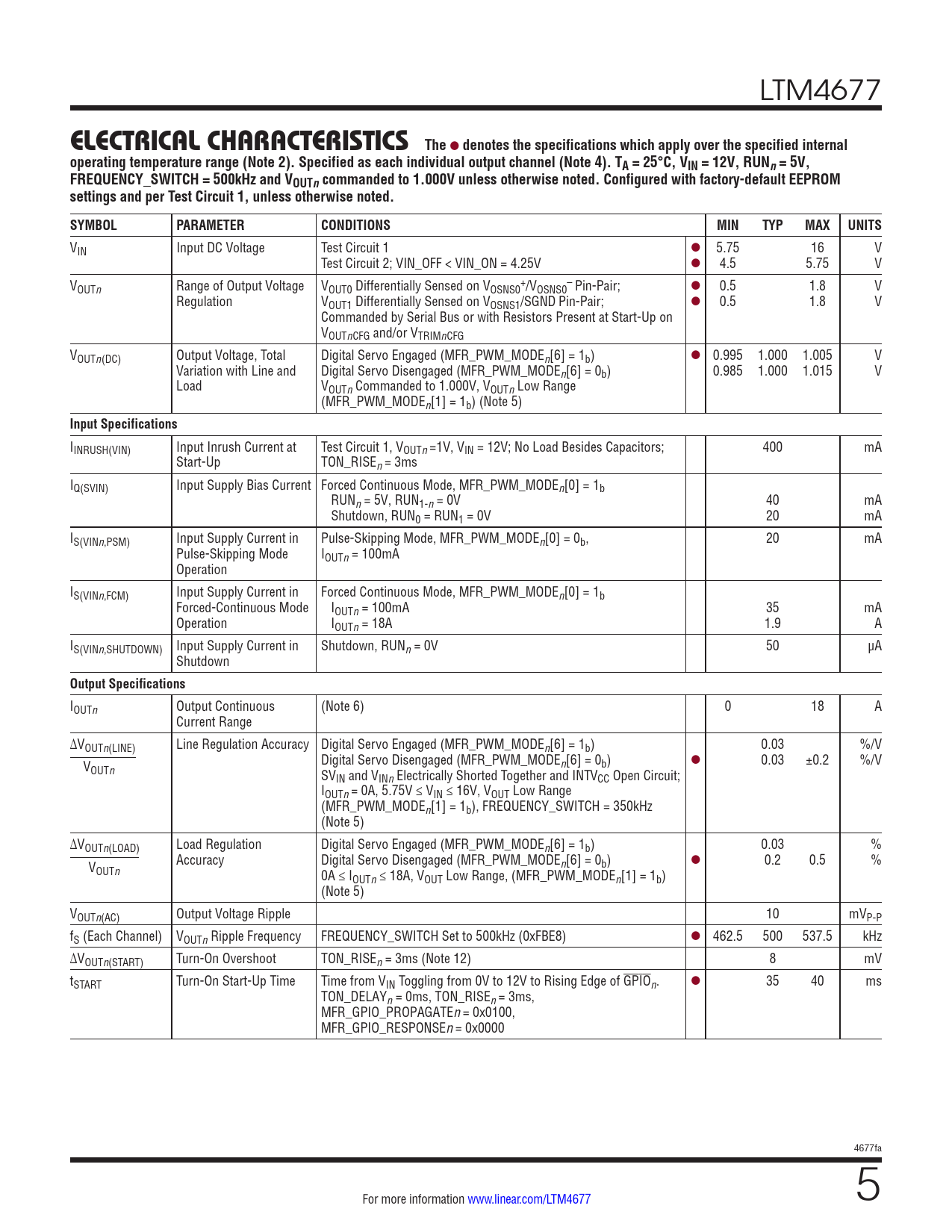

elecTrical characTerisTics. The. denotes the specifications which apply over the specified internal

elecTrical characTerisTics The denotes the specifications which apply over the specified internal

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LTM4677
elecTrical characTerisTics The
l
denotes the specifications which apply over the specified internal operating temperature range (Note 2). Specified as each individual output channel (Note 4). TA = 25°C, VIN = 12V, RUNn = 5V, FREQUENCY_SWITCH = 500kHz and VOUTn commanded to 1.000V unless otherwise noted. Configured with factory-default EEPROM settings and per Test Circuit 1, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Input DC Voltage Test Circuit 1 l 5.75 16 V Test Circuit 2; VIN_OFF < VIN_ON = 4.25V l 4.5 5.75 V V + – OUTn Range of Output Voltage VOUT0 Differentially Sensed on VOSNS0 /VOSNS0 Pin-Pair; l 0.5 1.8 V Regulation VOUT1 Differentially Sensed on VOSNS1/SGND Pin-Pair; l 0.5 1.8 V Commanded by Serial Bus or with Resistors Present at Start-Up on VOUTnCFG and/or VTRIMnCFG VOUTn(DC) Output Voltage, Total Digital Servo Engaged (MFR_PWM_MODEn[6] = 1b) l 0.995 1.000 1.005 V Variation with Line and Digital Servo Disengaged (MFR_PWM_MODEn[6] = 0b) 0.985 1.000 1.015 V Load VOUTn Commanded to 1.000V, VOUTn Low Range (MFR_PWM_MODEn[1] = 1b) (Note 5)
