Datasheet AD5750, AD5750-1, AD5750-2 (Analog Devices)

HerstellerAnalog Devices
BeschreibungIndustrial Current/Voltage Output Driver with Programmable Ranges
Seiten / Seite36 / 1 — Industrial Current/Voltage Output Driver. with Programmable Ranges. Data …
Dateiformat / GrößePDF / 831 Kb

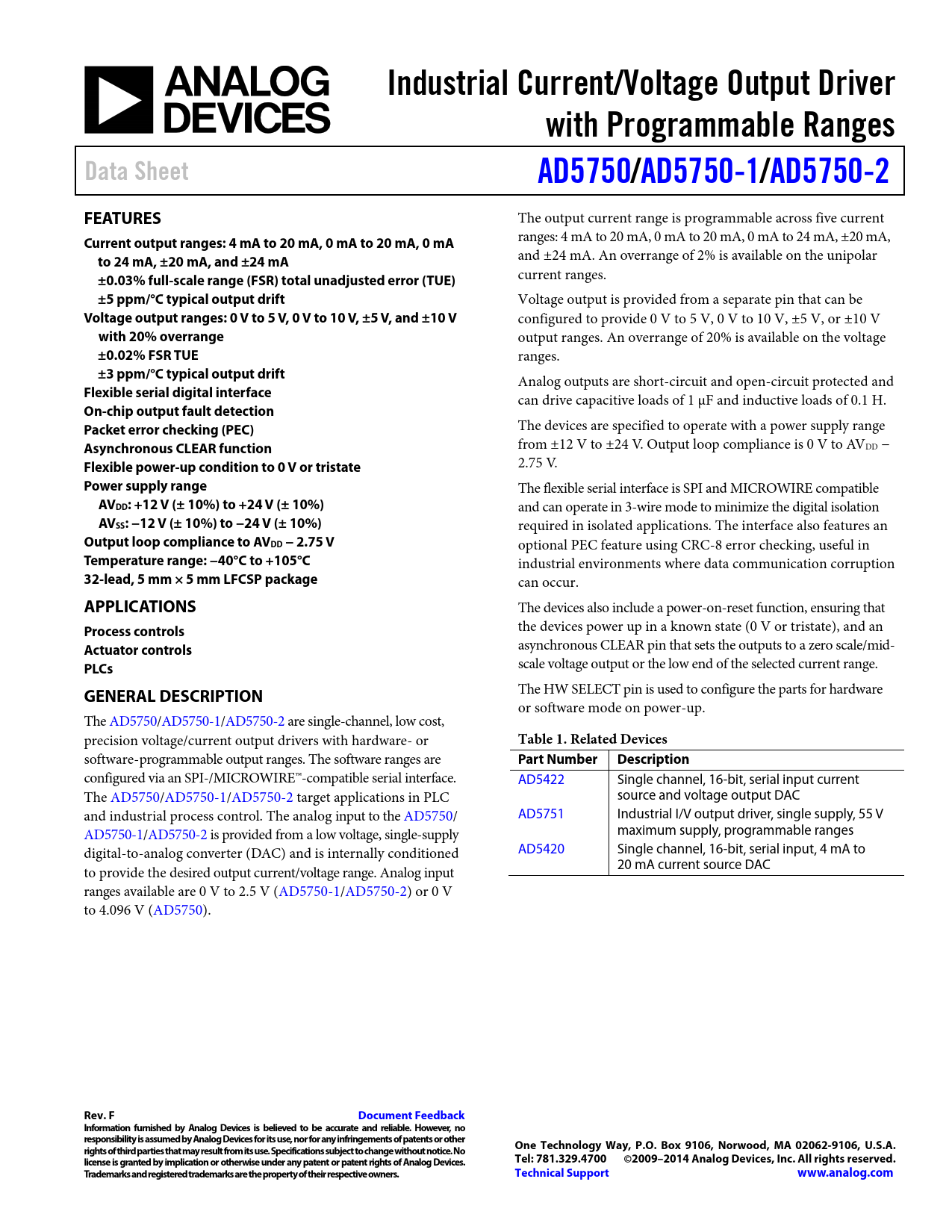

Industrial Current/Voltage Output Driver. with Programmable Ranges. Data Sheet. AD5750/. AD5750-1/. AD5750-2. FEATURES

Datasheet AD5750, AD5750-1, AD5750-2 Analog Devices, Revision: F

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Industrial Current/Voltage Output Driver with Programmable Ranges Data Sheet AD5750/ AD5750-1/ AD5750-2 FEATURES
The output current range is programmable across five current
Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA
ranges: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA to 24 mA, ±20 mA,
to 24 mA, ±20 mA, and ±24 mA
and ±24 mA. An overrange of 2% is available on the unipolar
±0.03% full-scale range (FSR) total unadjusted error (TUE)
current ranges.
±5 ppm/°C typical output drift
Voltage output is provided from a separate pin that can be
Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V
configured to provide 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V
with 20% overrange
output ranges. An overrange of 20% is available on the voltage
±0.02% FSR TUE
±3 ppm/°C typical output drift
Analog outputs are short-circuit and open-circuit protected and
Flexible serial digital interface
can drive capacitive loads of 1 µF and inductive loads of 0.1 H.
On-chip output fault detection Packet error checking (PEC)
The devices are specified to operate with a power supply range
Asynchronous CLEAR function
from ±12 V to ±24 V. Output loop compliance is 0 V to AVDD −
Flexible power-up condition to 0 V or tristate
2.75 V.
Power supply range
The flexible serial interface is SPI and MICROWIRE compatible
AVDD: +12 V (± 10%) to +24 V (± 10%)
and can operate in 3-wire mode to minimize the digital isolation
AVSS: −12 V (± 10%) to −24 V (± 10%)
required in isolated applications. The interface also features an
Output loop compliance to AVDD − 2.75 V
optional PEC feature using CRC-8 error checking, useful in
Temperature range: −40°C to +105°C
industrial environments where data communication corruption
32-lead, 5 mm × 5 mm LFCSP package
can occur.
The devices also include a power-on-reset function, ensuring that
Process controls
the devices power up in a known state (0 V or tristate), and an
Actuator controls
asynchronous CLEAR pin that sets the outputs to a zero scale/mid-
scale voltage output or the low end of the selected current range.
The HW SELECT pin is used to configure the parts for hardware or software mode on power-up. The AD5750/AD5750-1/AD5750-2 are single-channel, low cost, precision voltage/current output drivers with hardware- or
Table 1. Related Devices
software-programmable output ranges. The software ranges are
Part Number Description
configured via an SPI-/MICROWIRE™-compatible serial interface. AD5422 Single channel, 16-bit, serial input current The AD5750/AD5750-1/AD5750-2 target applications in PLC source and voltage output DAC and industrial process control. The analog input to the AD5750/ AD5751 Industrial I/V output driver, single supply, 55 V AD5750-1/AD5750-2 is provided from a low voltage, single-supply maximum supply, programmable ranges digital-to-analog converter (DAC) and is internally conditioned AD5420 Single channel, 16-bit, serial input, 4 mA to to provide the desired output current/voltage range. Analog input 20 mA current source DAC ranges available are 0 V to 2.5 V (AD5750-1/AD5750-2) or 0 V to 4.096 V (AD5750).
Rev. F Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2009–2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support
