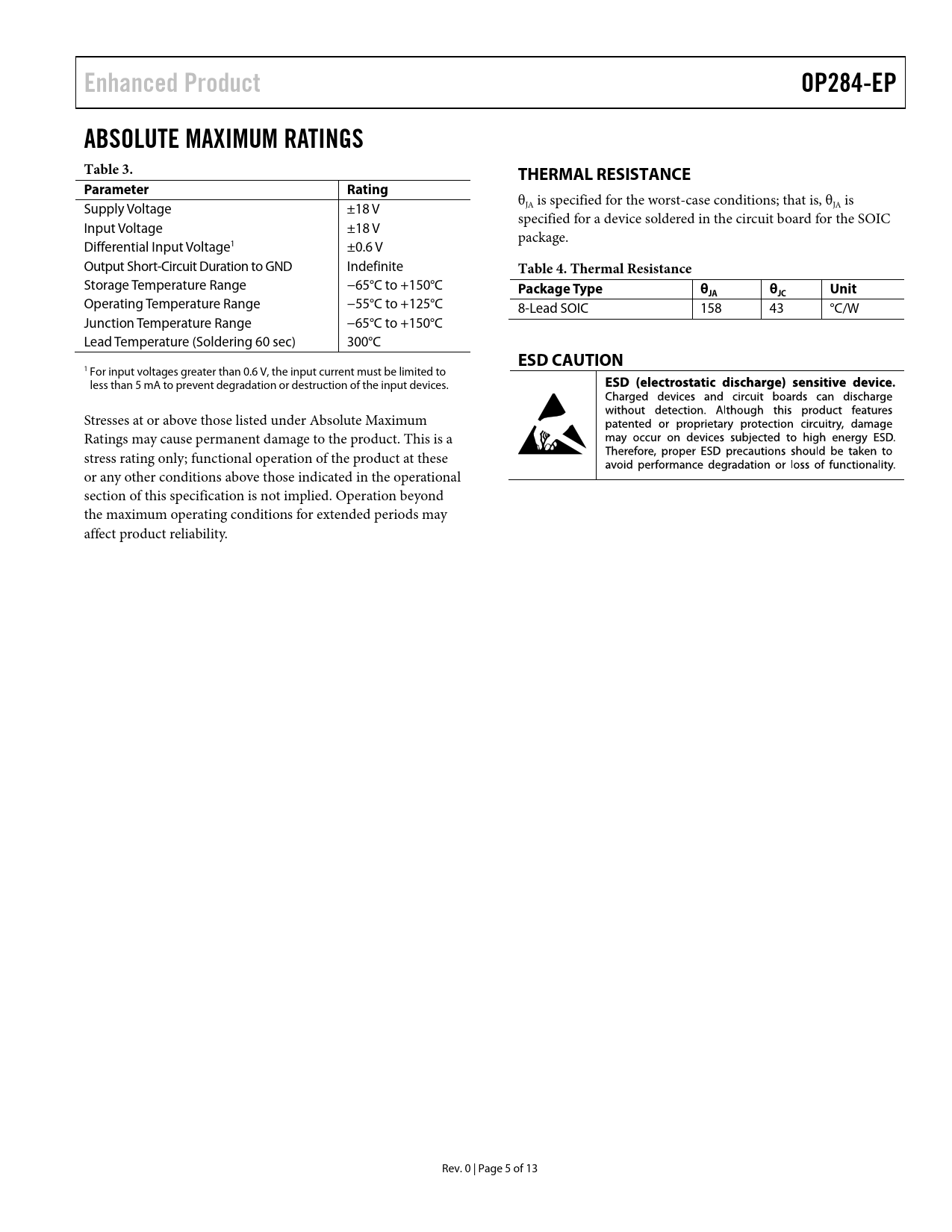

Datasheet OP284-EP (Analog Devices) - 5

Enhanced Product OP284-EP ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θ Supply Voltage ±18 V JA is specified for the worst-case conditions; that is, θJA is specified for a device soldered in the circuit board for the SOIC Input Voltage ±18 V package. Differential Input Voltage1 ±0.6 V Output Short-Circuit Duration to GND Indefinite
Table 4. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θ θ Unit JA JC
Operating Temperature Range −55°C to +125°C 8-Lead SOIC 158 43 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C
ESD CAUTION
1 For input voltages greater than 0.6 V, the input current must be limited to less than 5 mA to prevent degradation or destruction of the input devices. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 13 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
