Datasheet AD8672 (Analog Devices) - 4

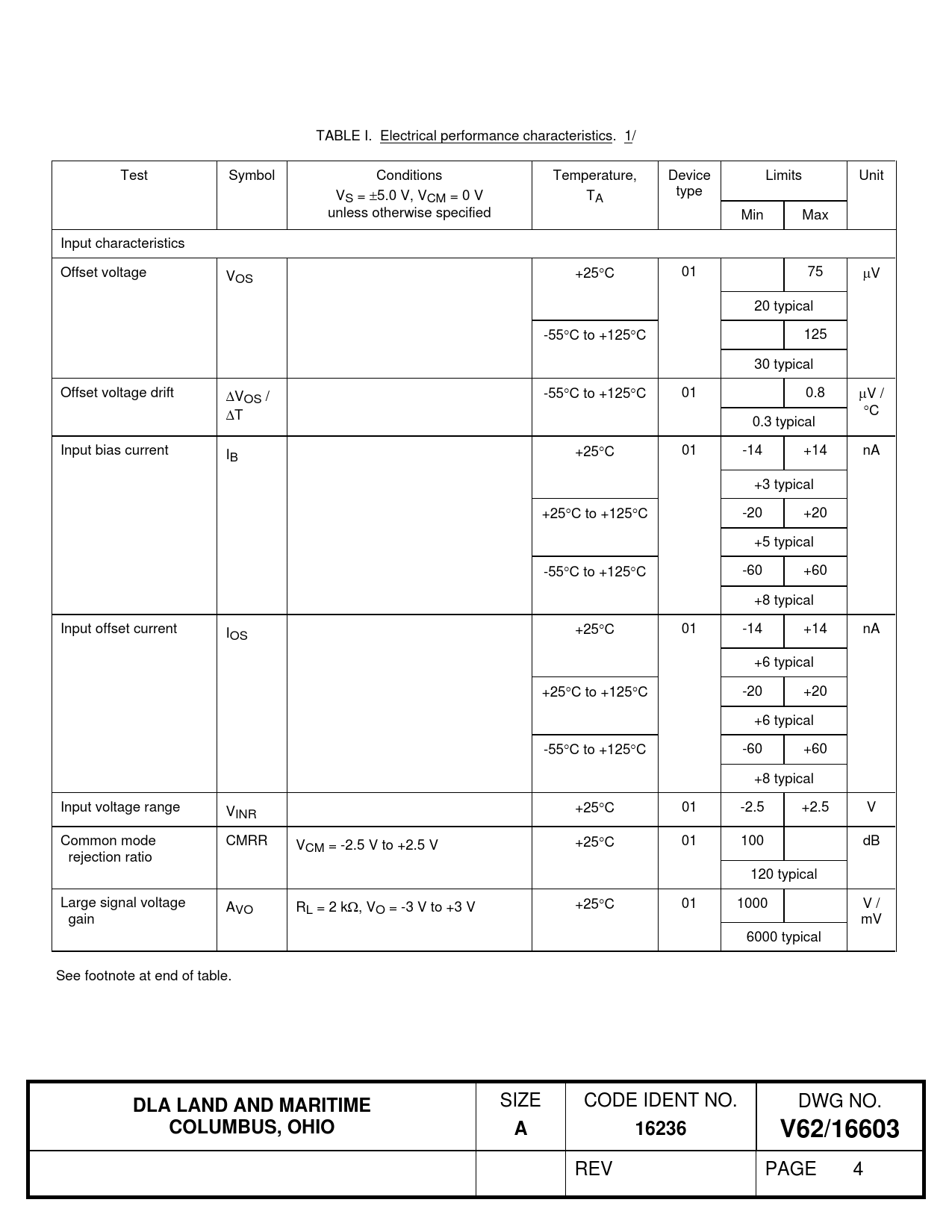

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions Temperature, Device Limits Unit V type S = 5.0 V, VCM = 0 V TA unless otherwise specified Min Max Input characteristics Offset voltage VOS +25C 01 75 V 20 typical -55C to +125C 125 30 typical Offset voltage drift V -55C to +125C 01 0.8 V / OS / T C 0.3 typical Input bias current IB +25C 01 -14 +14 nA +3 typical +25C to +125C -20 +20 +5 typical -55C to +125C -60 +60 +8 typical Input offset current IOS +25C 01 -14 +14 nA +6 typical +25C to +125C -20 +20 +6 typical -55C to +125C -60 +60 +8 typical Input voltage range VINR +25C 01 -2.5 +2.5 V Common mode CMRR VCM = -2.5 V to +2.5 V +25C 01 100 dB rejection ratio 120 typical Large signal voltage AVO RL = 2 k, VO = -3 V to +3 V +25C 01 1000 V / gain mV 6000 typical See footnote at end of table.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16603
REV PAGE 4
