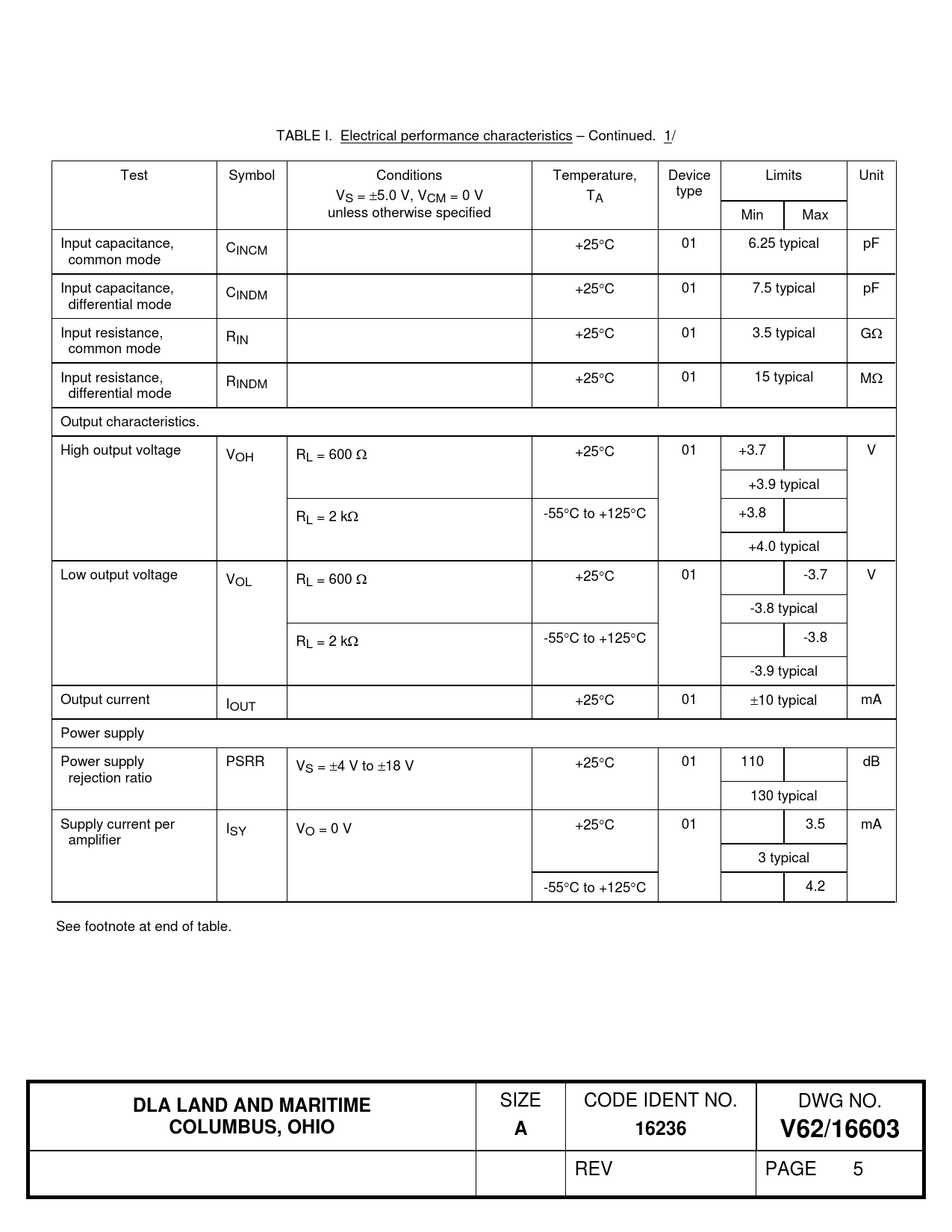

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit V type S = 5.0 V, VCM = 0 V TA unless otherwise specified Min Max Input capacitance, CINCM +25C 01 6.25 typical pF common mode Input capacitance, CINDM +25C 01 7.5 typical pF differential mode Input resistance, RIN +25C 01 3.5 typical G common mode Input resistance, RINDM +25C 01 15 typical M differential mode Output characteristics. High output voltage VOH RL = 600 +25C 01 +3.7 V +3.9 typical RL = 2 k -55C to +125C +3.8 +4.0 typical Low output voltage VOL RL = 600 +25C 01 -3.7 V -3.8 typical RL = 2 k -55C to +125C -3.8 -3.9 typical Output current IOUT +25C 01 10 typical mA Power supply Power supply PSRR VS = 4 V to 18 V +25C 01 110 dB rejection ratio 130 typical Supply current per ISY VO = 0 V +25C 01 3.5 mA amplifier 3 typical -55C to +125C 4.2 See footnote at end of table.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16603
REV PAGE 5
