LF411. JFET-INPUT OPERATIONAL AMPLIFIER. operating characteristics, VCC. 15 V, TA = 25. PARAMETER. TEST CONDITIONS. MIN. TYP. MAX. UNIT
Modelllinie für dieses Datenblatt
Textversion des Dokuments

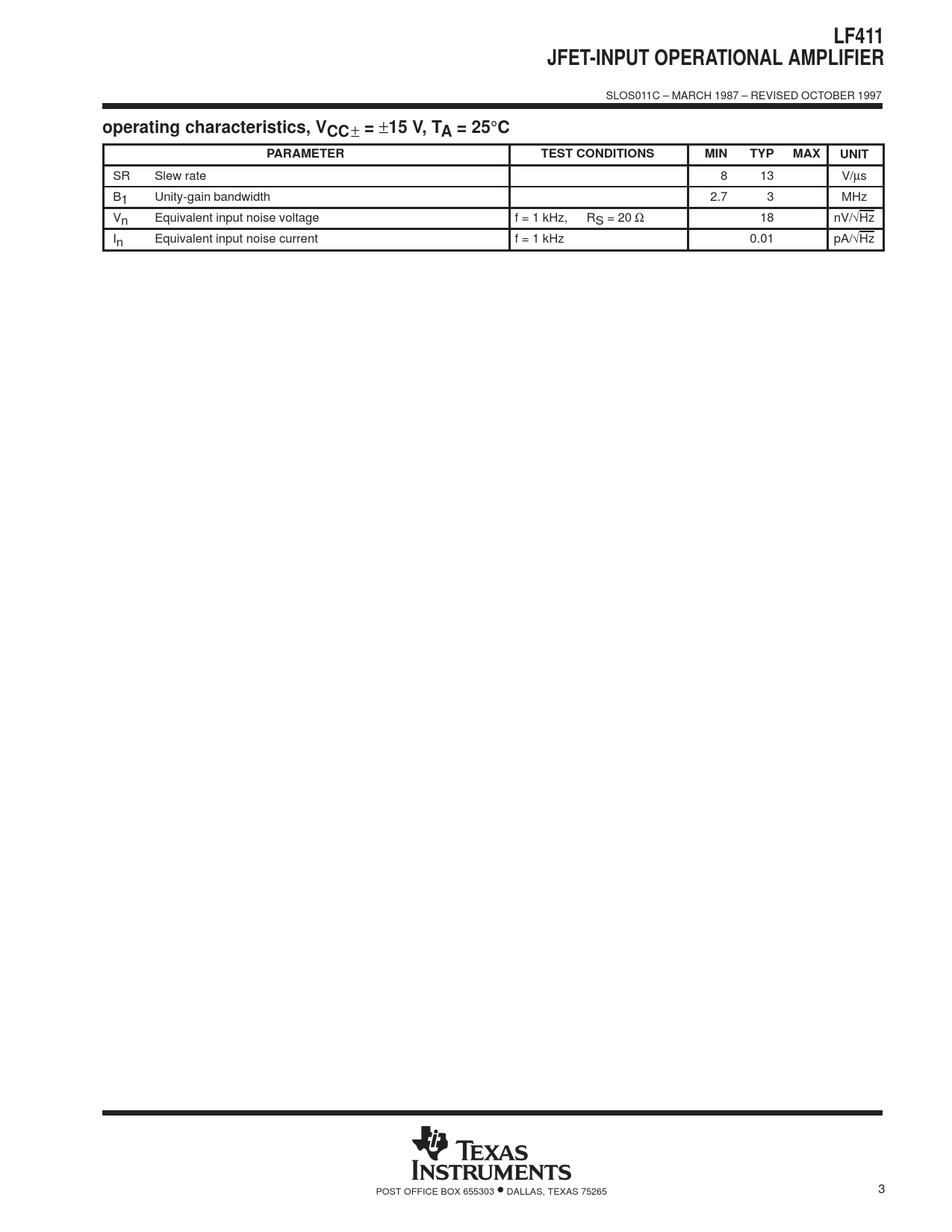

LF411 JFET-INPUT OPERATIONAL AMPLIFIER
SLOS011C – MARCH 1987 – REVISED OCTOBER 1997
operating characteristics, VCC
±
=
±
15 V, TA = 25
°
C PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SR Slew rate 8 13 V/µs B1 Unity-gain bandwidth 2.7 3 MHz Vn Equivalent input noise voltage f = 1 kHz, RS = 20 Ω 18 nV/√Hz In Equivalent input noise current f = 1 kHz 0.01 pA/√Hz POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 3
SLOS011C – MARCH 1987 – REVISED OCTOBER 1997
operating characteristics, VCC
±
=
±
15 V, TA = 25
°
C PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SR Slew rate 8 13 V/µs B1 Unity-gain bandwidth 2.7 3 MHz Vn Equivalent input noise voltage f = 1 kHz, RS = 20 Ω 18 nV/√Hz In Equivalent input noise current f = 1 kHz 0.01 pA/√Hz POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 3
