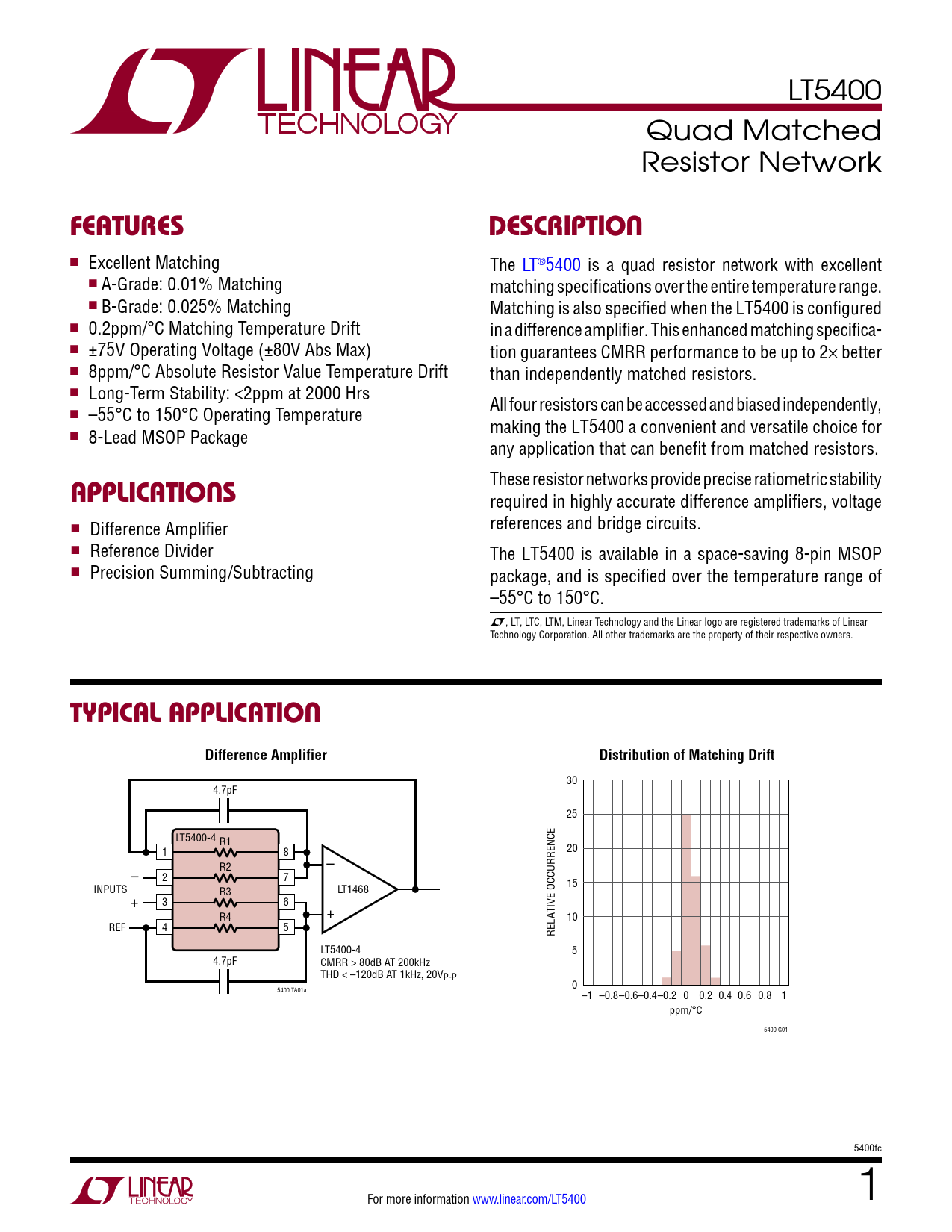

LT5400 Quad Matched Resistor Network
FeaTures DescripTion
n Excellent Matching The LT®5400 is a quad resistor network with excellent n A-Grade: 0.01% Matching matching specifications over the entire temperature range. n B-Grade: 0.025% Matching Matching is also specified when the LT5400 is configured n 0.2ppm/°C Matching Temperature Drift in a difference amplifier. This enhanced matching specifica- n ±75V Operating Voltage (±80V Abs Max) tion guarantees CMRR performance to be up to 2× better n 8ppm/°C Absolute Resistor Value Temperature Drift than independently matched resistors. n Long-Term Stability: <2ppm at 2000 Hrs All four resistors can be accessed and biased independently, n –55°C to 150°C Operating Temperature making the LT5400 a convenient and versatile choice for n 8-Lead MSOP Package any application that can benefit from matched resistors. These resistor networks provide precise ratiometric stability
applicaTions
required in highly accurate difference amplifiers, voltage n references and bridge circuits. Difference Amplifier n Reference Divider The LT5400 is available in a space-saving 8-pin MSOP n Precision Summing /Subtracting package, and is specified over the temperature range of –55°C to 150°C. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Typical applicaTion Difference Amplifier Distribution of Matching Drift
30 4.7pF 25 LT5400-4 R1 1 8 20 R2 – – 2 7 INPUTS 15 R3 LT1468 + 3 6 R4 + 10 REF 4 5 RELATIVE OCCURRENCE LT5400-4 5 4.7pF CMRR > 80dB AT 200kHz THD < –120dB AT 1kHz, 20VP-P 0 5400 TA01a –1 –0.8–0.6–0.4–0.2 0 0.2 0.4 0.6 0.8 1 ppm/°C 5400 G01 5400fc For more information www.linear.com/LT5400 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
