Datasheet AD8676 (Analog Devices) - 5

HerstellerAnalog Devices
BeschreibungUltra Precision, 36 V, 2.8 nV/√Hz Dual RRO Op Amp
Seiten / Seite12 / 5 — Data Sheet. AD8676. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table …
RevisionC
Dateiformat / GrößePDF / 345 Kb
DokumentenspracheEnglisch

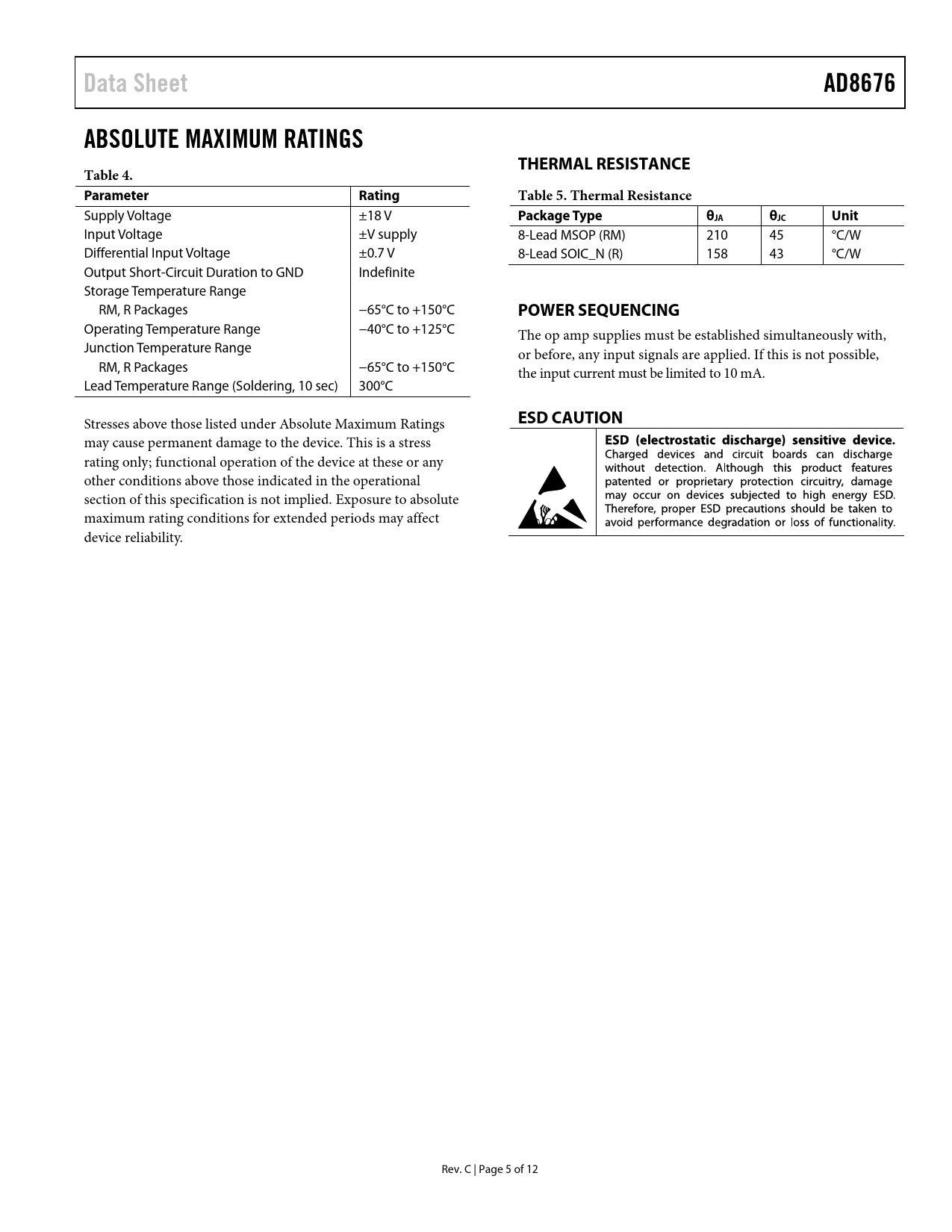

Data Sheet. AD8676. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter Rating. Table 5. Thermal Resistance

Data Sheet AD8676 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4 Parameter Rating Table 5 Thermal Resistance

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Data Sheet AD8676 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating Table 5. Thermal Resistance
Supply Voltage ±18 V
Package Type θJA θJC Unit
Input Voltage ±V supply 8-Lead MSOP (RM) 210 45 °C/W Differential Input Voltage ±0.7 V 8-Lead SOIC_N (R) 158 43 °C/W Output Short-Circuit Duration to GND Indefinite Storage Temperature Range RM, R Packages −65°C to +150°C
POWER SEQUENCING
Operating Temperature Range −40°C to +125°C The op amp supplies must be established simultaneously with, Junction Temperature Range or before, any input signals are applied. If this is not possible, RM, R Packages −65°C to +150°C the input current must be limited to 10 mA. Lead Temperature Range (Soldering, 10 sec) 300°C
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. C | Page 5 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
