Beschreibung16-Bit, 2 LSB INL, 3 MSPS PulSAR® ADC
Seiten / Seite32 / 1 — 16-Bit, 2 LSB INL, 3 MSPS PulSAR® ADC. AD7621. FEATURES. FUNCTIONAL BLOCK …
Dateiformat / GrößePDF / 627 Kb
DokumentenspracheEnglisch

16-Bit, 2 LSB INL, 3 MSPS PulSAR® ADC. AD7621. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Throughput. TEMP REFBUFIN REF REFGND. DVDD DGND

Datasheet AD7621 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

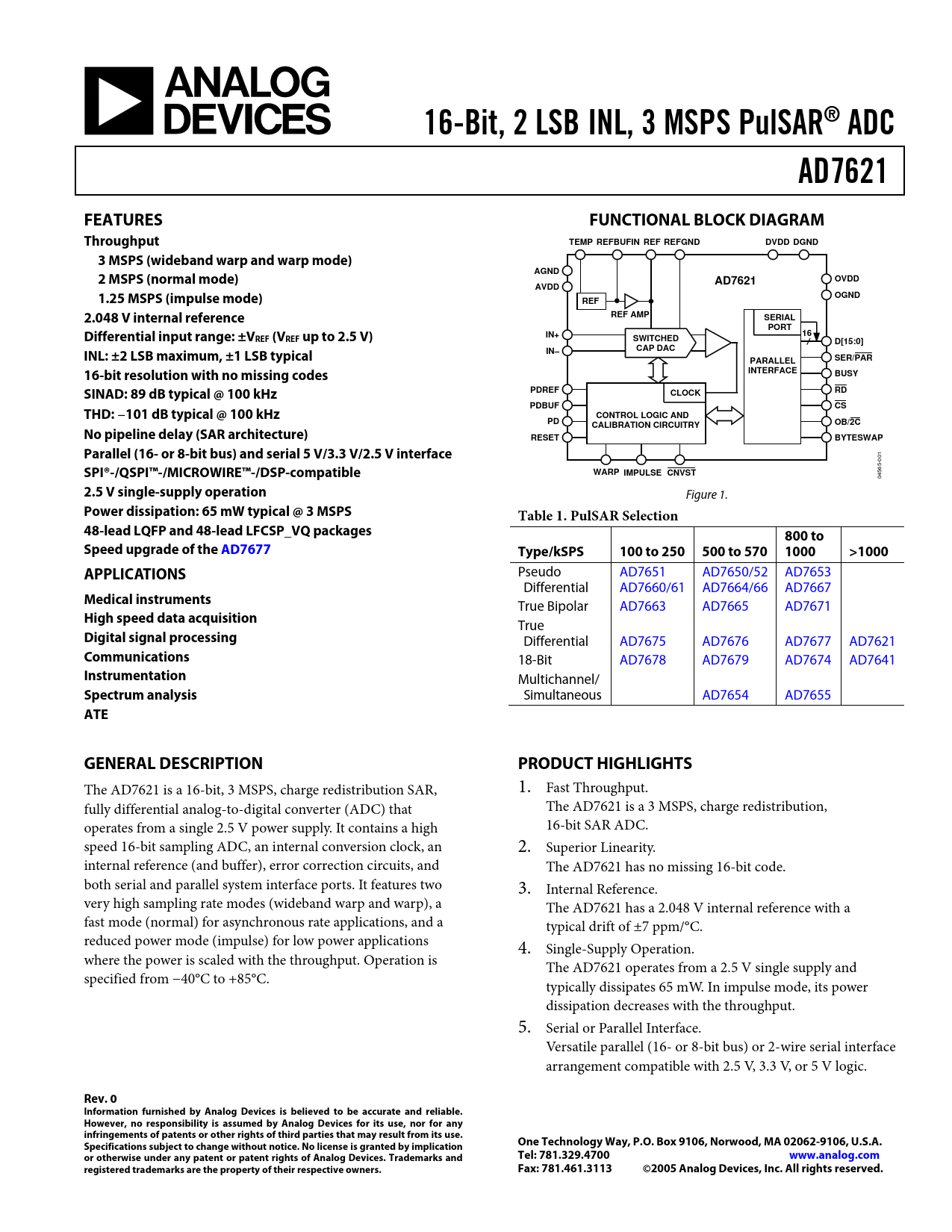

16-Bit, 2 LSB INL, 3 MSPS PulSAR® ADC AD7621 FEATURES FUNCTIONAL BLOCK DIAGRAM Throughput TEMP REFBUFIN REF REFGND DVDD DGND 3 MSPS (wideband warp and warp mode) AGND 2 MSPS (normal mode) AD7621 OVDD AVDD 1.25 MSPS (impulse mode) OGND REF 2.048 V internal reference REF AMP SERIAL PORT Differential input range: ±V 16 IN+ REF (VREF up to 2.5 V) SWITCHED D[15:0] CAP DAC INL: ±2 LSB maximum, ±1 LSB typical IN– SER/PAR PARALLEL 16-bit resolution with no missing codes INTERFACE BUSY SINAD: 89 dB typical @ 100 kHz PDREF CLOCK RD PDBUF CS THD: −101 dB typical @ 100 kHz CONTROL LOGIC AND PD CALIBRATION CIRCUITRY OB/2C No pipeline delay (SAR architecture) RESET BYTESWAP Parallel (16- or 8-bit bus) and serial 5 V/3.3 V/2.5 V interface
001
SPI®-/QSPI™-/MICROWIRE™-/DSP-compatible WARP IMPULSE CNVST
04565-
2.5 V single-supply operation
Figure 1.
Power dissipation: 65 mW typical @ 3 MSPS Table 1. PulSAR Selection 48-lead LQFP and 48-lead LFCSP_VQ packages 800 to Speed upgrade of the AD7677 Type/kSPS 100 to 250 500 to 570 1000 >1000 APPLICATIONS
Pseudo AD7651 AD7650/52 AD7653 Differential AD7660/61 AD7664/66 AD7667
Medical instruments
True Bipolar AD7663 AD7665 AD7671
High speed data acquisition
True
Digital signal processing
Differential AD7675 AD7676 AD7677 AD7621
Communications
18-Bit AD7678 AD7679 AD7674 AD7641
Instrumentation
Multichannel/
Spectrum analysis
Simultaneous AD7654 AD7655
ATE GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The AD7621 is a 16-bit, 3 MSPS, charge redistribution SAR, 1. Fast Throughput. fully differential analog-to-digital converter (ADC) that The AD7621 is a 3 MSPS, charge redistribution, operates from a single 2.5 V power supply. It contains a high 16-bit SAR ADC. speed 16-bit sampling ADC, an internal conversion clock, an 2. Superior Linearity. internal reference (and buffer), error correction circuits, and The AD7621 has no missing 16-bit code. both serial and parallel system interface ports. It features two 3. Internal Reference. very high sampling rate modes (wideband warp and warp), a The AD7621 has a 2.048 V internal reference with a fast mode (normal) for asynchronous rate applications, and a typical drift of ±7 ppm/°C. reduced power mode (impulse) for low power applications 4. Single-Supply Operation. where the power is scaled with the throughput. Operation is The AD7621 operates from a 2.5 V single supply and specified from −40°C to +85°C. typically dissipates 65 mW. In impulse mode, its power dissipation decreases with t e h throughput. 5. Serial or Parallel Interface. Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.
