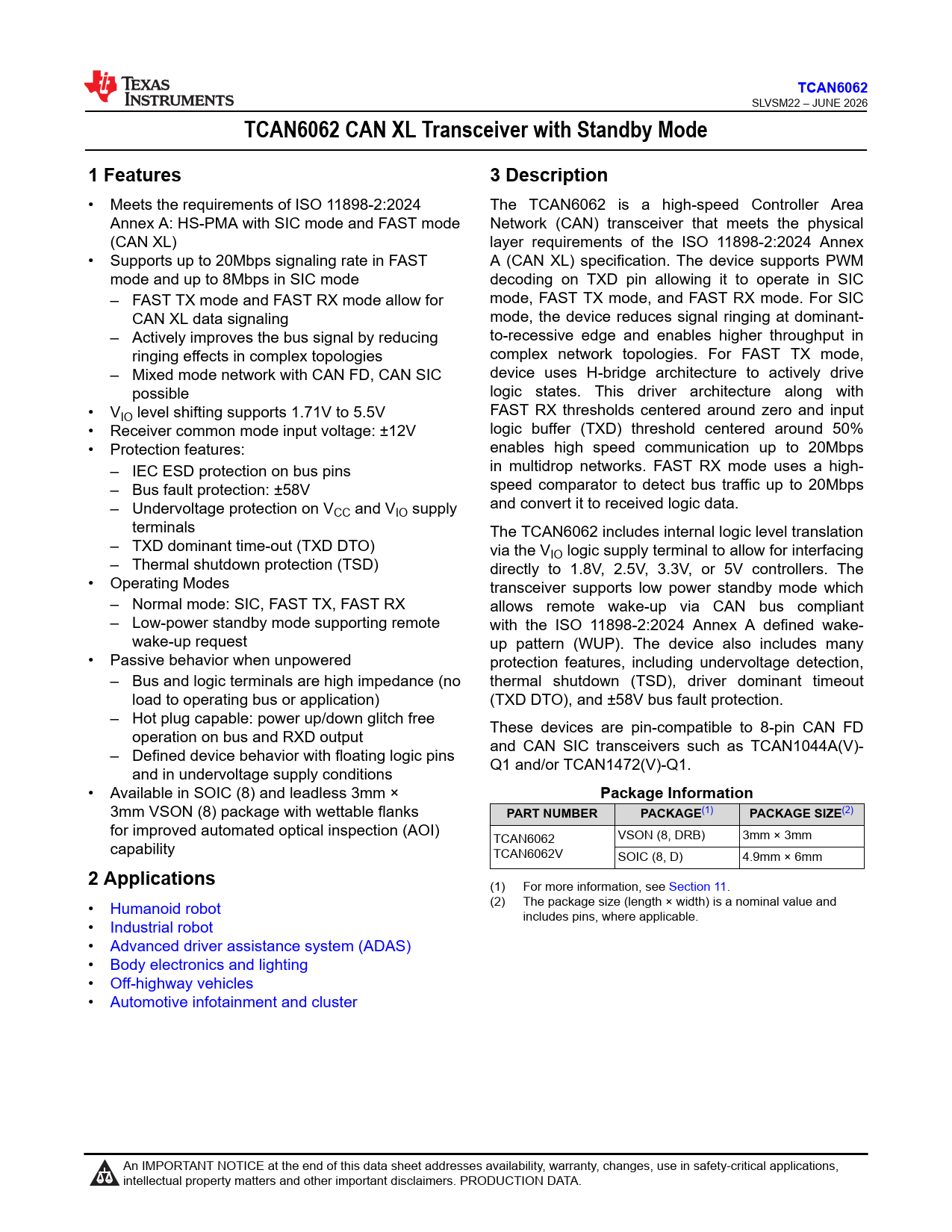

TCAN6062
SLVSM22 – JUNE 2026
TCAN6062 CAN XL Transceiver with Standby Mode 1 Features 3 Description
• Meets the requirements of ISO 11898-2:2024 The TCAN6062 is a high-speed Controller Area Annex A: HS-PMA with SIC mode and FAST mode Network (CAN) transceiver that meets the physical (CAN XL) layer requirements of the ISO 11898-2:2024 Annex • Supports up to 20Mbps signaling rate in FAST A (CAN XL) specification. The device supports PWM mode and up to 8Mbps in SIC mode decoding on TXD pin allowing it to operate in SIC – FAST TX mode and FAST RX mode allow for mode, FAST TX mode, and FAST RX mode. For SIC CAN XL data signaling mode, the device reduces signal ringing at dominant- – Actively improves the bus signal by reducing to-recessive edge and enables higher throughput in ringing effects in complex topologies complex network topologies. For FAST TX mode, – Mixed mode network with CAN FD, CAN SIC device uses H-bridge architecture to actively drive possible logic states. This driver architecture along with • V FAST RX thresholds centered around zero and input IO level shifting supports 1.71V to 5.5V • Receiver common mode input voltage: ±12V logic buffer (TXD) threshold centered around 50% • Protection features: enables high speed communication up to 20Mbps – IEC ESD protection on bus pins in multidrop networks. FAST RX mode uses a high- – Bus fault protection: ±58V speed comparator to detect bus traffic up to 20Mbps – Undervoltage protection on V and convert it to received logic data. CC and VIO supply terminals The TCAN6062 includes internal logic level translation – TXD dominant time-out (TXD DTO) via the VIO logic supply terminal to allow for interfacing – Thermal shutdown protection (TSD) directly to 1.8V, 2.5V, 3.3V, or 5V controllers. The • Operating Modes transceiver supports low power standby mode which – Normal mode: SIC, FAST TX, FAST RX allows remote wake-up via CAN bus compliant – Low-power standby mode supporting remote with the ISO 11898-2:2024 Annex A defined wake- wake-up request up pattern (WUP). The device also includes many • Passive behavior when unpowered protection features, including undervoltage detection, – Bus and logic terminals are high impedance (no thermal shutdown (TSD), driver dominant timeout load to operating bus or application) (TXD DTO), and ±58V bus fault protection. – Hot plug capable: power up/down glitch free These devices are pin-compatible to 8-pin CAN FD operation on bus and RXD output and CAN SIC transceivers such as TCAN1044A(V)- – Defined device behavior with floating logic pins Q1 and/or TCAN1472(V)-Q1. and in undervoltage supply conditions • Available in SOIC (8) and leadless 3mm ×
Package Information
3mm VSON (8) package with wettable flanks
PART NUMBER PACKAGE
(1)
PACKAGE SIZE
(2) for improved automated optical inspection (AOI) TCAN6062 VSON (8, DRB) 3mm × 3mm capability TCAN6062V SOIC (8, D) 4.9mm × 6mm
2 Applications
(1) For more information, see Section 11. • Humanoid robot (2) The package size (length × width) is a nominal value and includes pins, where applicable. • Industrial robot • Advanced driver assistance system (ADAS) • Body electronics and lighting • Off-highway vehicles • Automotive infotainment and cluster An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Pin Configurations and Functions 5 Specifications 5.1 Absolute Maximum Ratings 5.2 ESD Ratings 5.3 ESD Ratings, IEC Transients 5.4 Recommended Operating Conditions 5.5 Thermal Characteristics 5.6 Supply Characteristics 5.7 Dissipation Ratings 5.8 Electrical Characteristics 5.9 Switching Characteristics 5.10 Typical Characteristics 6 Parameter Measurement Information 7 Detailed Description 7.1 Overview 7.1.1 Signal Improvement Capability 7.1.2 CAN XL and FAST Mode 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Pin Description 7.3.1.1 TXD 7.3.1.2 GND 7.3.1.3 VCC 7.3.1.4 RXD 7.3.1.5 VIO (only for TCAN6062V) 7.3.1.6 CANH and CANL 7.3.1.7 STB (Standby) 7.3.2 CAN Bus States 7.3.3 Pulse-Width Modulation (PWM) for FAST Mode Signaling 7.3.3.1 PWM Detection and Timing 7.3.3.2 Transition from SIC Mode to FAST RX Mode 7.3.3.3 Transition from SIC Mode to FAST TX Mode 7.3.3.4 PWM Decoding 7.3.3.4.1 PWM Detection Resolution tDECODE 7.3.3.4.2 PWM Decoding in FAST RX Mode 7.3.3.4.3 PWM Decoding in FAST TX Mode 7.3.3.5 Transition from FAST RX/TX Modes to SIC Mode 7.3.4 Out-of-Bounds (OOB) Comparator 7.3.5 TXD Dominant Timeout (DTO) 7.3.6 CAN Bus short-circuit current limiting 7.3.7 Thermal Shutdown (TSD) 7.3.8 Undervoltage Lockout 7.3.9 Unpowered Device 7.3.10 Floating pins 7.4 Device Functional Modes 7.4.1 Operating Modes 7.4.2 Normal Mode 7.4.3 Standby Mode 7.4.3.1 Remote Wake Request via Wake-Up Pattern (WUP) in Standby Mode 7.4.4 Driver and Receiver Function 8 Application and Implementation 8.1 Typical Application 8.1.1 Design Requirements 8.1.1.1 CAN Termination 8.1.2 Detailed Design Procedures 8.1.2.1 Bus Loading, Length and Number of Nodes 8.2 System Examples 8.3 Power Supply Recommendations 8.4 Layout 8.4.1 Layout Guidelines 8.4.2 Layout Example 9 Device and Documentation Support 9.1 Receiving Notification of Documentation Updates 9.2 Support Resources 9.3 Trademarks 9.4 Electrostatic Discharge Caution 9.5 Glossary 10 Revision History 11 Mechanical, Packaging, and Orderable Information
