Datasheet XC8115, XC8116 (Torex) - 4

XC8115/XC8116 Series

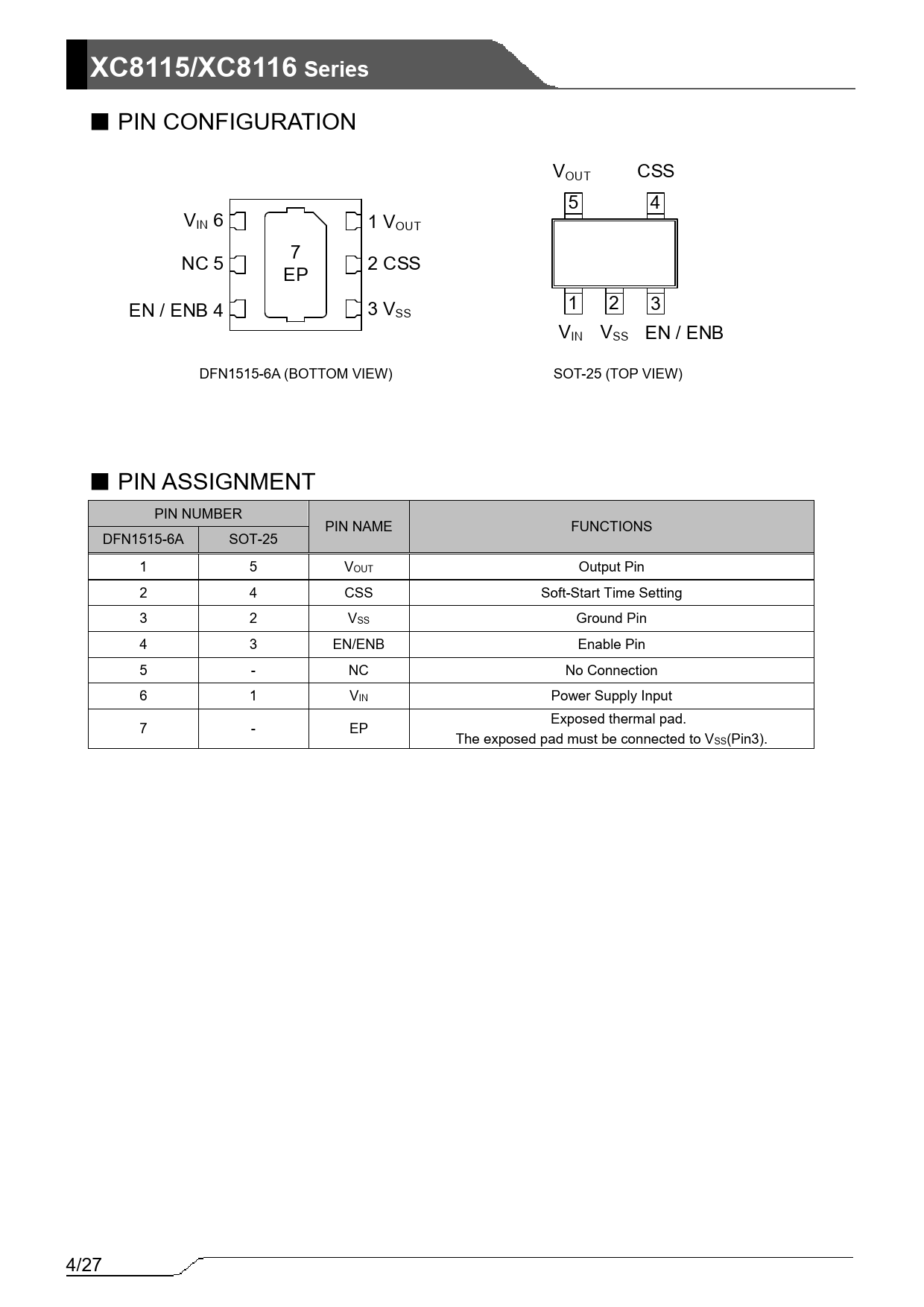

■ PIN CONFIGURATION VOUT CSS 5 4 VIN 6 1 VOUT NC 5 7 2 CSS EP 1 2 3 EN / ENB 4 3 VSS VIN VSS EN / ENB DFN1515-6A (BOTTOM VIEW) SOT-25 (TOP VIEW) ■ PIN ASSIGNMENT PIN NUMBER PIN NAME FUNCTIONS DFN1515-6A SOT-25 1 5 VOUT Output Pin 2 4 CSS Soft-Start Time Setting 3 2 VSS Ground Pin 4 3 EN/ENB Enable Pin 5 - NC No Connection 6 1 VIN Power Supply Input Exposed thermal pad. 7 - EP The exposed pad must be connected to VSS(Pin3). 4/27 Document Outline ■ GENERAL DESCRIPTION ■ APPLICATIONS ■ FEATURES ■ TYPICAL APPLICATION CIRCUIT ■ BLOCK DIAGRAM ■ PRODUCT CLASSIFICATION ■ PIN CONFIGURATION ■ PIN ASSIGNMENT ■ PIN FUNCTIONS ASSIGNMENT ■ ABSOLUTE MAXIMUM RATINGS ■ Recommended Operating Conditions ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ ELECTRICAL CHARACTERISTICS ■ TEST CIRCUITS ■ OPERATIONAL EXPLANATION ■ Application Circuit Examples <Power Multiplexer> ■ OPERATIONAL EXPLNATION ■ OPERATIONAL EXPLNATION <Enable function> ■ OPERATIONAL EXPLANATION <Startup Mode / Soft-Start> ■ OPERATIONAL EXPLANATION ■ OPERATIONAL EXPLANATION < Thermal shutdown > < Short-Circuit Protection > ■ OPERATIONAL EXPLANATION < CL Discharge Function > * XC8115 series only < Reverse current protection function > ■ NOTES ON USE ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ TYPICAL PERFORMANCE CHARACTERISTICS ■ PACKAGING INFORMATION ■ Marking
