Datasheet AP7583Q, AP7583AQ (Diodes)
| Hersteller | Diodes |
| Beschreibung | Wide Input Voltage Range, 300mA ULDO Regulator with PG |
| Seiten / Seite | 21 / 1 — AP7583Q/AQ. WIDE INPUT-VOLTAGE RANGE, 300mA ULDO REGULATOR WITH PG. … |
| Dateiformat / Größe | PDF / 1.7 Mb |
| Dokumentensprache | Englisch |

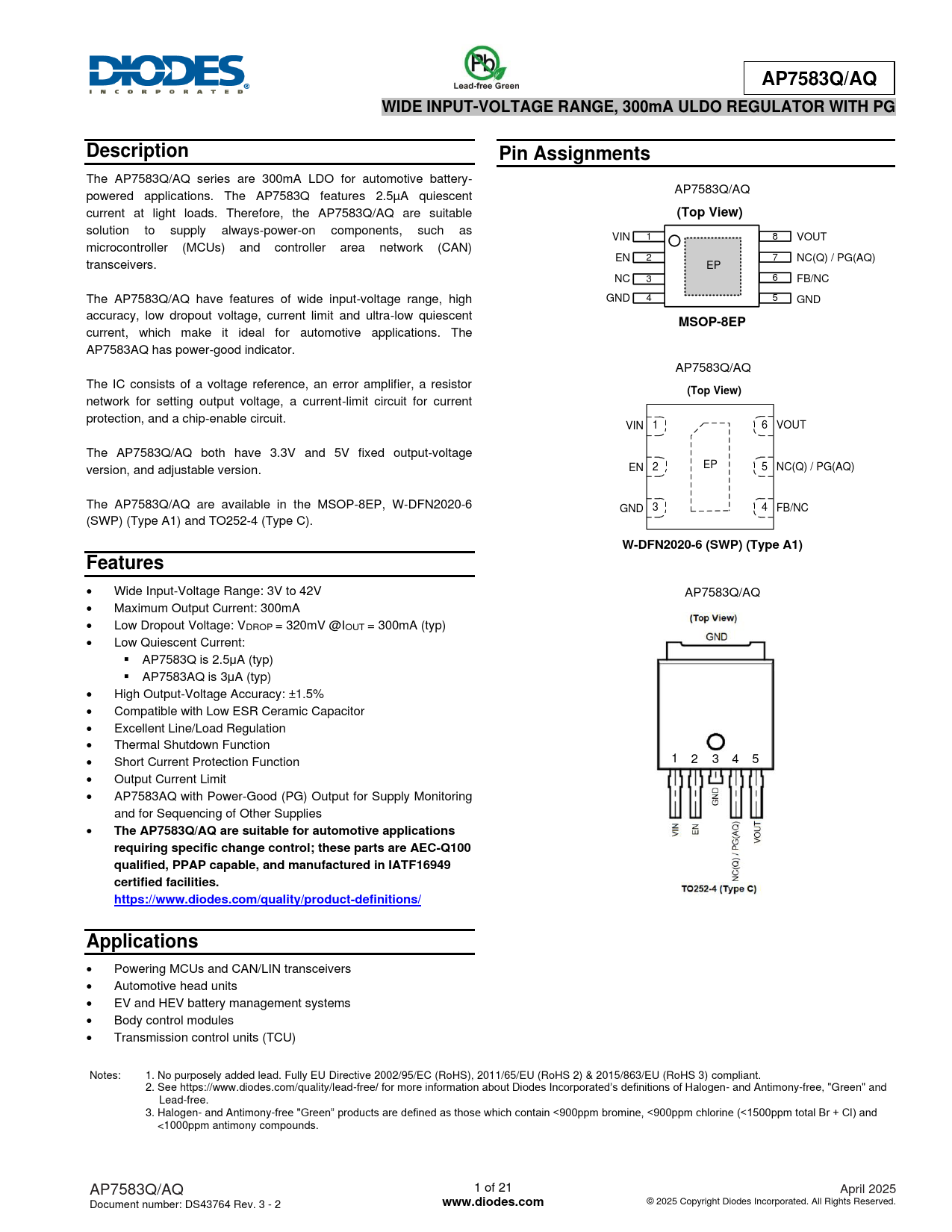

AP7583Q/AQ. WIDE INPUT-VOLTAGE RANGE, 300mA ULDO REGULATOR WITH PG. Description. Pin Assignments. (Top View). MSOP-8EP
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AP7583Q/AQ WIDE INPUT-VOLTAGE RANGE, 300mA ULDO REGULATOR WITH PG Description Pin Assignments
The AP7583Q/AQ series are 300mA LDO for automotive battery- AP7583Q/AQ powered applications. The AP7583Q features 2.5µA quiescent current at light loads. Therefore, the AP7583Q/AQ are suitable
(Top View)
solution to supply always-power-on components, such as VIN 1 8 VOUT microcontroller (MCUs) and controller area network (CAN) EN 2 7 NC(Q) / PG(AQ) transceivers. EP NC 3 6 FB/NC The AP7583Q/AQ have features of wide input-voltage range, high GND 4 5 GND accuracy, low dropout voltage, current limit and ultra-low quiescent
MSOP-8EP
current, which make it ideal for automotive applications. The AP7583AQ has power-good indicator. AP7583Q/AQ The IC consists of a voltage reference, an error amplifier, a resistor
(Top View)
network for setting output voltage, a current-limit circuit for current protection, and a chip-enable circuit. VIN 1 6 VOUT The AP7583Q/AQ both have 3.3V and 5V fixed output-voltage version, and adjustable version. EN 2 EP 5 NC(Q) / PG(AQ) The AP7583Q/AQ are available in the MSOP-8EP, W-DFN2020-6 GND 3 4 FB/NC (SWP) (Type A1) and TO252-4 (Type C).
W-DFN2020-6 SWP Type A1 W-DFN2020-6 (SWP) (Type A1) Features
• Wide Input-Voltage Range: 3V to 42V AP7583Q/AQ • Maximum Output Current: 300mA • Low Dropout Voltage: VDROP = 320mV @IOUT = 300mA (typ) • Low Quiescent Current: ▪ AP7583Q is 2.5μA (typ) ▪ AP7583AQ is 3μA (typ) • High Output-Voltage Accuracy: ±1.5% • Compatible with Low ESR Ceramic Capacitor • Excellent Line/Load Regulation • Thermal Shutdown Function • Short Current Protection Function 1 2 3 4 5 • Output Current Limit • AP7583AQ with Power-Good (PG) Output for Supply Monitoring and for Sequencing of Other Supplies •
The AP7583Q/AQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/ Applications
• Powering MCUs and CAN/LIN transceivers • Automotive head units • EV and HEV battery management systems • Body control modules • Transmission control units (TCU) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. AP7583Q/AQ 1 of 21 April 2025 Document number: DS43764 Rev. 3 - 2
www.diodes.com
© 2025 Copyright Diodes Incorporated. All Rights Reserved.
