Datasheet E10561-J-WH-0-WF (Toyo LED) - 5
| Hersteller | Toyo LED |
| Beschreibung | White 0.56" Seven Segment Display Cathode LED |
| Seiten / Seite | 8 / 5 — TOYO LED ELECTRONICS LIMITED. P/N: E10561-J-WH-0-WF. Recommended Wave … |
| Dateiformat / Größe | PDF / 222 Kb |
| Dokumentensprache | Englisch |
TOYO LED ELECTRONICS LIMITED. P/N: E10561-J-WH-0-WF. Recommended Wave Soldering Profiles:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TOYO LED ELECTRONICS LIMITED
Room 1610, Hong Kong Plaza, 188 Connaught Road West, Hong Kong. Tel : (852) 2540 7288 Fax : (852) 2517 1797 http://www.toyo-led.com E-mail : sales@toyo-led.com

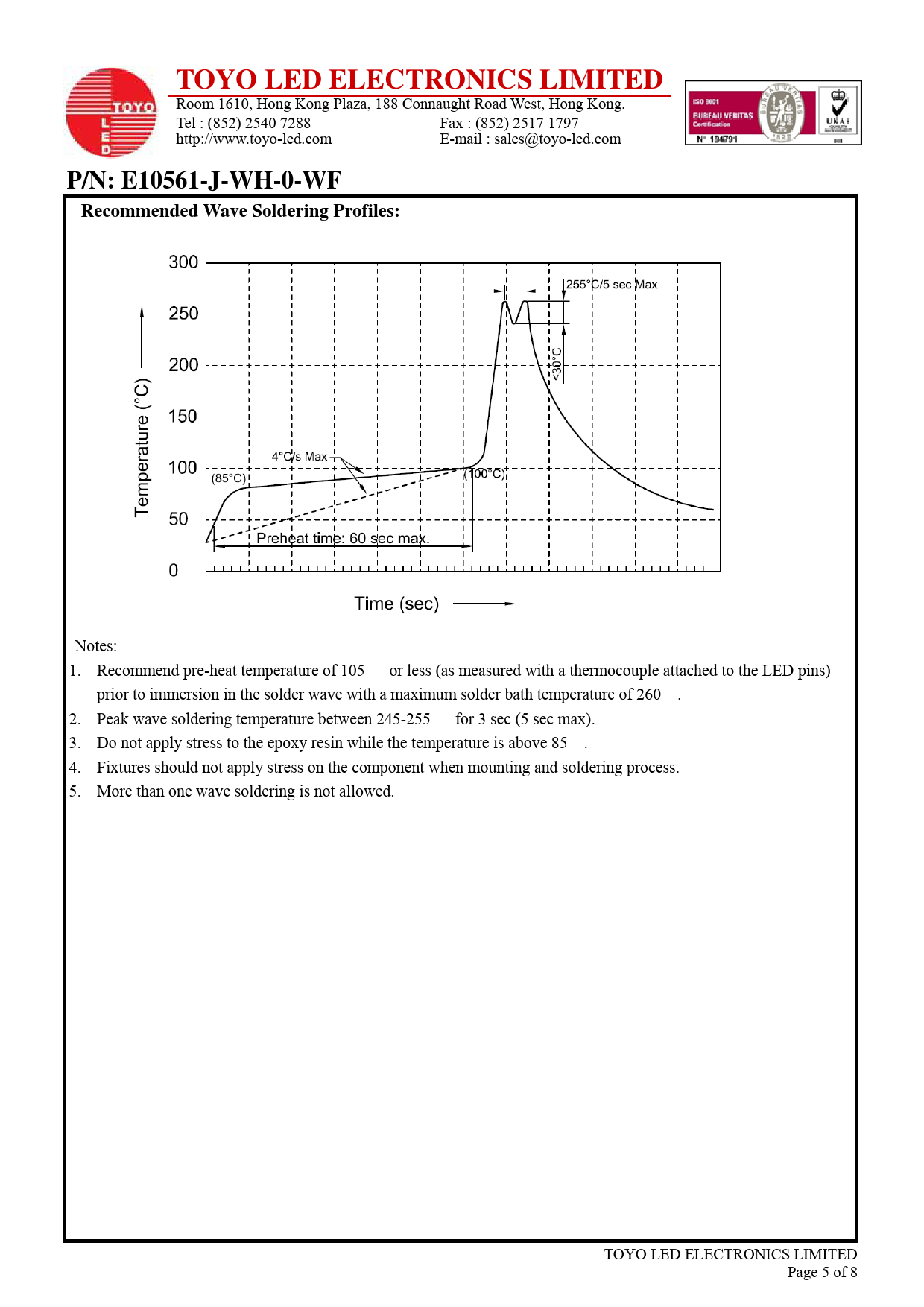

P/N: E10561-J-WH-0-WF Recommended Wave Soldering Profiles:
Notes: 1. Recommend pre-heat temperature of 105℃ or less (as measured with a thermocouple attached to the LED pins) prior to immersion in the solder wave with a maximum solder bath temperature of 260℃. 2. Peak wave soldering temperature between 245-255℃ for 3 sec (5 sec max). 3. Do not apply stress to the epoxy resin while the temperature is above 85℃. 4. Fixtures should not apply stress on the component when mounting and soldering process. 5. More than one wave soldering is not allowed. TOYO LED ELECTRONICS LIMITED Page 5 of 8
Room 1610, Hong Kong Plaza, 188 Connaught Road West, Hong Kong. Tel : (852) 2540 7288 Fax : (852) 2517 1797 http://www.toyo-led.com E-mail : sales@toyo-led.com
P/N: E10561-J-WH-0-WF Recommended Wave Soldering Profiles:
Notes: 1. Recommend pre-heat temperature of 105℃ or less (as measured with a thermocouple attached to the LED pins) prior to immersion in the solder wave with a maximum solder bath temperature of 260℃. 2. Peak wave soldering temperature between 245-255℃ for 3 sec (5 sec max). 3. Do not apply stress to the epoxy resin while the temperature is above 85℃. 4. Fixtures should not apply stress on the component when mounting and soldering process. 5. More than one wave soldering is not allowed. TOYO LED ELECTRONICS LIMITED Page 5 of 8
