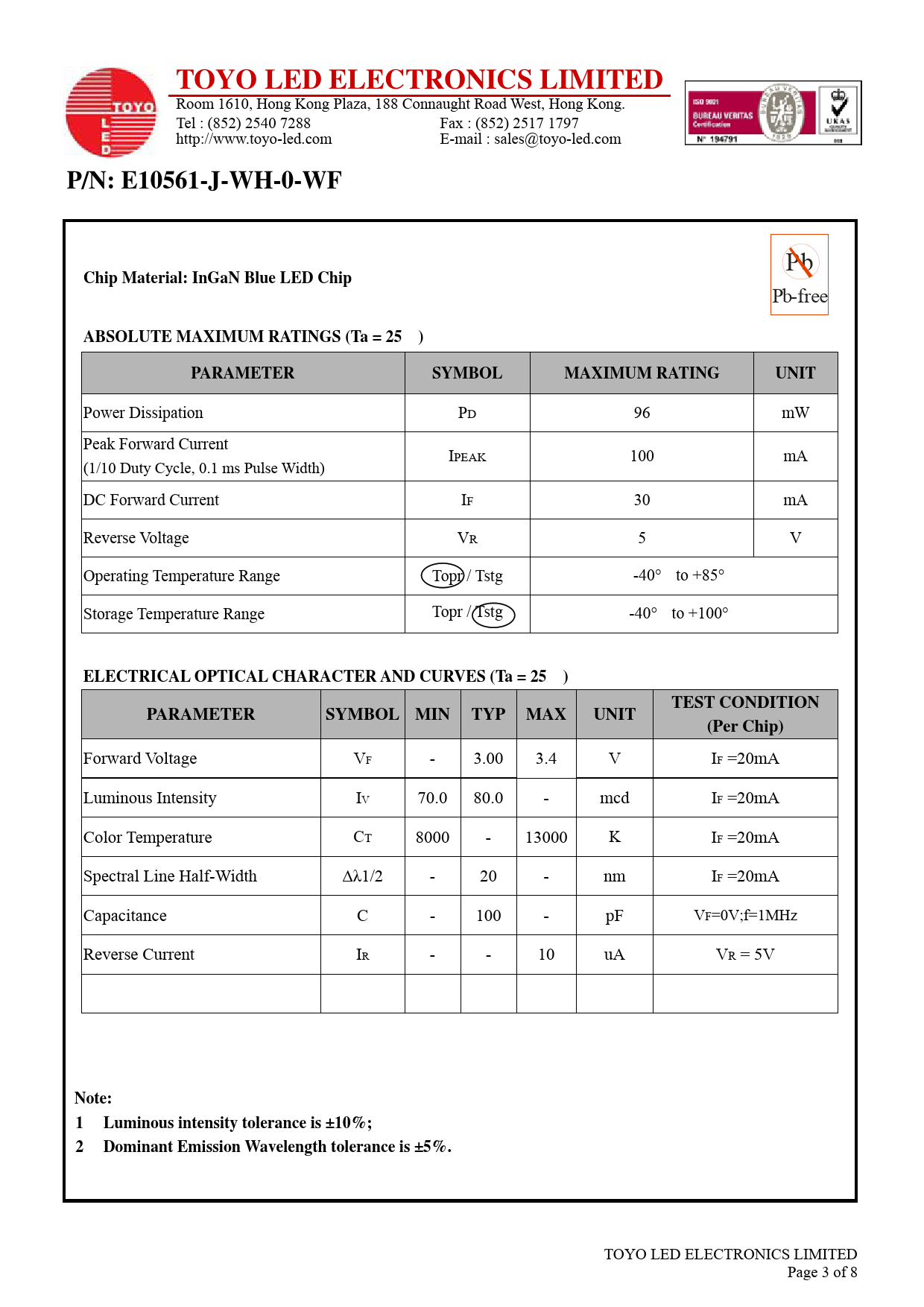

TOYO LED ELECTRONICS LIMITED
Room 1610, Hong Kong Plaza, 188 Connaught Road West, Hong Kong. Tel : (852) 2540 7288 Fax : (852) 2517 1797 http://www.toyo-led.com E-mail : sales@toyo-led.com
P/N: E10561-J-WH-0-WF
Pb
Chip Material: InGaN Blue LED Chip
Pb-free
ABSOLUTE MAXIMUM RATINGS (Ta = 25
℃
) PARAMETER SYMBOL MAXIMUM RATING UNIT
Power Dissipation PD 96 mW Peak Forward Current IPEAK 100 mA (1/10 Duty Cycle, 0.1 ms Pulse Width) DC Forward Current IF 30 mA Reverse Voltage VR 5 V Operating Temperature Range Topr / Tstg -40°C to +85°C Storage Temperature Range Topr / Tstg -40°C to +100°C
ELECTRICAL OPTICAL CHARACTER AND CURVES (Ta = 25
℃
) TEST CONDITION PARAMETER SYMBOL MIN TYP MAX UNIT (Per Chip)
Forward Voltage VF - 3.00 3.4 V IF =20mA Luminous Intensity IV 70.0 80.0 - mcd IF =20mA Color Temperature CT 8000 - 13000 K IF =20mA Spectral Line Half-Width ∆λ1/2 - 20 - nm IF =20mA Capacitance C - 100 - pF VF=0V;f=1MHz Reverse Current IR - - 10 uA VR = 5V
Note: 1 Luminous intensity tolerance is ±10%; 2 Dominant Emission Wavelength tolerance is ±5%.
TOYO LED ELECTRONICS LIMITED Page 3 of 8
