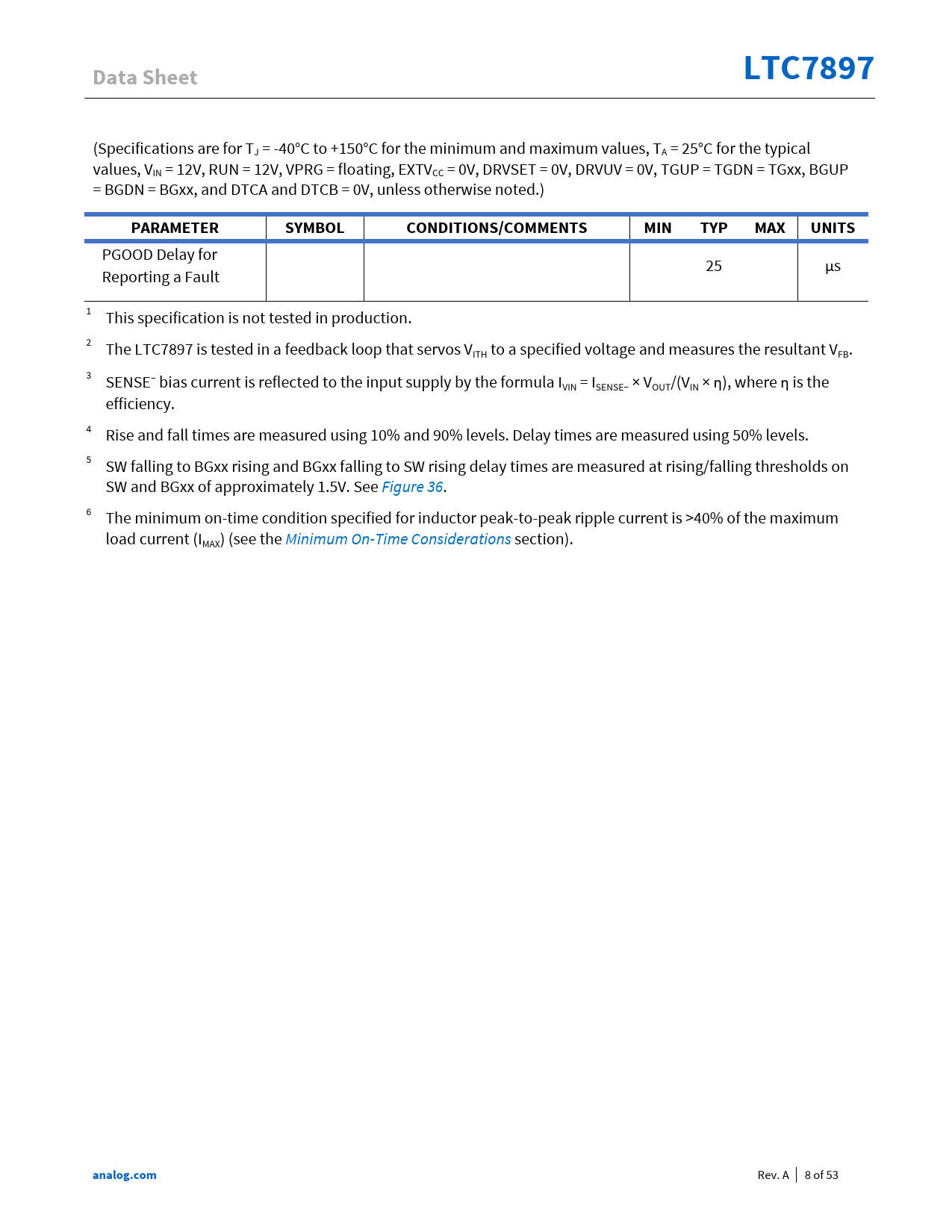

Data Sheet LTC7897
(Specifications are for TJ = -40°C to +150°C for the minimum and maximum values, TA = 25°C for the typical values, VIN = 12V, RUN = 12V, VPRG = floating, EXTVCC = 0V, DRVSET = 0V, DRVUV = 0V, TGUP = TGDN = TGxx, BGUP = BGDN = BGxx, and DTCA and DTCB = 0V, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS
PGOOD Delay for 25 Reporting a Fault μs .1 This specification is not tested in production. 2 The LTC7897 is tested in a feedback loop that servos VITH to a specified voltage and measures the resultant VFB. 3 SENSE− bias current is reflected to the input supply by the formula IVIN = ISENSE− × VOUT/(VIN × η), where η is the efficiency. 4 Rise and fall times are measured using 10% and 90% levels. Delay times are measured using 50% levels. 5 SW falling to BGxx rising and BGxx falling to SW rising delay times are measured at rising/falling thresholds on SW and BGxx of approximately 1.5V. See Figure 36. 6 The minimum on-time condition specified for inductor peak-to-peak ripple current is >40% of the maximum load current (IMAX) (see the Minimum On-Time Considerations section).
analog.com
