Datasheet TB9M040FTG (Toshiba) - 2
| Hersteller | Toshiba |
| Beschreibung | IC for automotive three-phase brushless DC motor in 36-VFQFPN package |
| Seiten / Seite | 38 / 2 — Preliminary. 4. Functions |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |

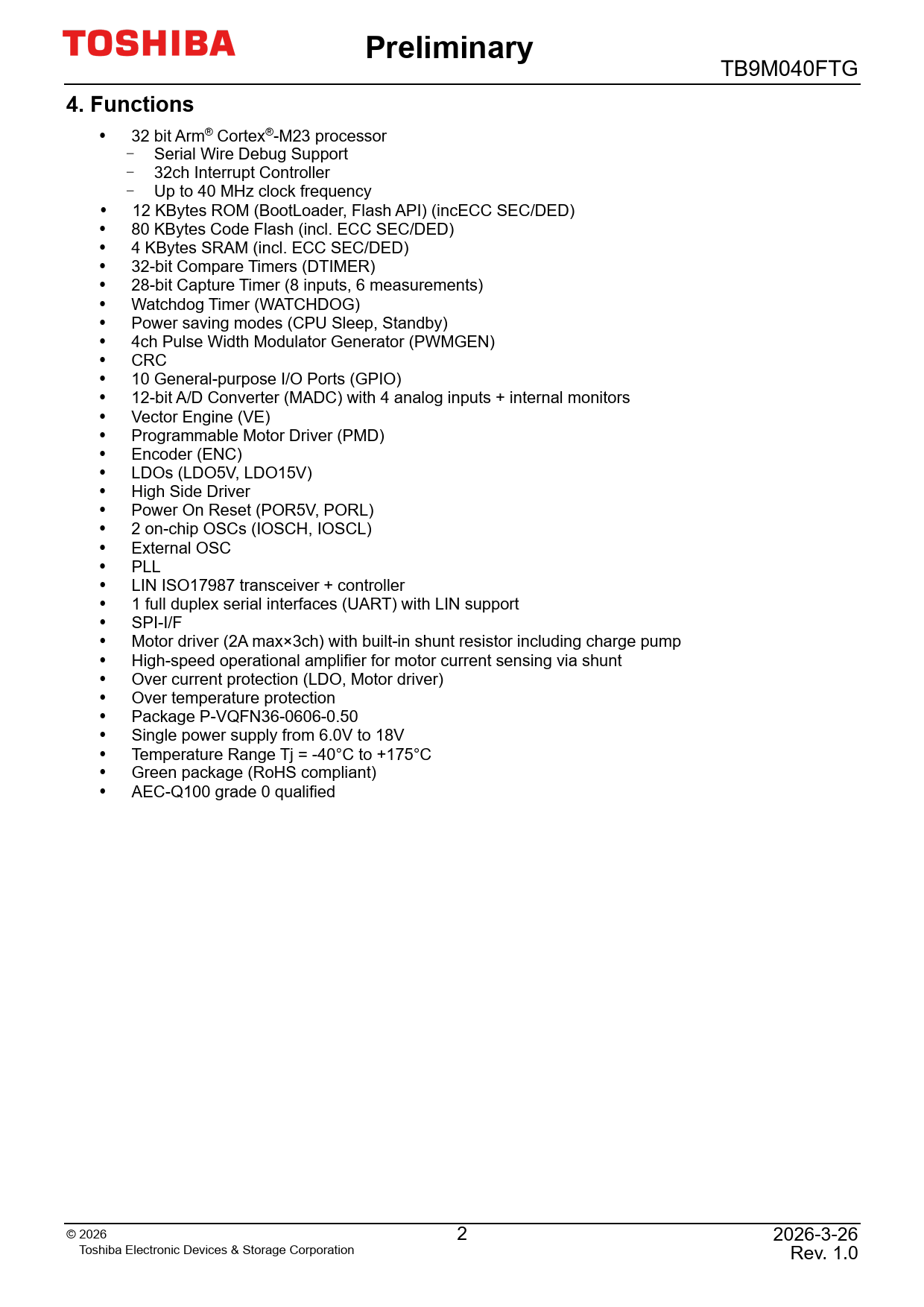

Preliminary. 4. Functions
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Preliminary
TB9M040FTG
4. Functions
32 bit Arm® Cortex®-M23 processor Serial Wire Debug Support 32ch Interrupt Control er Up to 40 MHz clock frequency 12 KBytes ROM (BootLoader, Flash API) (incECC SEC/DED) 80 KBytes Code Flash (incl. ECC SEC/DED) 4 KBytes SRAM (incl. ECC SEC/DED) 32-bit Compare Timers (DTIMER) 28-bit Capture Timer (8 inputs, 6 measurements) Watchdog Timer (WATCHDOG) Power saving modes (CPU Sleep, Standby) 4ch Pulse Width Modulator Generator (PWMGEN) CRC 10 General-purpose I/O Ports (GPIO) 12-bit A/D Converter (MADC) with 4 analog inputs + internal monitors Vector Engine (VE) Programmable Motor Driver (PMD) Encoder (ENC) LDOs (LDO5V, LDO15V) High Side Driver Power On Reset (POR5V, PORL) 2 on-chip OSCs (IOSCH, IOSCL) External OSC PLL LIN ISO17987 transceiver + controller 1 full duplex serial interfaces (UART) with LIN support SPI-I/F Motor driver (2A max×3ch) with built-in shunt resistor including charge pump High-speed operational amplifier for motor current sensing via shunt Over current protection (LDO, Motor driver) Over temperature protection Package P-VQFN36-0606-0.50 Single power supply from 6.0V to 18V Temperature Range Tj = -40°C to +175°C Green package (RoHS compliant) AEC-Q100 grade 0 qualified © 2 026 2 2026-3-26 Toshiba Electronic Devices & Storage Corporation Rev. 1.0 Document Outline 1. Description 2. Applications 3. Features 4. Functions 5. Block Diagram 6. Pin Assignments 7. Pin Description 8. I/O Equivalent Circuits 9. Functional Description 9.1. Bridge Drivers (BDRV) Circuit 9.2. High Side Driver (HSD) 9.3. Current-Sense Amplifier (CSAMP) 9.4. Current Limit Comparator (CLCMP) 9.5. Overcurrent Detection Comparator (OCCMP) 9.6. Vector Engine(VE) 9.7. Programmable Motor Driver (PMD) 9.8. Memory Map 10. Electrical Characteristics 10.1. Absolute Maximum Ratings 10.2. Operating Ranges 10.3. Overall Electrical Characteristics 10.4. Reset Generator and Standby Time 10.5. 5-V Regulator (LDO5V) 10.6. 1.5-V Regulator (LDO15V) 10.7. Charge Pump 10.8. Oscillator 10.9. 12-bit ADC 10.10. Bridge Drivers (BRDV) 10.11. Current-Sense Amplifier (CSAMP) 10.12. Current Limit Comparator (CLCMP) 10.13. Overcurrent Detection Comparator (OCCMP) 10.14. Back-EMF Comparator (BEMFCMP) 10.15. Thermal Shutdown (TSD) Circuit 10.16. LIN 10.17. UART 10.18. SPI 10.19. GPIO 10.20. Flash (Code Flash) 10.21. Other 11. Application Circuit Example 12. Package Information 12.1. Package Dimensions 12.2. Marking 13. IC Usage Considerations 13.1. Notes on Handling of ICs 13.2. Points to Remember on Handling of ICs RESTRICTIONS ON PRODUCT USE
TB9M040FTG
4. Functions
32 bit Arm® Cortex®-M23 processor Serial Wire Debug Support 32ch Interrupt Control er Up to 40 MHz clock frequency 12 KBytes ROM (BootLoader, Flash API) (incECC SEC/DED) 80 KBytes Code Flash (incl. ECC SEC/DED) 4 KBytes SRAM (incl. ECC SEC/DED) 32-bit Compare Timers (DTIMER) 28-bit Capture Timer (8 inputs, 6 measurements) Watchdog Timer (WATCHDOG) Power saving modes (CPU Sleep, Standby) 4ch Pulse Width Modulator Generator (PWMGEN) CRC 10 General-purpose I/O Ports (GPIO) 12-bit A/D Converter (MADC) with 4 analog inputs + internal monitors Vector Engine (VE) Programmable Motor Driver (PMD) Encoder (ENC) LDOs (LDO5V, LDO15V) High Side Driver Power On Reset (POR5V, PORL) 2 on-chip OSCs (IOSCH, IOSCL) External OSC PLL LIN ISO17987 transceiver + controller 1 full duplex serial interfaces (UART) with LIN support SPI-I/F Motor driver (2A max×3ch) with built-in shunt resistor including charge pump High-speed operational amplifier for motor current sensing via shunt Over current protection (LDO, Motor driver) Over temperature protection Package P-VQFN36-0606-0.50 Single power supply from 6.0V to 18V Temperature Range Tj = -40°C to +175°C Green package (RoHS compliant) AEC-Q100 grade 0 qualified © 2 026 2 2026-3-26 Toshiba Electronic Devices & Storage Corporation Rev. 1.0 Document Outline 1. Description 2. Applications 3. Features 4. Functions 5. Block Diagram 6. Pin Assignments 7. Pin Description 8. I/O Equivalent Circuits 9. Functional Description 9.1. Bridge Drivers (BDRV) Circuit 9.2. High Side Driver (HSD) 9.3. Current-Sense Amplifier (CSAMP) 9.4. Current Limit Comparator (CLCMP) 9.5. Overcurrent Detection Comparator (OCCMP) 9.6. Vector Engine(VE) 9.7. Programmable Motor Driver (PMD) 9.8. Memory Map 10. Electrical Characteristics 10.1. Absolute Maximum Ratings 10.2. Operating Ranges 10.3. Overall Electrical Characteristics 10.4. Reset Generator and Standby Time 10.5. 5-V Regulator (LDO5V) 10.6. 1.5-V Regulator (LDO15V) 10.7. Charge Pump 10.8. Oscillator 10.9. 12-bit ADC 10.10. Bridge Drivers (BRDV) 10.11. Current-Sense Amplifier (CSAMP) 10.12. Current Limit Comparator (CLCMP) 10.13. Overcurrent Detection Comparator (OCCMP) 10.14. Back-EMF Comparator (BEMFCMP) 10.15. Thermal Shutdown (TSD) Circuit 10.16. LIN 10.17. UART 10.18. SPI 10.19. GPIO 10.20. Flash (Code Flash) 10.21. Other 11. Application Circuit Example 12. Package Information 12.1. Package Dimensions 12.2. Marking 13. IC Usage Considerations 13.1. Notes on Handling of ICs 13.2. Points to Remember on Handling of ICs RESTRICTIONS ON PRODUCT USE
