Datasheet AX-1838HS (Aixin) - 4
| Hersteller | Aixin |
| Beschreibung | Miniaturized infrared receivers for remote control and other applications requiring improved ambient light rejection in TSOP-style metal shield package |
| Seiten / Seite | 6 / 4 — aixin opto-electrical technology co.,ltd. AX-1838HS. Test Method. … |
| Dateiformat / Größe | PDF / 418 Kb |
| Dokumentensprache | Englisch |
aixin opto-electrical technology co.,ltd. AX-1838HS. Test Method. Application Circuit
Modelllinie für dieses Datenblatt
Textversion des Dokuments

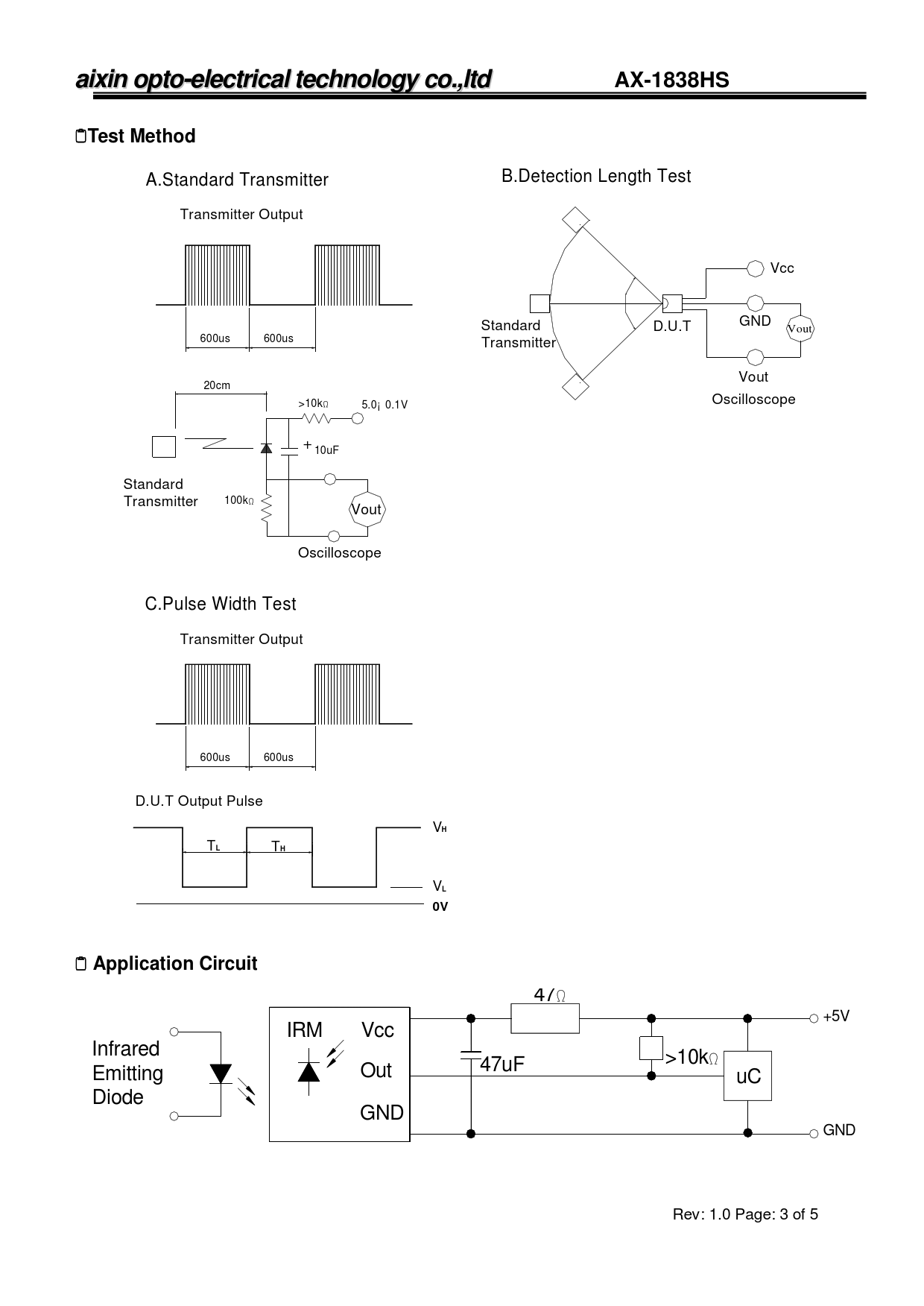

aixin opto-electrical technology co.,ltd AX-1838HS Test Method
A.Standard Transmitter B.Detection Length Test Transmitter Output Vcc Standard D.U.T GND Vout 600us 600us Transmitter Vout 20cm >10k Oscilloscope 5.0¡ 0.1V + 10uF Standard 100k Transmitter Vout Oscilloscope C.Pulse Width Test Transmitter Output 600us 600us D.U.T Output Pulse V
H
T
L
T
H
V
L 0V Application Circuit
47 +5V IRM Vcc Infrared >10k Emitting 47uF Out uC Diode GND GND Rev: 1.0 Page: 3 of 5
