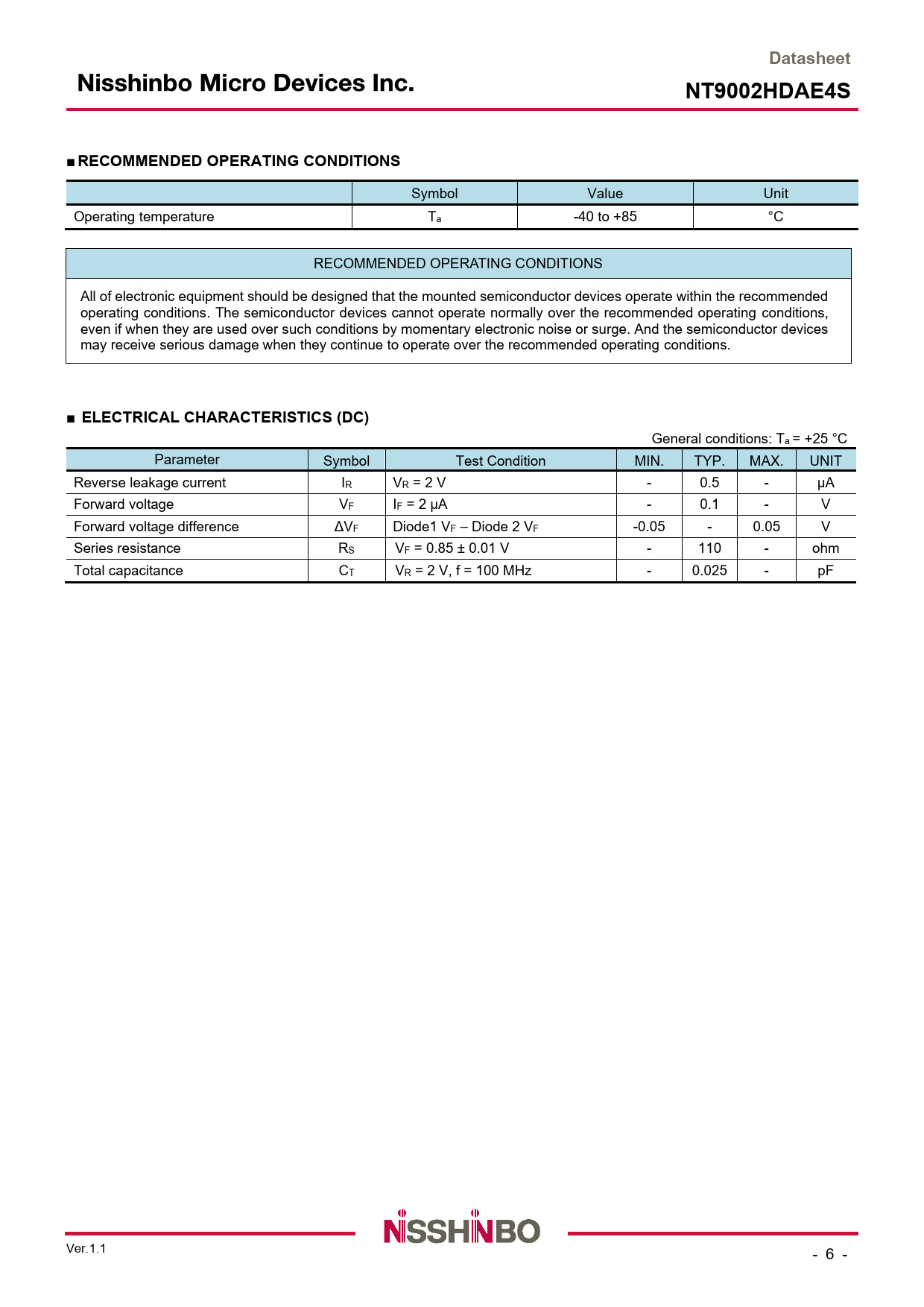

Datasheet NT9002HDAE4S ■ RECOMMENDED OPERATING CONDITIONS
Symbol Value Unit Operating temperature Ta -40 to +85 °C RECOMMENDED OPERATING CONDITIONS All of electronic equipment should be designed that the mounted semiconductor devices operate within the recommended operating conditions. The semiconductor devices cannot operate normally over the recommended operating conditions, even if when they are used over such conditions by momentary electronic noise or surge. And the semiconductor devices may receive serious damage when they continue to operate over the recommended operating conditions.
■ ELECTRICAL CHARACTERISTICS (DC)
General conditions: Ta = +25 °C Parameter Symbol Test Condition MIN. TYP. MAX. UNIT Reverse leakage current IR VR = 2 V - 0.5 - µA Forward voltage VF IF = 2 µA - 0.1 - V Forward voltage difference ΔVF Diode1 VF – Diode 2 VF -0.05 - 0.05 V Series resistance RS VF = 0.85 ± 0.01 V - 110 - ohm Total capacitance CT VR = 2 V, f = 100 MHz - 0.025 - pF Ver.1.1 - 6 - Document Outline FEATURES GENERAL DESCRIPTION APPLICATIONS BLOCK DIAGRAM ■ PRODUCT NAME INFORMATION ■ ORDER INFORMATION ■ PIN DESCRIPTIONS ■ ABSOLUTE MAXIMUM RATINGS ■ THERMAL CHARACTERISTICS ■ ELECTROSTATIC DISCHARGE RATINGS ■ RECOMMENDED OPERATING CONDITIONS ■ ELECTRICAL CHARACTERISTICS (DC) ■ TYPICAL CHARACTERISTICS ■ SPICE MODEL ● Notes on Using the SPICE Model ■ MARKING SPECIFICATION ■ REVISION HISTORY PACKAGE INFORMATION CAUTION
