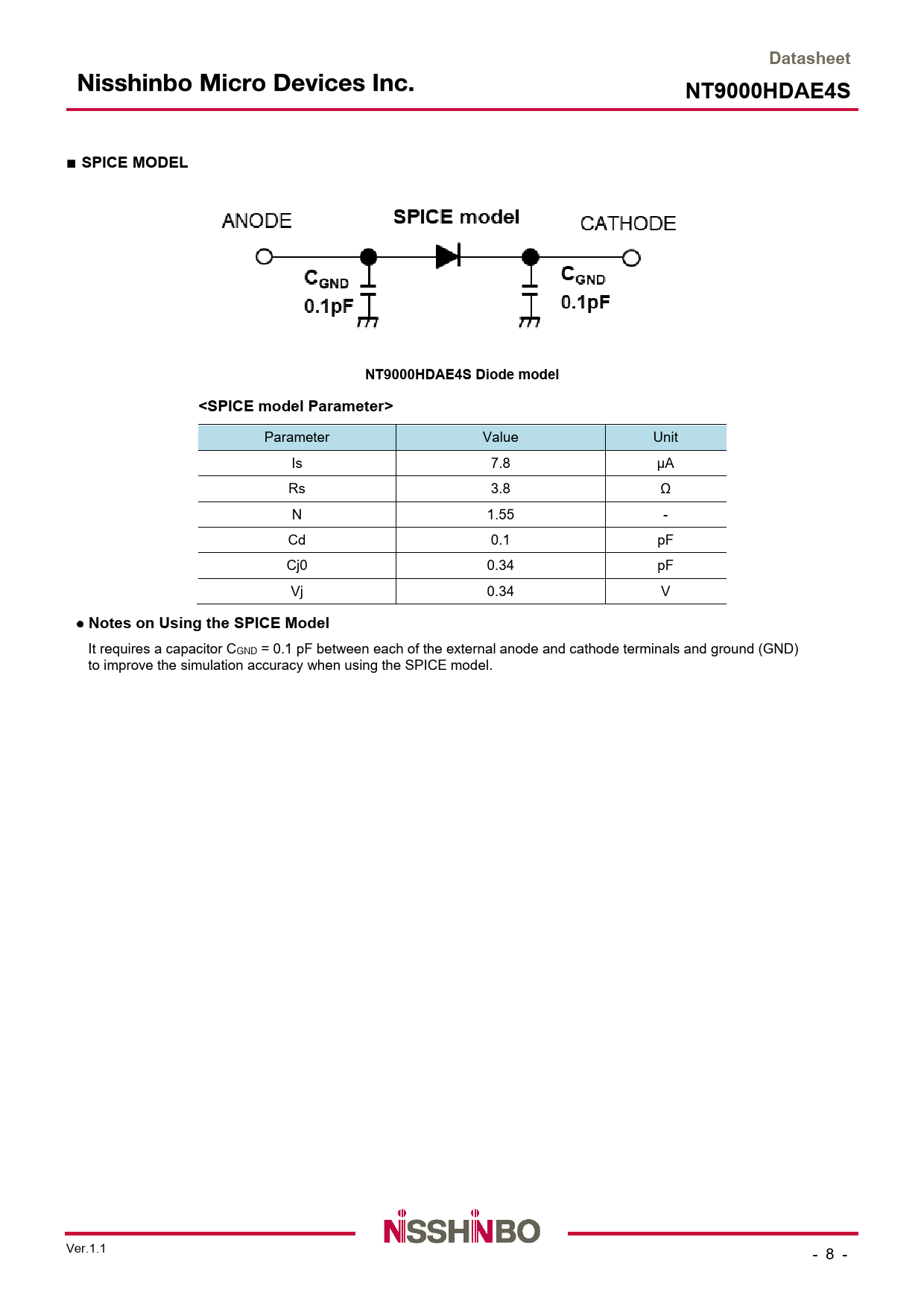

Datasheet NT9000HDAE4S ■ SPICE MODEL NT9000HDAE4S Diode model <SPICE model Parameter>
Parameter Value Unit Is 7.8 μA Rs 3.8 Ω N 1.55 - Cd 0.1 pF Cj0 0.34 pF Vj 0.34 V
Notes on Using the SPICE Model
It requires a capacitor CGND = 0.1 pF between each of the external anode and cathode terminals and ground (GND) to improve the simulation accuracy when using the SPICE model. Ver.1.1 - 8 - Document Outline FEATURES GENERAL DESCRIPTION APPLICATIONS BLOCK DIAGRAM ■ PRODUCT NAME INFORMATION ■ ORDER INFORMATION ■ PIN DESCRIPTIONS ■ ABSOLUTE MAXIMUM RATINGS ■ THERMAL CHARACTERISTICS ■ ELECTROSTATIC DISCHARGE RATINGS ■ RECOMMENDED OPERATING CONDITIONS ■ ELECTRICAL CHARACTERISTICS (DC) ■ TYPICAL CHARACTERISTICS ■ SPICE MODEL ● Notes on Using the SPICE Model ■ MARKING SPECIFICATION ■ REVISION HISTORY PACKAGE INFORMATION CAUTION
