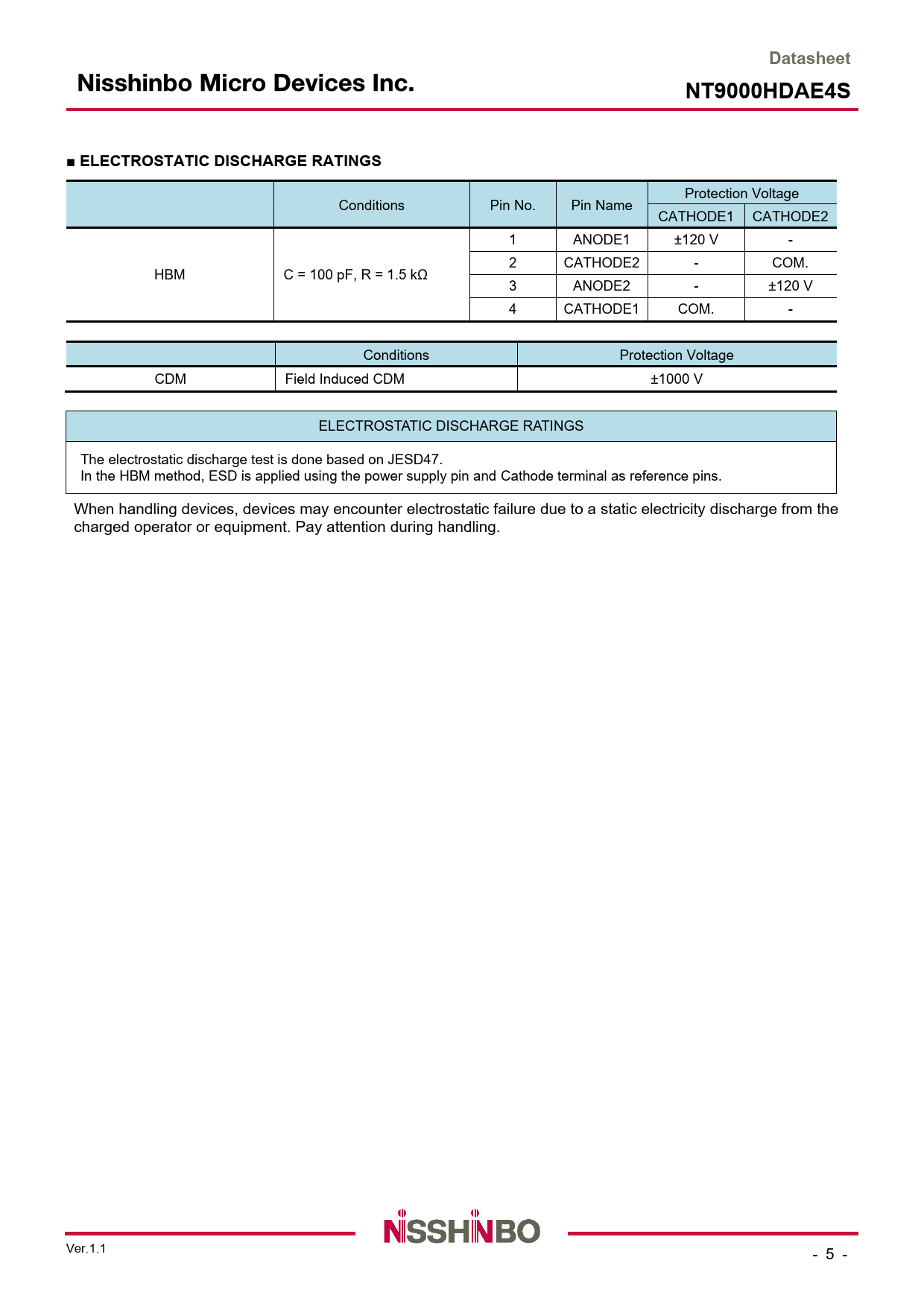

Datasheet NT9000HDAE4S ■ ELECTROSTATIC DISCHARGE RATINGS
Protection Voltage Conditions Pin No. Pin Name CATHODE1 CATHODE2 1 ANODE1 ±120 V - 2 CATHODE2 - COM. HBM C = 100 pF, R = 1.5 kΩ 3 ANODE2 - ±120 V 4 CATHODE1 COM. - Conditions Protection Voltage CDM Field Induced CDM ±1000 V ELECTROSTATIC DISCHARGE RATINGS The electrostatic discharge test is done based on JESD47. In the HBM method, ESD is applied using the power supply pin and Cathode terminal as reference pins. When handling devices, devices may encounter electrostatic failure due to a static electricity discharge from the charged operator or equipment. Pay attention during handling. Ver.1.1 - 5 - Document Outline FEATURES GENERAL DESCRIPTION APPLICATIONS BLOCK DIAGRAM ■ PRODUCT NAME INFORMATION ■ ORDER INFORMATION ■ PIN DESCRIPTIONS ■ ABSOLUTE MAXIMUM RATINGS ■ THERMAL CHARACTERISTICS ■ ELECTROSTATIC DISCHARGE RATINGS ■ RECOMMENDED OPERATING CONDITIONS ■ ELECTRICAL CHARACTERISTICS (DC) ■ TYPICAL CHARACTERISTICS ■ SPICE MODEL ● Notes on Using the SPICE Model ■ MARKING SPECIFICATION ■ REVISION HISTORY PACKAGE INFORMATION CAUTION
