Datasheet BD6xxx (STMicroelectronics) - 8

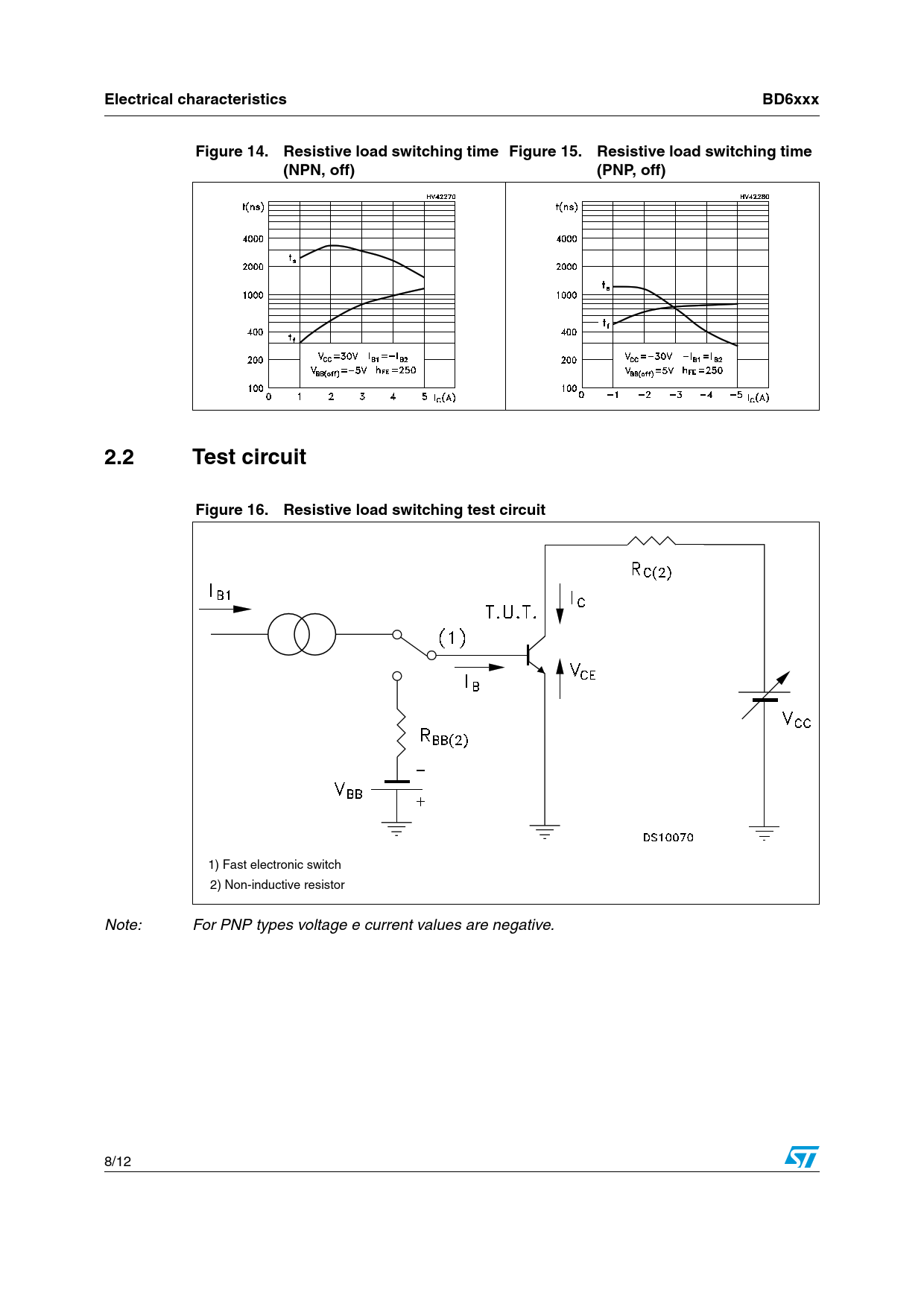

Electrical characteristics BD6xxx Figure 14. Resistive load switching time Figure 15. Resistive load switching time (NPN, off) (PNP, off) 2.2 Test circuit Figure 16. Resistive load switching test circuit
1) Fast electronic switch 2) Non-inductive resistor Note: For PNP types voltage e current values are negative. 8/12 Document Outline Figure 1. Internal schematic diagram Table 1. Device summary 1 Absolute maximum ratings Table 2. Absolute maximum ratings 2 Electrical characteristics Table 3. Electrical characteristics 2.1 Typical characteristic (curves) Figure 2. DC current gain (NPN) Figure 3. DC current gain (PNP) Figure 4. DC current gain (NPN) Figure 5. DC current gain (PNP) Figure 6. Collector-emitter saturation voltage (NPN) Figure 7. Collector-emitter saturation voltage (PNP) Figure 8. Base-emitter saturation voltage (NPN) Figure 9. Base-emitter saturation voltage (PNP) Figure 10. Base-emitter voltage (NPN) Figure 11. Base-emitter voltage (PNP) Figure 12. Resistive load switching time (NPN, on) Figure 13. Resistive load switching time (PNP, on) Figure 14. Resistive load switching time (NPN, off) Figure 15. Resistive load switching time (PNP, off) 2.2 Test circuit Figure 16. Resistive load switching test circuit 3 Package mechanical data 4 Revision history Table 4. Document revision history
