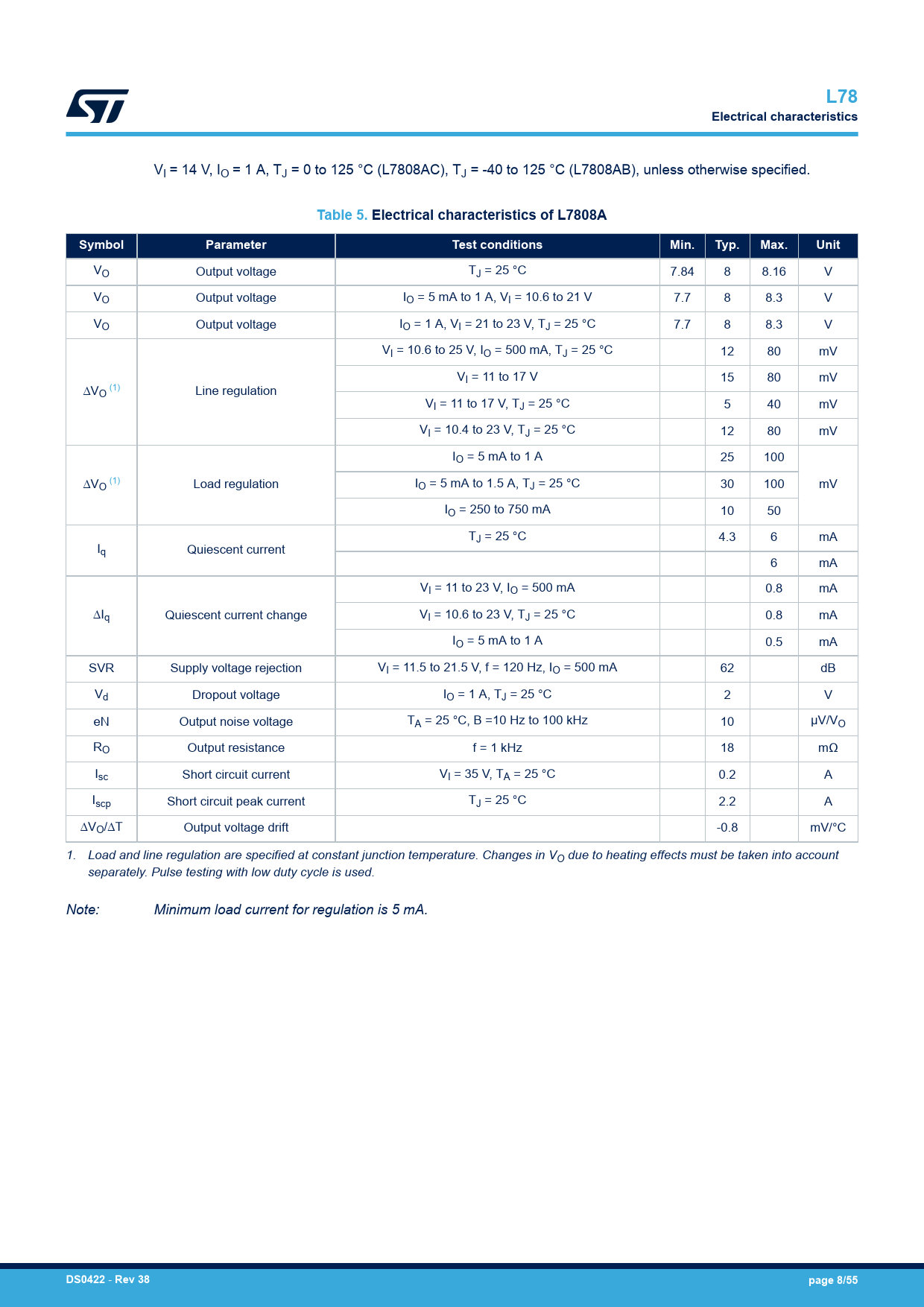

L78 Electrical characteristics
VI = 14 V, IO = 1 A, TJ = 0 to 125 °C (L7808AC), TJ = -40 to 125 °C (L7808AB), unless otherwise specified.
Table 5. Electrical characteristics of L7808A Symbol Parameter Test conditions Min. Typ. Max. Unit
VO Output voltage TJ = 25 °C 7.84 8 8.16 V VO Output voltage IO = 5 mA to 1 A, VI = 10.6 to 21 V 7.7 8 8.3 V VO Output voltage IO = 1 A, VI = 21 to 23 V, TJ = 25 °C 7.7 8 8.3 V VI = 10.6 to 25 V, IO = 500 mA, TJ = 25 °C 12 80 mV VI = 11 to 17 V 15 80 mV ∆V (1) O Line regulation VI = 11 to 17 V, TJ = 25 °C 5 40 mV VI = 10.4 to 23 V, TJ = 25 °C 12 80 mV IO = 5 mA to 1 A 25 100 ∆V (1) O Load regulation IO = 5 mA to 1.5 A, TJ = 25 °C 30 100 mV IO = 250 to 750 mA 10 50 TJ = 25 °C 4.3 6 mA Iq Quiescent current 6 mA VI = 11 to 23 V, IO = 500 mA 0.8 mA ∆Iq Quiescent current change VI = 10.6 to 23 V, TJ = 25 °C 0.8 mA IO = 5 mA to 1 A 0.5 mA SVR Supply voltage rejection VI = 11.5 to 21.5 V, f = 120 Hz, IO = 500 mA 62 dB Vd Dropout voltage IO = 1 A, TJ = 25 °C 2 V eN Output noise voltage TA = 25 °C, B =10 Hz to 100 kHz 10 µV/VO RO Output resistance f = 1 kHz 18 mΩ Isc Short circuit current VI = 35 V, TA = 25 °C 0.2 A Iscp Short circuit peak current TJ = 25 °C 2.2 A ∆VO/∆T Output voltage drift -0.8 mV/°C 1. Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into account separately. Pulse testing with low duty cycle is used. Note: Minimum load current for regulation is 5 mA.
DS0422
-
Rev 38 page 8/55
