Datasheet L78 (STMicroelectronics) - 6
| Hersteller | STMicroelectronics |
| Beschreibung | Positive voltage regulator ICs |
| Seiten / Seite | 55 / 6 — L78. Electrical characteristics. Table 3. Electrical characteristics of … |
| Dateiformat / Größe | PDF / 3.3 Mb |
| Dokumentensprache | Englisch |
L78. Electrical characteristics. Table 3. Electrical characteristics of L7805A. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
- L7805ABD2T-TR L7805ABP L7805ABV L7805ABV-DG L7805ACD2T-TR L7805ACV L7805ACV-DG L7805CD2T-TR L7805CDT-TR L7805CP L7805CV L7805CV-DG L7806ABD2T-TR L7806CD2T-TR L7808ABD2T-TR L7808CD2T-TR L7809ABD2T-TR L7809CD2T-TR L7812ABD2T-TR L7812ABV L7812ABV-DG L7812ACD2T-TR L7812ACV L7812ACV-DG L7812CD2T-TR L7812CP L7812CV L7812CV-DG L7815ABD2T-TR L7815ABV L7815ABV-DG L7815ACD2T-TR L7815ACV L7815ACV-DG L7815CD2T-TR L7815CP L7815CV L7815CV-DG L7824ABV L7824ABV-DG L7824CD2T-TR L7824CP L7824CV L7824CV-DG
Textversion des Dokuments
link to page 6 link to page 6
L78 Electrical characteristics 5 Electrical characteristics
VI = 10 V, IO = 1 A, TJ = 0 to 125 °C (L7805AC), TJ = -40 to 125 °C (L7805AB), unless otherwise specified.

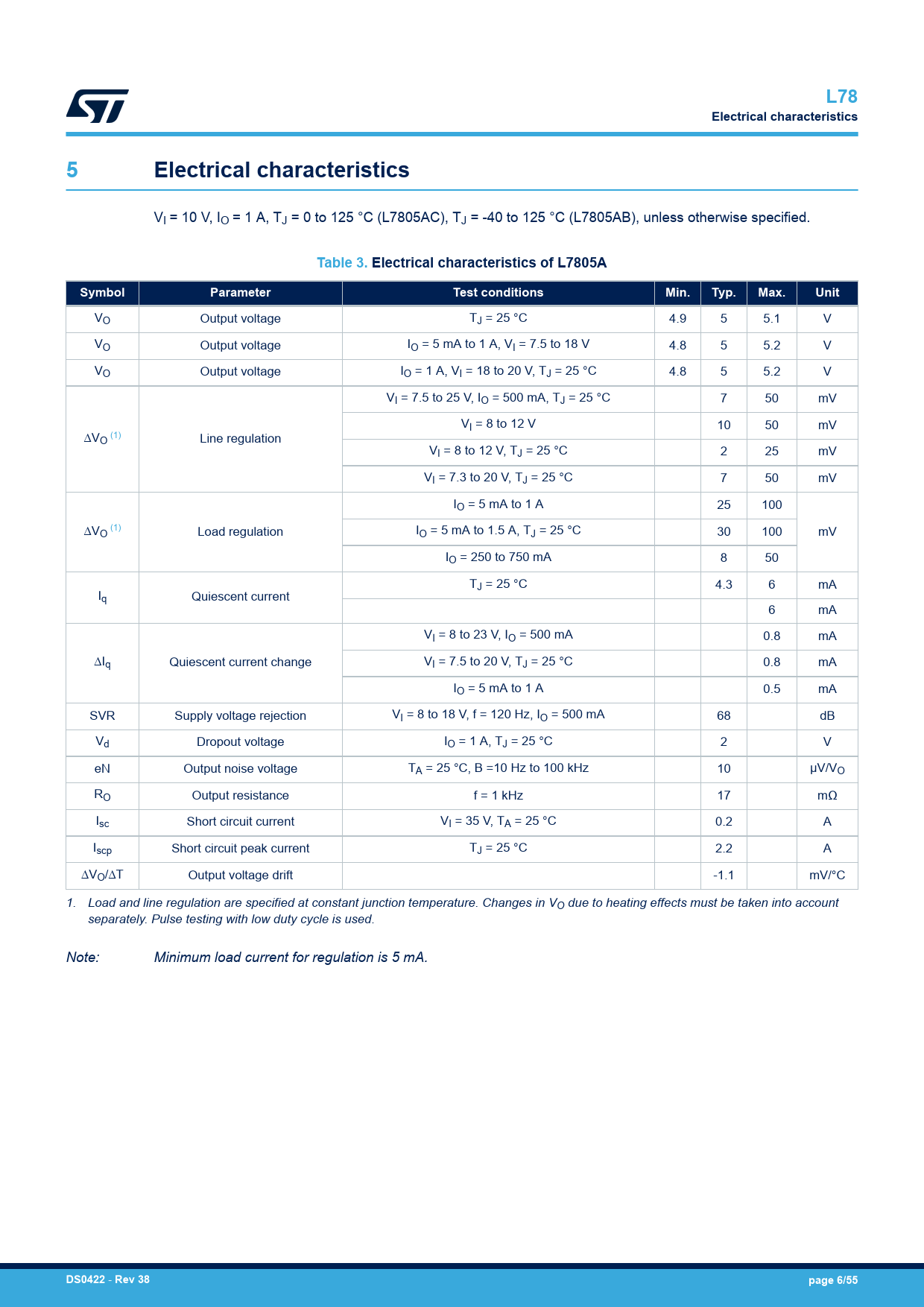

Table 3. Electrical characteristics of L7805A Symbol Parameter Test conditions Min. Typ. Max. Unit
VO Output voltage TJ = 25 °C 4.9 5 5.1 V VO Output voltage IO = 5 mA to 1 A, VI = 7.5 to 18 V 4.8 5 5.2 V VO Output voltage IO = 1 A, VI = 18 to 20 V, TJ = 25 °C 4.8 5 5.2 V VI = 7.5 to 25 V, IO = 500 mA, TJ = 25 °C 7 50 mV VI = 8 to 12 V 10 50 mV ∆V (1) O Line regulation VI = 8 to 12 V, TJ = 25 °C 2 25 mV VI = 7.3 to 20 V, TJ = 25 °C 7 50 mV IO = 5 mA to 1 A 25 100 ∆V (1) O Load regulation IO = 5 mA to 1.5 A, TJ = 25 °C 30 100 mV IO = 250 to 750 mA 8 50 TJ = 25 °C 4.3 6 mA Iq Quiescent current 6 mA VI = 8 to 23 V, IO = 500 mA 0.8 mA ∆Iq Quiescent current change VI = 7.5 to 20 V, TJ = 25 °C 0.8 mA IO = 5 mA to 1 A 0.5 mA SVR Supply voltage rejection VI = 8 to 18 V, f = 120 Hz, IO = 500 mA 68 dB Vd Dropout voltage IO = 1 A, TJ = 25 °C 2 V eN Output noise voltage TA = 25 °C, B =10 Hz to 100 kHz 10 µV/VO RO Output resistance f = 1 kHz 17 mΩ Isc Short circuit current VI = 35 V, TA = 25 °C 0.2 A Iscp Short circuit peak current TJ = 25 °C 2.2 A ∆VO/∆T Output voltage drift -1.1 mV/°C 1. Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into account separately. Pulse testing with low duty cycle is used. Note: Minimum load current for regulation is 5 mA.
DS0422
-
Rev 38 page 6/55
