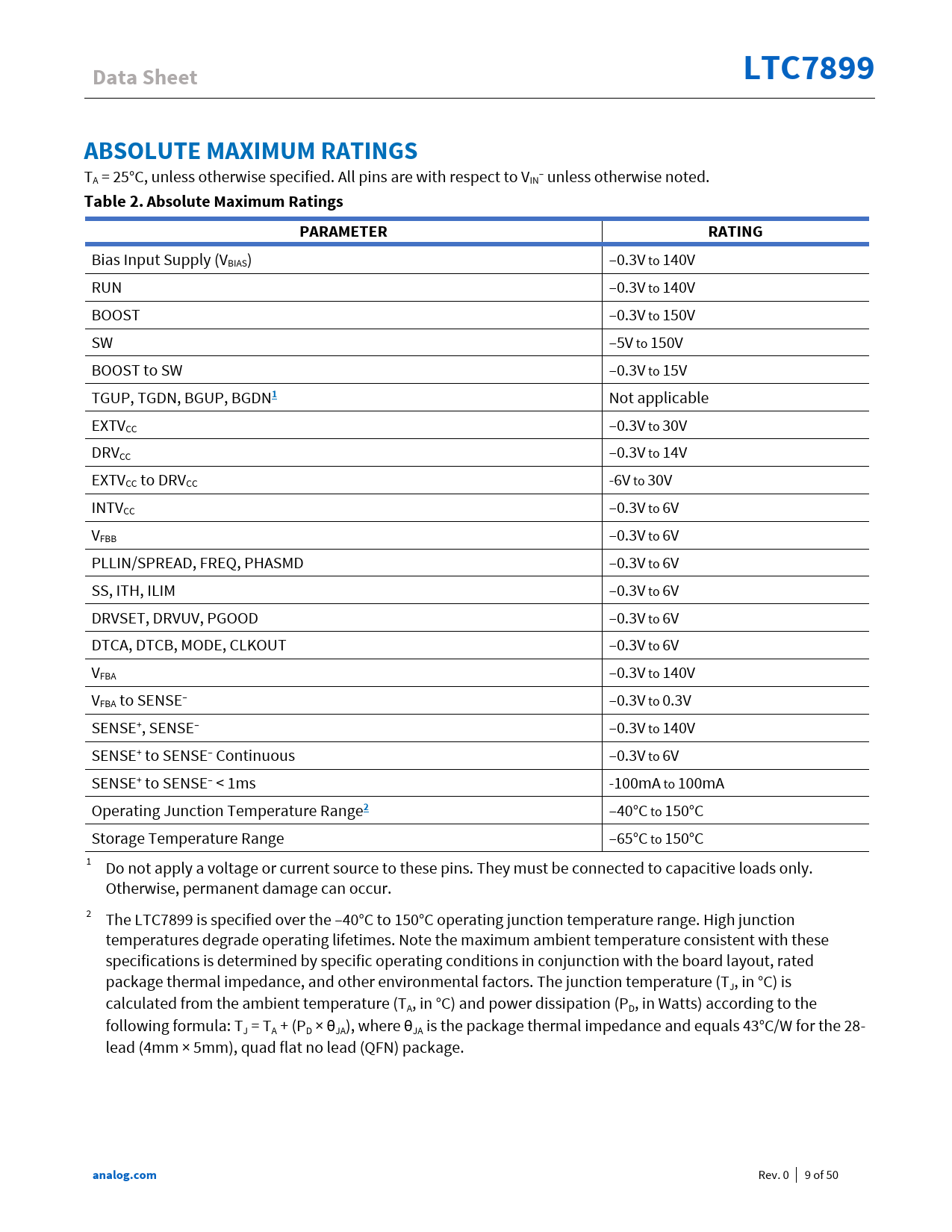

Data Sheet LTC7899 ABSOLUTE MAXIMUM RATINGS
T – A = 25°C, unless otherwise specified. All pins are with respect to VIN unless otherwise noted.
Table 2. Absolute Maximum Ratings PARAMETER RATING
Bias Input Supply (VBIAS) –0.3V to 140V RUN –0.3V to 140V BOOST –0.3V to 150V SW –5V to 150V BOOST to SW –0.3V to 15V TGUP, TGDN, BGUP, BGDN
1
Not applicable EXTVCC –0.3V to 30V DRVCC –0.3V to 14V EXTVCC to DRVCC -6V to 30V INTVCC –0.3V to 6V VFBB –0.3V to 6V PLLIN/SPREAD, FREQ, PHASMD –0.3V to 6V SS, ITH, ILIM –0.3V to 6V DRVSET, DRVUV, PGOOD –0.3V to 6V DTCA, DTCB, MODE, CLKOUT –0.3V to 6V VFBA –0.3V to 140V VFBA to SENSE– –0.3V to 0.3V SENSE+, SENSE– –0.3V to 140V SENSE+ to SENSE– Continuous –0.3V to 6V SENSE+ to SENSE– < 1ms -100mA to 100mA Operating Junction Temperature Range
2
–40°C to 150°C Storage Temperature Range –65°C to 150°C .1 Do not apply a voltage or current source to these pins. They must be connected to capacitive loads only. Otherwise, permanent damage can occur. 2 The LTC7899 is specified over the –40°C to 150°C operating junction temperature range. High junction temperatures degrade operating lifetimes. Note the maximum ambient temperature consistent with these specifications is determined by specific operating conditions in conjunction with the board layout, rated package thermal impedance, and other environmental factors. The junction temperature (TJ, in °C) is calculated from the ambient temperature (TA, in °C) and power dissipation (PD, in Watts) according to the following formula: TJ = TA + (PD × θJA), where θJA is the package thermal impedance and equals 43°C/W for the 28- lead (4mm × 5mm), quad flat no lead (QFN) package.
analog.com
