Datasheet ALDP105 (Panasonic) - 5
| Hersteller | Panasonic |
| Beschreibung | Compliant with IEC/EN60335-1, IEC/EN60079-15 1 Form A 5 A Slim power relays |
| Seiten / Seite | 10 / 5 — CAD |
| Dateiformat / Größe | PDF / 205 Kb |
| Dokumentensprache | Englisch |
CAD
Modelllinie für dieses Datenblatt
Textversion des Dokuments

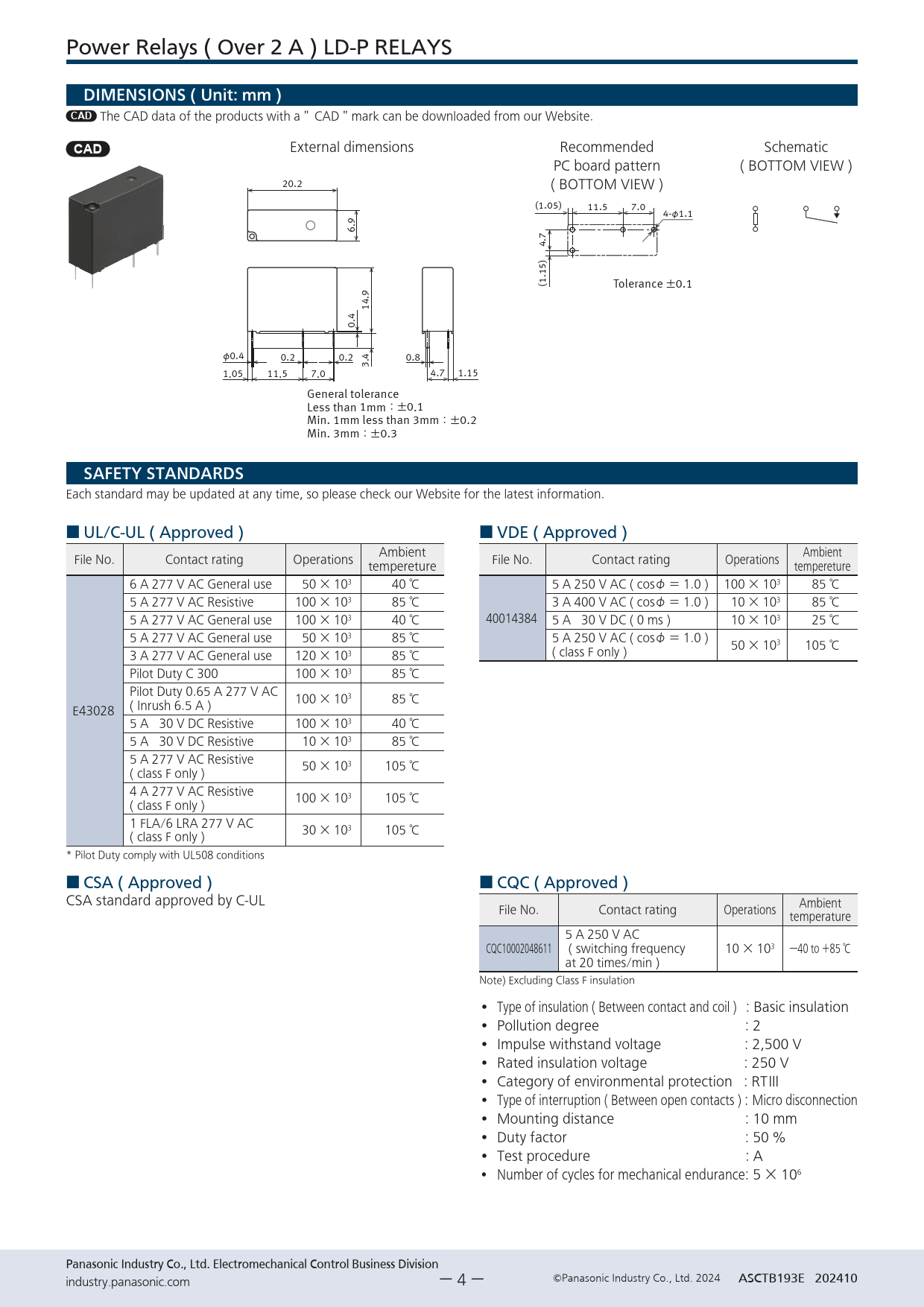

Power Relays ( Over 2 A ) LD-P RELAYS DIMENSIONS ( Unit: mm )
CAD
The CAD data of the products with a CAD mark can be downloaded from our Website.
CAD
External dimensions Recommended Schematic PC board pattern ( BOTTOM VIEW ) 20.2 ( BOTTOM VIEW ) (1.05) 11.5 7.0 9 4-φ1.1 6. 7 4. ) 15 1.( Tolerance ±0.1 9. 14 4 0. φ0.4 0.2 0.2 4 0.8 3. 1.05 11.5 7.0 4.7 1.15 General tolerance Less than 1mm：±0.1 Min. 1mm less than 3mm：±0.2 Min. 3mm：±0.3 SAFETY STANDARDS Each standard may be updated at any time, so please check our Website for the latest information. ■ UL/C-UL ( Approved ) ■ VDE ( Approved ) Ambient Ambient File No. Contact rating Operations File No. Contact rating Operations tempereture tempereture 6 A 277 V AC General use 50 × 103 40 ℃ 5 A 250 V AC ( cosφ ＝ 1.0 ) 100 × 103 85 ℃ 5 A 277 V AC Resistive 100 × 103 85 ℃ 3 A 400 V AC ( cosφ ＝ 1.0 ) 10 × 103 85 ℃ 5 A 277 V AC General use 100 × 103 40 ℃ 40014384 5 A 30 V DC ( 0 ms ) 10 × 103 25 ℃ 5 A 277 V AC General use 50 × 103 85 ℃ 5 A 250 V AC ( cosφ ＝ 1.0 ) 50 × 103 105 ℃ 3 A 277 V AC General use 120 × 103 85 ℃ ( class F only ) Pilot Duty C 300 100 × 103 85 ℃ Pilot Duty 0.65 A 277 V AC 100 × 103 85 ℃ E43028 ( Inrush 6.5 A ) 5 A 30 V DC Resistive 100 × 103 40 ℃ 5 A 30 V DC Resistive 10 × 103 85 ℃ 5 A 277 V AC Resistive 50 × 103 105 ℃ ( class F only ) 4 A 277 V AC Resistive 100 × 103 105 ℃ ( class F only ) 1 FLA/6 LRA 277 V AC 30 × 103 105 ℃ ( class F only ) * Pilot Duty comply with UL508 conditions ■ CSA ( Approved ) ■ CQC ( Approved ) CSA standard approved by C-UL Ambient File No. Contact rating Operations temperature 5 A 250 V AC CQC10002048611 ( switching frequency 10 × 103 ―40 to ＋85 ℃ at 20 times/min ) Note) Excluding Class F insulation • Type of insulation ( Between contact and coil ) : Basic insulation • Pollution degree : 2 • Impulse withstand voltage : 2,500 V • Rated insulation voltage : 250 V • Category of environmental protection : RTⅢ • Type of interruption ( Between open contacts ) : Micro disconnection • Mounting distance : 10 mm • Duty factor : 50 % • Test procedure : A • Number of cycles for mechanical endurance: 5 × 106 Panasonic Industry Co., Ltd. Electromechanical Control Business Division industry.panasonic.com Panasonic Industry Co., Ltd. 2024 ASCTB193E 202410 ー 4 ー
