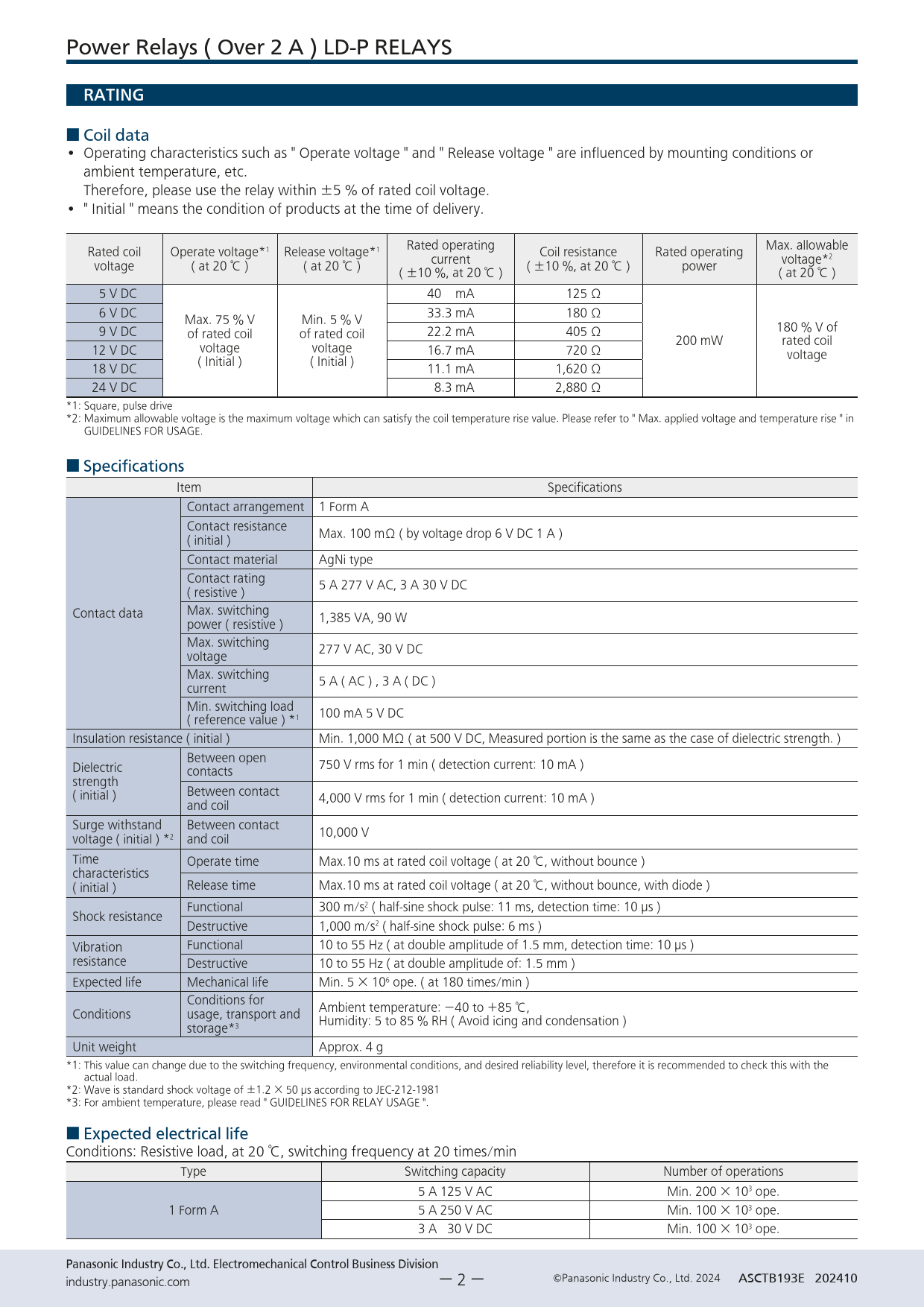

Datasheet ALDP105 (Panasonic) - 3

Power Relays ( Over 2 A ) LD-P RELAYS RATING ■ Coil data • Operating characteristics such as " Operate voltage " and " Release voltage " are influenced by mounting conditions or ambient temperature, etc. Therefore, please use the relay within ±5 % of rated coil voltage. • " Initial " means the condition of products at the time of delivery. Rated operating Max. allowable Rated coil Operate voltage*1 Release voltage*1 Coil resistance Rated operating current voltage*2 voltage ( at 20 ℃ ) ( at 20 ℃ ) ( ±10 ％, at 20 ℃ ) power ( ±10 ％, at 20 ℃ ) ( at 20 ℃ ) 5 V DC 40 mA 125 Ω 6 V DC 33.3 mA 180 Ω Max. 75 ％ V Min. 5 ％ V 180 ％ V of 9 V DC of rated coil of rated coil 22.2 mA 405 Ω 200 mW rated coil voltage voltage 12 V DC 16.7 mA 720 Ω voltage ( Initial ) ( Initial ) 18 V DC 11.1 mA 1,620 Ω 24 V DC 8.3 mA 2,880 Ω *1: Square, pulse drive *2: Maximum allowable voltage is the maximum voltage which can satisfy the coil temperature rise value. Please refer to " Max. applied voltage and temperature rise " in GUIDELINES FOR USAGE. ■ Specifications Item Specifications Contact arrangement 1 Form A Contact resistance Max. 100 mΩ ( by voltage drop 6 V DC 1 A ) ( initial ) Contact material AgNi type Contact rating 5 A 277 V AC, 3 A 30 V DC ( resistive ) Contact data Max. switching 1,385 VA, 90 W power ( resistive ) Max. switching 277 V AC, 30 V DC voltage Max. switching 5 A ( AC ) , 3 A ( DC ) current Min. switching load 100 mA 5 V DC ( reference value ) *1 Insulation resistance ( initial ) Min. 1,000 MΩ ( at 500 V DC, Measured portion is the same as the case of dielectric strength. ) Between open Dielectric 750 V rms for 1 min ( detection current: 10 mA ) contacts strength ( initial ) Between contact 4,000 V rms for 1 min ( detection current: 10 mA ) and coil Surge withstand Between contact 10,000 V voltage ( initial ) *2 and coil Time Operate time Max.10 ms at rated coil voltage ( at 20 ℃, without bounce ) characteristics ( initial ) Release time Max.10 ms at rated coil voltage ( at 20 ℃, without bounce, with diode ) Functional 300 m/s2 ( half-sine shock pulse: 11 ms, detection time: 10 µs ) Shock resistance Destructive 1,000 m/s2 ( half-sine shock pulse: 6 ms ) Vibration Functional 10 to 55 Hz ( at double amplitude of 1.5 mm, detection time: 10 µs ) resistance Destructive 10 to 55 Hz ( at double amplitude of: 1.5 mm ) Expected life Mechanical life Min. 5 × 106 ope. ( at 180 times/min ) Conditions for Ambient temperature: −40 to ＋85 ℃, Conditions usage, transport and Humidity: 5 to 85 ％ RH ( Avoid icing and condensation ) storage*3 Unit weight Approx. 4 g *1: This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the actual load. *2: Wave is standard shock voltage of ±1.2 × 50 µs according to JEC-212-1981 *3: For ambient temperature, please read " GUIDELINES FOR RELAY USAGE ". ■ Expected electrical life Conditions: Resistive load, at 20 ℃, switching frequency at 20 times/min Type Switching capacity Number of operations 5 A 125 V AC Min. 200 × 103 ope. 1 Form A 5 A 250 V AC Min. 100 × 103 ope. 3 A 30 V DC Min. 100 × 103 ope. Panasonic Industry Co., Ltd. Electromechanical Control Business Division industry.panasonic.com Panasonic Industry Co., Ltd. 2024 ASCTB193E 202410 ー 2 ー
