Datasheet MB10F (Diodes)
| Hersteller | Diodes |
| Beschreibung | 0.8A Surface Mount Glass Passivated Bridge Rectifier in MBF package |
| Seiten / Seite | 5 / 1 — Green. MB10F. 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER. … |
| Dateiformat / Größe | PDF / 570 Kb |
| Dokumentensprache | Englisch |
Green. MB10F. 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER. Product Summary. Features and Benefits. RRM (V). IO (A). VF (V)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

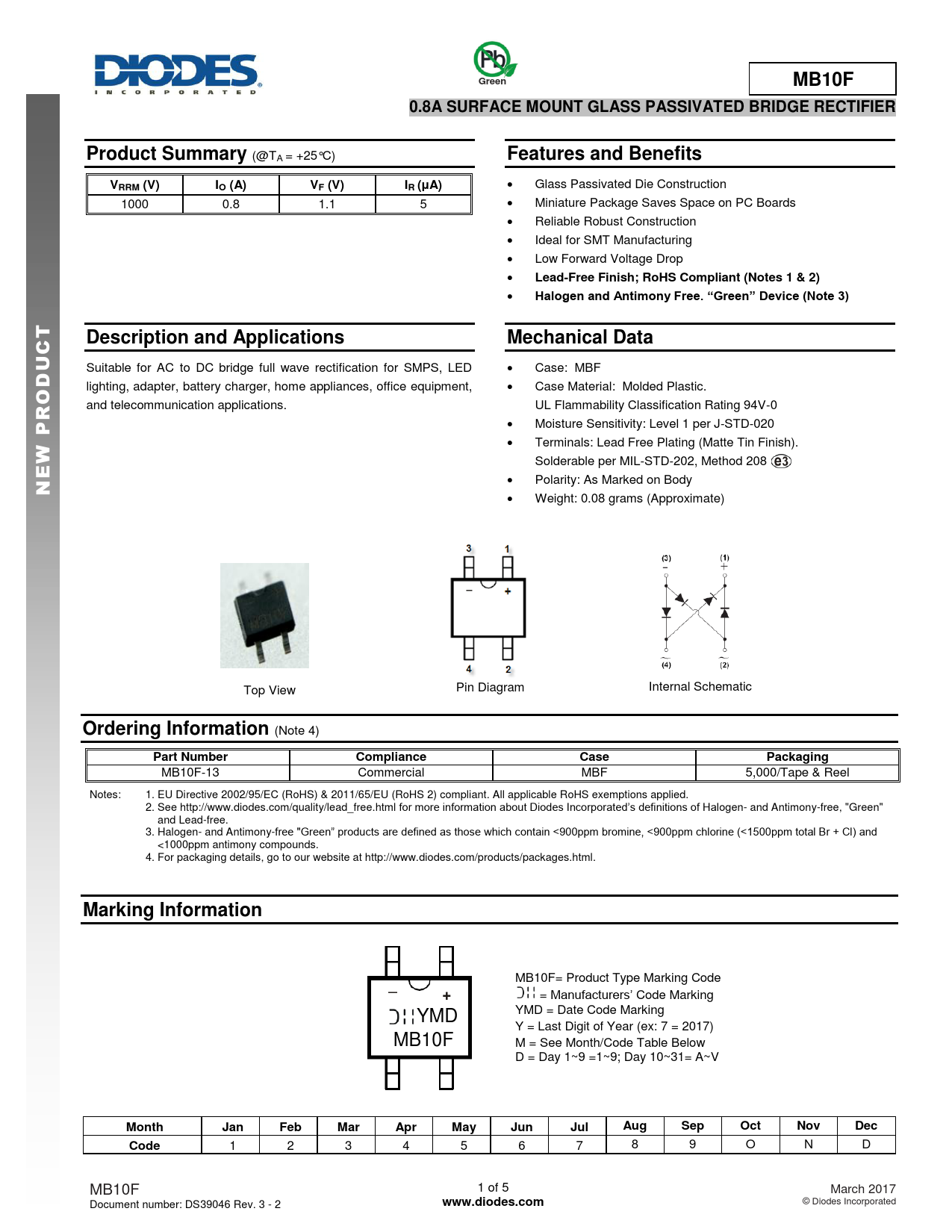

Green MB10F 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Product Summary
(@TA = +25°C)
Features and Benefits V RRM (V) IO (A) VF (V) IR (μA)
Glass Passivated Die Construction 1000 0.8 1.1 5 Miniature Package Saves Space on PC Boards Reliable Robust Construction
N
Ideal for SMT Manufacturing
OI
Low Forward Voltage Drop
T Lead-Free Finish; RoHS Compliant (Notes 1 & 2) A Halogen and Antimony Free. “Green” Device (Note 3) M RT OC Description and Applications Mechanical Data FU N
Suitable for AC to DC bridge full wave rectification for SMPS, LED Case: MBF
ID O
lighting, adapter, battery charger, home appliances, office equipment, Case Material: Molded Plastic.
DR
and telecommunication applications. UL Flammability Classification Rating 94V-0
EP
Moisture Sensitivity: Level 1 per J-STD-020
C
Terminals: Lead Free Plating (Matte Tin Finish).
NW
Solderable per MIL-STD-202, Method 208
AE VN
Polarity: As Marked on Body
D
Weight: 0.08 grams (Approximate)
A
Pin D Top View iagram Internal Schematic
Ordering Information
(Note 4)
Part Number Compliance Case Packaging
MB10F-13 Commercial MBF 5,000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
MB10F= Product Type Marking Code
_ +
= Manufacturers’ Code Marking YMD = Date Code Marking YMD Y = Last Digit of Year (ex: 7 = 2017) MB10F M = See Month/Code Table Below D = Day 1~9 =1~9; Day 10~31= A~V
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D MB10F 1 of 5 March 2017 Document number: DS39046 Rev. 3 - 2
