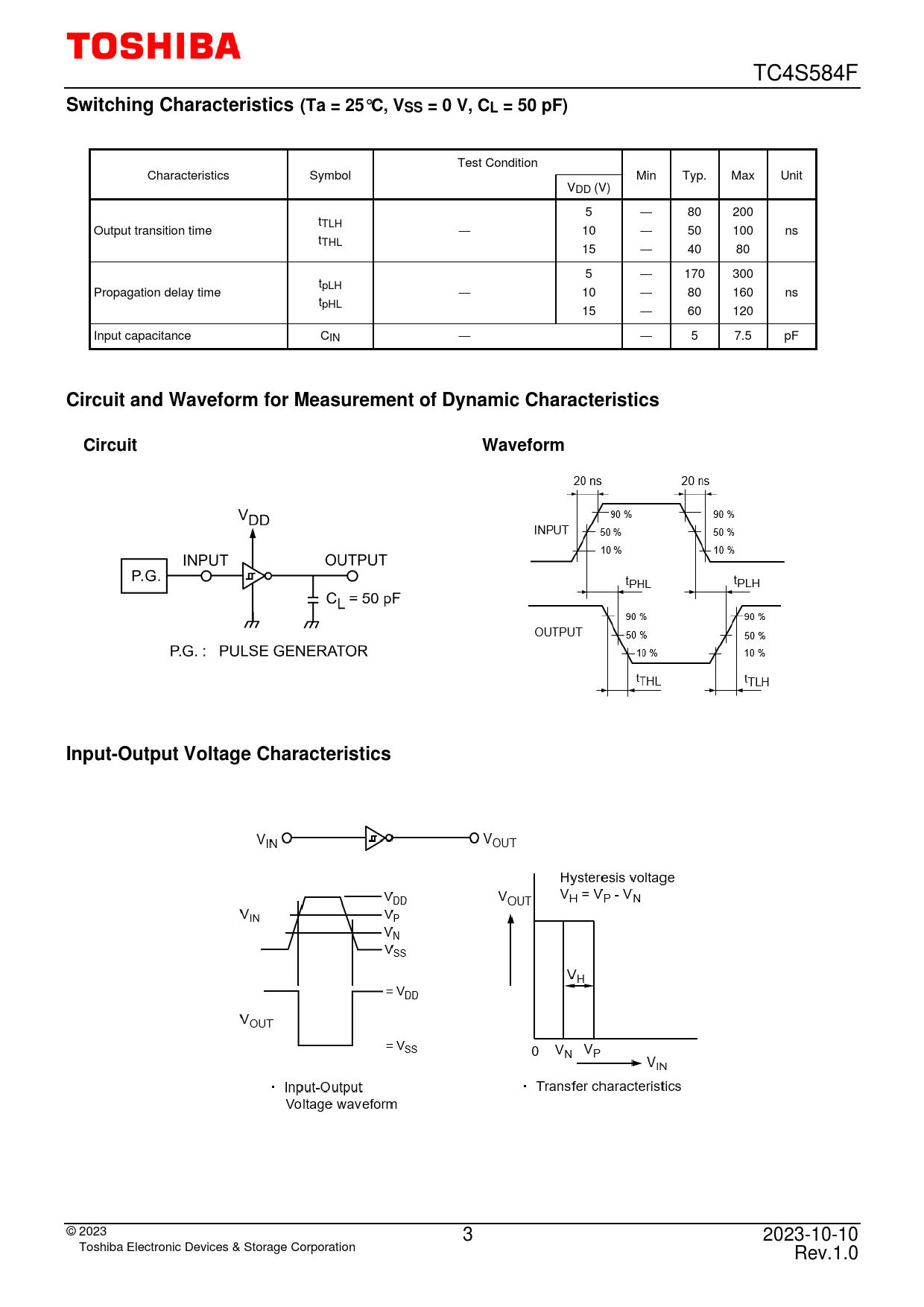

Switching Characteristics (Ta = 25°C, VSS = 0 V, CL = 50 pF)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TC4S584F
Switching Characteristics (Ta = 25°C, VSS = 0 V, CL = 50 pF)
Test Condition Characteristics Symbol Min Typ. Max Unit VDD (V) 5 ― 80 200 tTLH Output transition time ― 10 ― 50 100 ns tTHL 15 ― 40 80 5 ― 170 300 tpLH Propagation delay time ― 10 ― 80 160 ns tpHL 15 ― 60 120 Input capacitance CIN ― ― 5 7.5 pF
Circuit and Waveform for Measurement of Dynamic Characteristics Circuit Waveform Input-Output Voltage Characteristics
© 2023 3 2023-10-10 Toshiba Electronic Devices & Storage Corporation Rev.1.0
Switching Characteristics (Ta = 25°C, VSS = 0 V, CL = 50 pF)
Test Condition Characteristics Symbol Min Typ. Max Unit VDD (V) 5 ― 80 200 tTLH Output transition time ― 10 ― 50 100 ns tTHL 15 ― 40 80 5 ― 170 300 tpLH Propagation delay time ― 10 ― 80 160 ns tpHL 15 ― 60 120 Input capacitance CIN ― ― 5 7.5 pF
Circuit and Waveform for Measurement of Dynamic Characteristics Circuit Waveform Input-Output Voltage Characteristics
© 2023 3 2023-10-10 Toshiba Electronic Devices & Storage Corporation Rev.1.0
