Datasheet XL4015 (XLSemi) - 7
| Hersteller | XLSemi |
| Beschreibung | 5A, 180KHz, 36V Buck DC to DC Converter in TO263-5L package |
| Seiten / Seite | 10 / 7 — Datasheet. 5A 180KHz 36V Buck DC to DC Converter XL4015. Typical System … |
| Dateiformat / Größe | PDF / 255 Kb |
| Dokumentensprache | Englisch |
Datasheet. 5A 180KHz 36V Buck DC to DC Converter XL4015. Typical System Application (VOUT=12V/4A)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Datasheet 5A 180KHz 36V Buck DC to DC Converter XL4015 Typical System Application (VOUT=12V/4A)

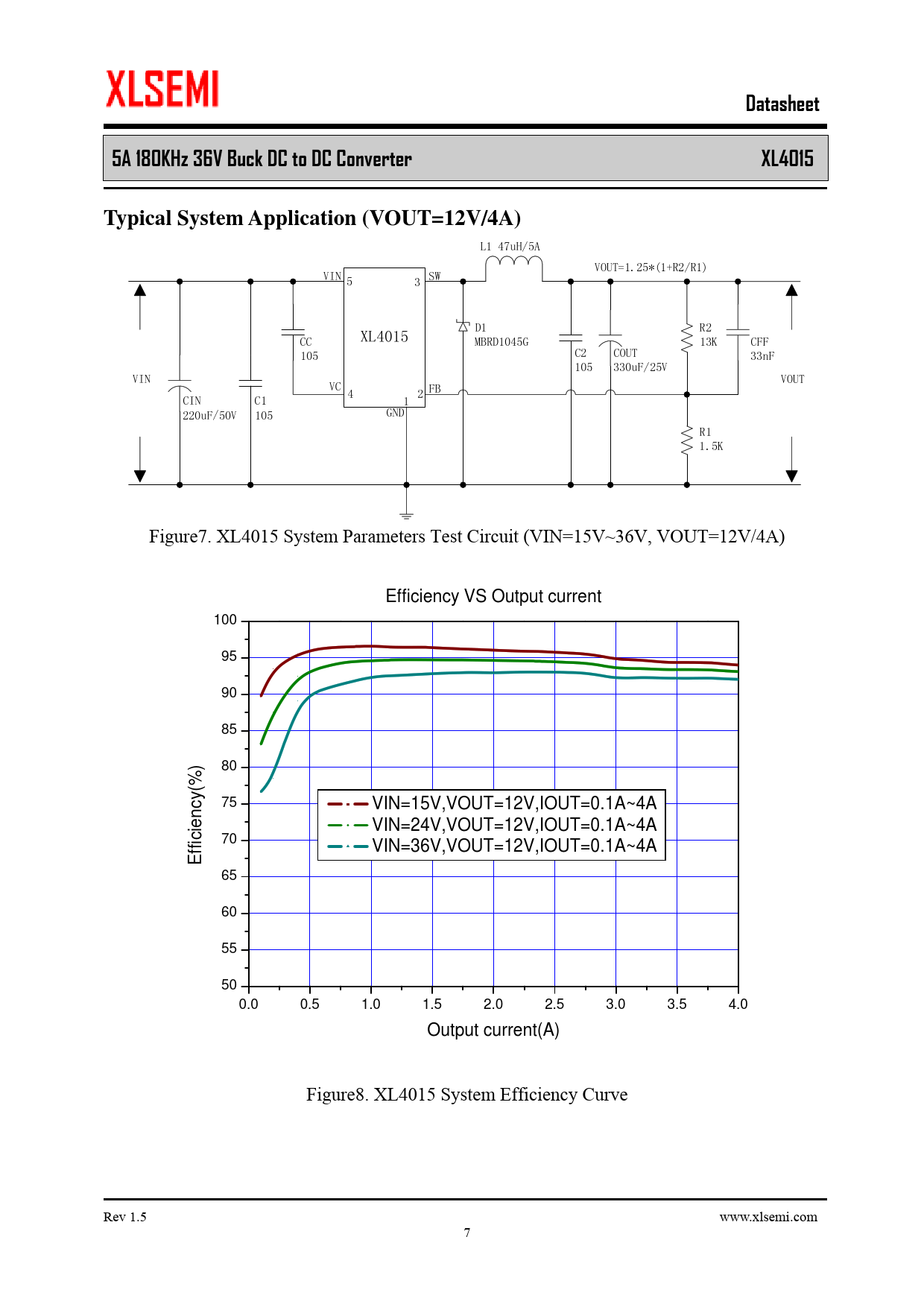

Figure7. XL4015 System Parameters Test Circuit (VIN=15V~36V, VOUT=12V/4A) Efficiency VS Output current 100 95 90 85 ) 80 (% cy 75 VIN=15V,VOUT=12V,IOUT=0.1A~4A en VIN=24V,VOUT=12V,IOUT=0.1A~4A 70 ffici VIN=36V,VOUT=12V,IOUT=0.1A~4A E 65 60 55 50 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 Output current(A) Figure8. XL4015 System Efficiency Curve Rev 1.5 www.xlsemi.com 7
Figure7. XL4015 System Parameters Test Circuit (VIN=15V~36V, VOUT=12V/4A) Efficiency VS Output current 100 95 90 85 ) 80 (% cy 75 VIN=15V,VOUT=12V,IOUT=0.1A~4A en VIN=24V,VOUT=12V,IOUT=0.1A~4A 70 ffici VIN=36V,VOUT=12V,IOUT=0.1A~4A E 65 60 55 50 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 Output current(A) Figure8. XL4015 System Efficiency Curve Rev 1.5 www.xlsemi.com 7
