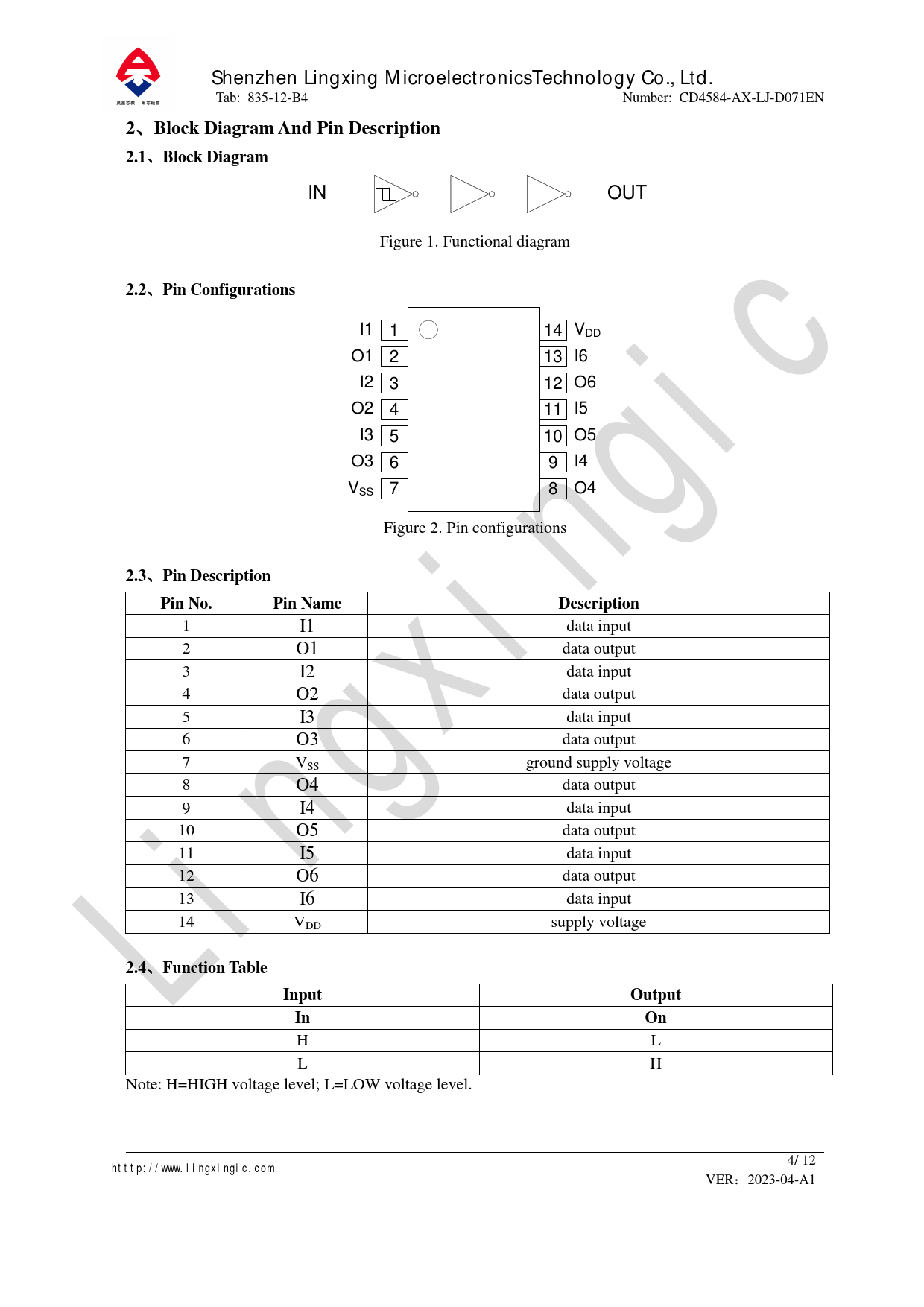

深圳市灵星芯微电子科技有限公司 Shenzhen Lingxing MicroelectronicsTechnology Co., Ltd. Tab: 835-12-B4 Number: CD4584-AX-LJ-D071EN
2
、
Block Diagram And Pin Description 2.1
、
Block Diagram
IN OUT Figure 1. Functional diagram
2.2
、
Pin Configurations
I1 1 14 VDD O1 2 13 I6 I2 3 12 O6 O2 4 11 I5 I3 5 10 O5 O3 6 9 I4 VSS 7 8 O4 Figure 2. Pin configurations
2.3
、
Pin Description Pin No. Pin Name Description
1 I1 data input 2 O1 data output 3 I2 data input 4 O2 data output 5 I3 data input 6 O3 data output 7 VSS ground supply voltage 8 O4 data output 9 I4 data input 10 O5 data output 11 I5 data input 12 O6 data output 13 I6 data input 14 VDD supply voltage Lingxingic
2.4
、
Function Table Input Output In On
H L L H Note: H=HIGH voltage level; L=LOW voltage level. 4/ 12 htttp://www.lingxingic.com VER：2023-04-A1
