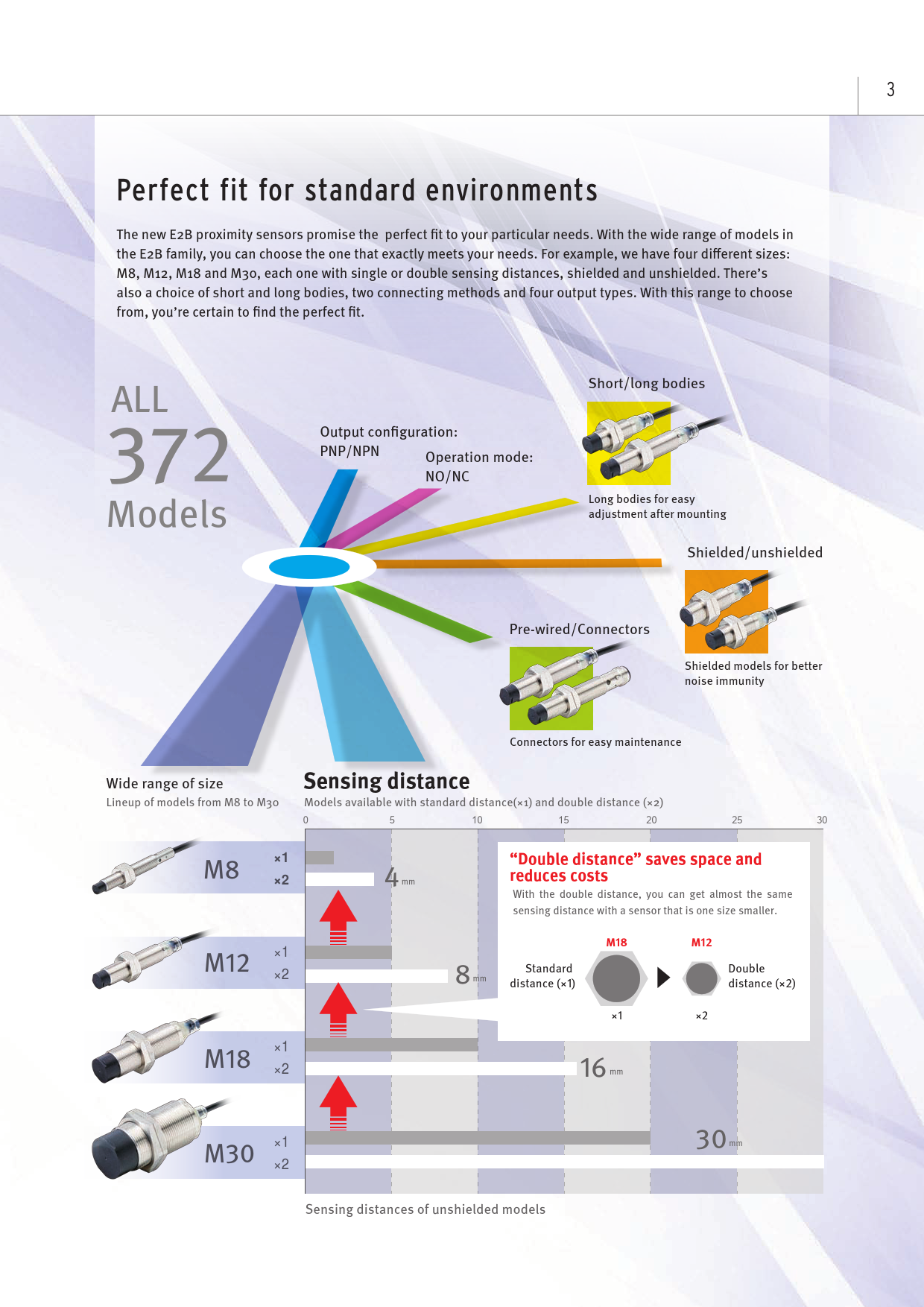

3 Perfect fit for standard environments The new E2B proximity sensors promise the perfect fit to your particular needs. With the wide range of models in the E2B family, you can choose the one that exactly meets your needs. For example, we have four different sizes: M8, M12, M18 and M30, each one with single or double sensing distances, shielded and unshielded. There’s also a choice of short and long bodies, two connecting methods and four output types. With this range to choose from, you’re certain to find the perfect fit. Short/long bodies ALL Output configuration: PNP/NPN Operation mode: 372 NO/NC Long bodies for easy adjustment after mounting Models Shielded/unshielded Pre-wired/Connectors Shielded models for better noise immunity Connectors for easy maintenance Wide range of size
Sensing distance
Lineup of models from M8 to M30 Models available with standard distance(×1) and double distance (×2) 0 5 10 15 20 25 30
×1
M8
“Double distance” saves space and ×2
4
reduces costs
mm With the double distance, you can get almost the same sensing distance with a sensor that is one size smaller.
×1 M18 M12
M12
×2
8 Standard Double mm distance (×1) distance (×2) ×1 ×2
×1
M18
×2
16mm
×1
30mm M30
×2
Sensing distances of unshielded models
