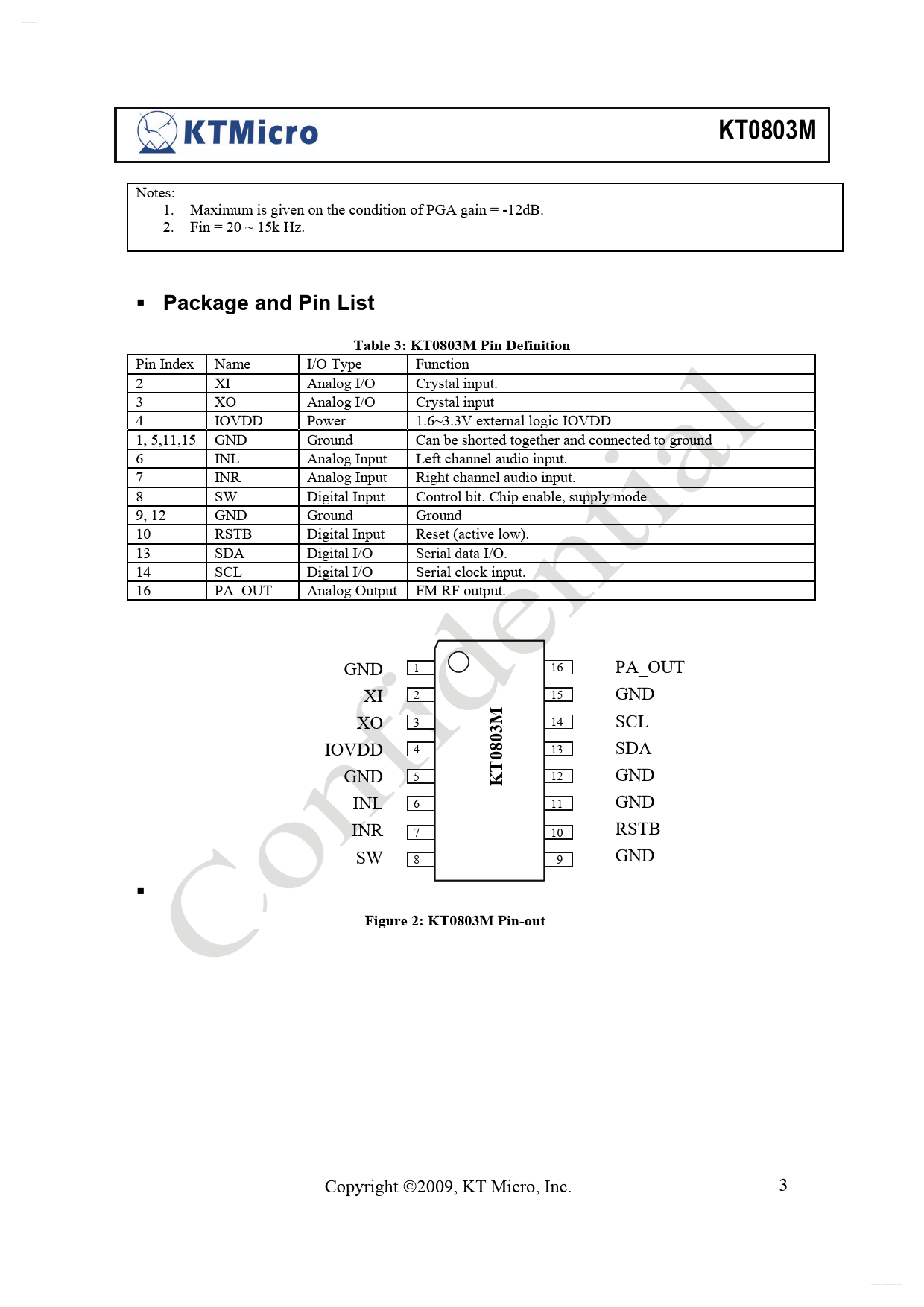

KT0803M. Package and Pin List. Table 3: KT0803M Pin Definition. 03M. KT08. Figure 2: KT0803M Pin-out
Modelllinie für dieses Datenblatt
Textversion des Dokuments
www.DataSheet.co.kr
KT0803M
Notes: 1. Maximum is given on the condition of PGA gain = -12dB. 2. Fin = 20 ~ 15k Hz.
Package and Pin List Table 3: KT0803M Pin Definition
Pin Index Name I/O Type Function 2 XI Analog I/O Crystal input. 3 XO Analog I/O Crystal input 4 IOVDD Power 1.6~3.3V external logic IOVDD 1, 5,11,15 GND Ground Can be shorted together and connected to ground 6 INL Analog Input Left channel audio input. 7 INR Analog Input Right channel audio input. 8 SW Digital Input Control bit. Chip enable, supply mode 9, 12 GND Ground Ground 10 RSTB Digital Input Reset (active low). 13 SDA Digital I/O Serial data I/O. 14 SCL Digital I/O Serial clock input. 16 PA_OUT Analog Output FM RF output. 1 16 GND PA_OUT 2 15 XI GND XO 3 14 SCL
03M
IOVDD 4 13 SDA GND 5 12 GND
KT08
INL 6 11 GND INR 7 10 RSTB SW 8 9 GND
Figure 2: KT0803M Pin-out
Copyright ©2009, KT Micro, Inc. 3 Datasheet pdf - http://www.DataSheet4U.net/
