Register Description R820T2 (Rafael Micro) - 4
| Hersteller | Rafael Micro |
| Beschreibung | High Performance Low Power Advanced Digital TV Silicon Tuner in QFN-24 package |
| Seiten / Seite | 11 / 4 — Read Mode |
| Dateiformat / Größe | PDF / 229 Kb |
| Dokumentensprache | Englisch |
Read Mode
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Read Mode

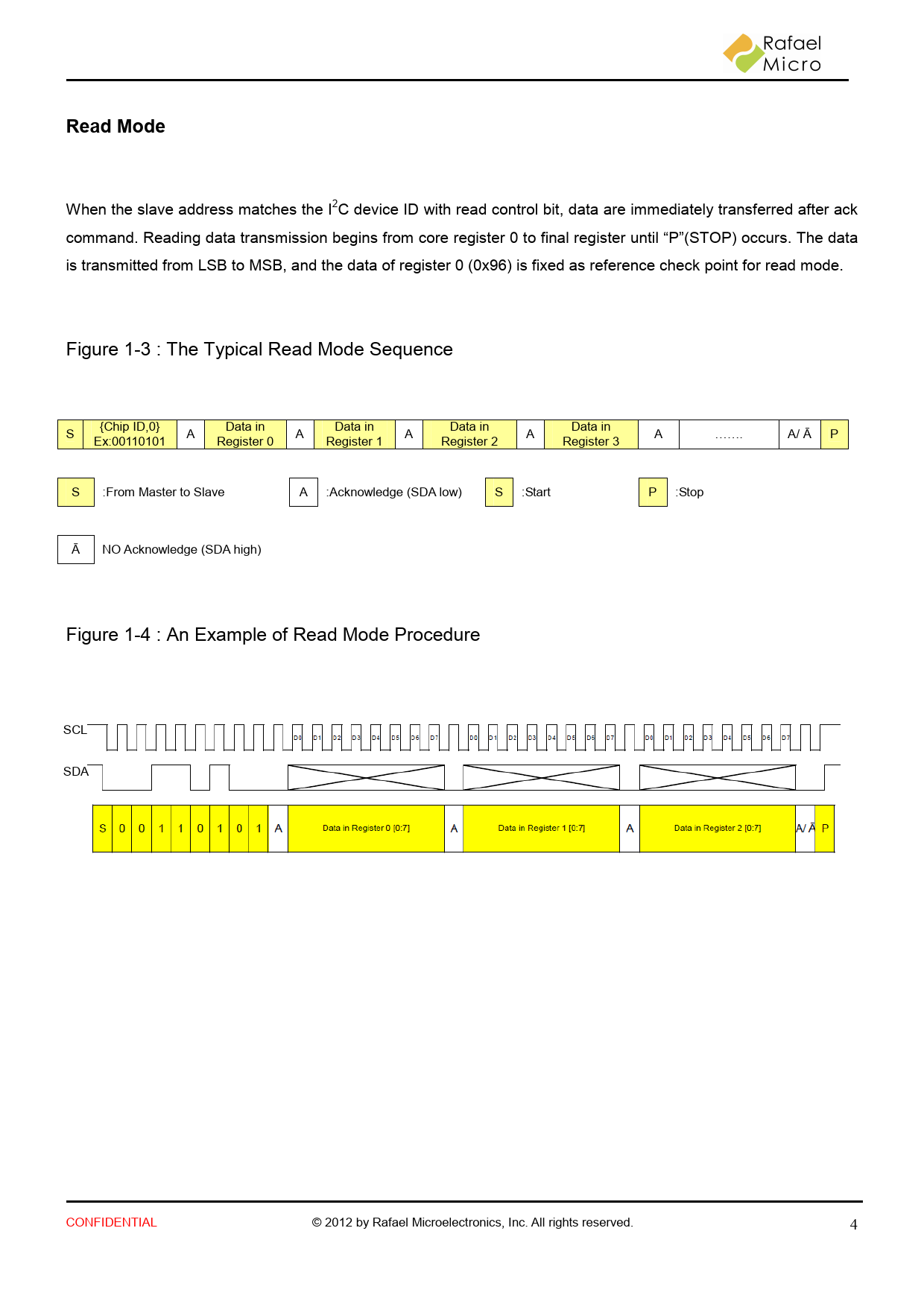

When the slave address matches the I2C device ID with read control bit, data are immediately transferred after ack command. Reading data transmission begins from core register 0 to final register until “P”(STOP) occurs. The data is transmitted from LSB to MSB, and the data of register 0 (0x96) is fixed as reference check point for read mode. Figure 1-3 : The Typical Read Mode Sequence {Chip ID,0} Data in Data in Data in Data in S A A A A A EE. A/ Ā P Ex:00110101 Register 0 Register 1 Register 2 Register 3 S :From Master to Slave A :Acknowledge (SDA low) S :Start P :Stop Ā NO Acknowledge (SDA high) Figure 1-4 : An Example of Read Mode Procedure SCL SDA CONFIDENTIAL © 2012 by Rafael Microelectronics, Inc. All rights reserved. 4
When the slave address matches the I2C device ID with read control bit, data are immediately transferred after ack command. Reading data transmission begins from core register 0 to final register until “P”(STOP) occurs. The data is transmitted from LSB to MSB, and the data of register 0 (0x96) is fixed as reference check point for read mode. Figure 1-3 : The Typical Read Mode Sequence {Chip ID,0} Data in Data in Data in Data in S A A A A A EE. A/ Ā P Ex:00110101 Register 0 Register 1 Register 2 Register 3 S :From Master to Slave A :Acknowledge (SDA low) S :Start P :Stop Ā NO Acknowledge (SDA high) Figure 1-4 : An Example of Read Mode Procedure SCL SDA CONFIDENTIAL © 2012 by Rafael Microelectronics, Inc. All rights reserved. 4
