PRELIMINARY VERSION. Functional Block Diagram. Quick Reference Data. Typical figures
Modelllinie für dieses Datenblatt
Textversion des Dokuments
PRELIMINARY VERSION Functional Block Diagram

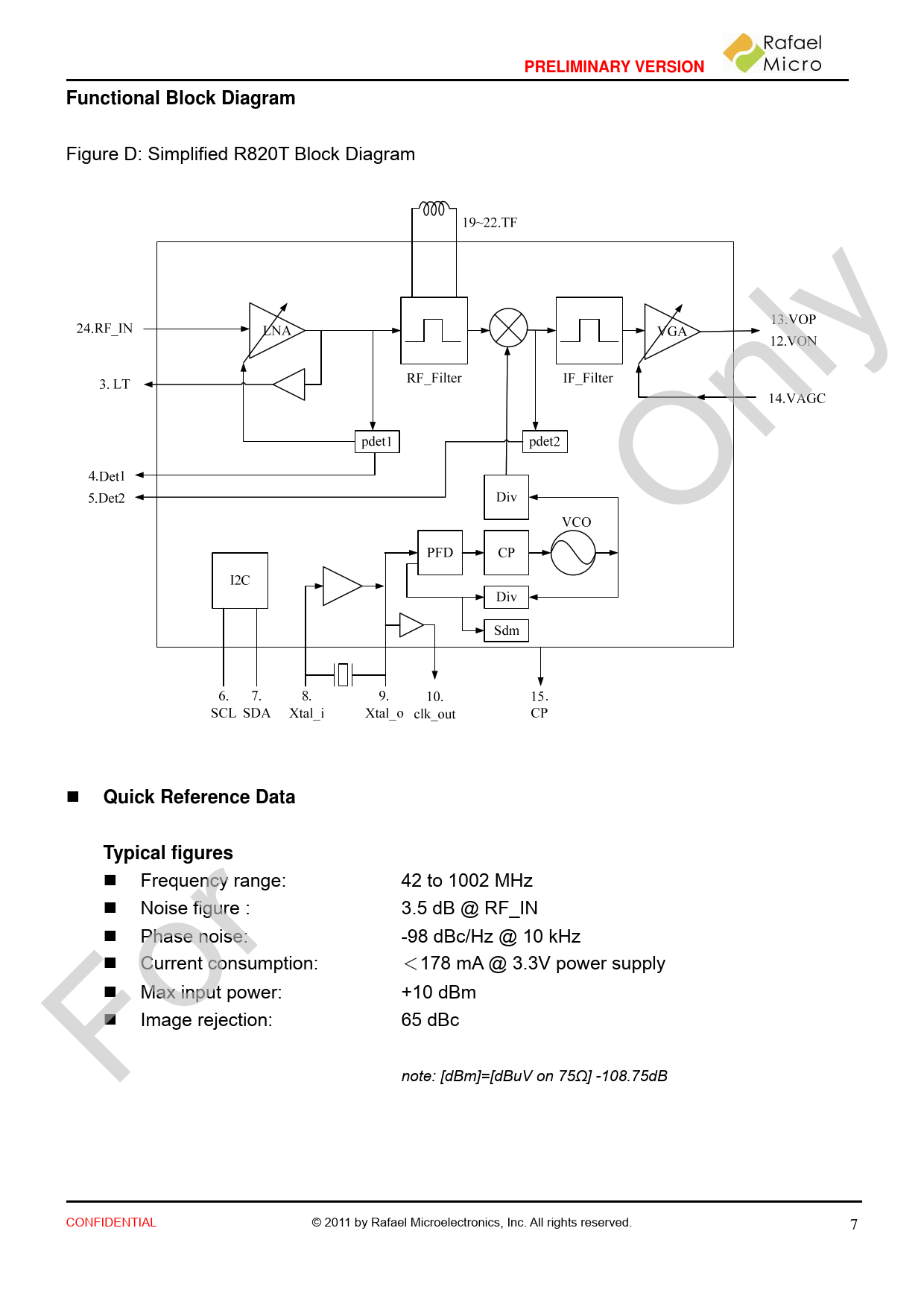

Figure D: Simplified R820T Block Diagram Only 美達
Quick Reference Data
安
Typical figures
Frequency range: 42 to 1002 MHz Noise figure : 3.5 dB @ RF_IN Phase noise: -98 dBc/Hz @ 10 kHz Current consumption: ＜178 mA @ 3.3V power supply Max input power: +10 dBm Image rejection: 65 dBc For note: [dBm]=[dBuV on 75Ω] -108.75dB CONFIDENTIAL © 2011 by Rafael Microelectronics, Inc. All rights reserved. 7
Figure D: Simplified R820T Block Diagram Only 美達
Quick Reference Data
安
Typical figures
Frequency range: 42 to 1002 MHz Noise figure : 3.5 dB @ RF_IN Phase noise: -98 dBc/Hz @ 10 kHz Current consumption: ＜178 mA @ 3.3V power supply Max input power: +10 dBm Image rejection: 65 dBc For note: [dBm]=[dBuV on 75Ω] -108.75dB CONFIDENTIAL © 2011 by Rafael Microelectronics, Inc. All rights reserved. 7
