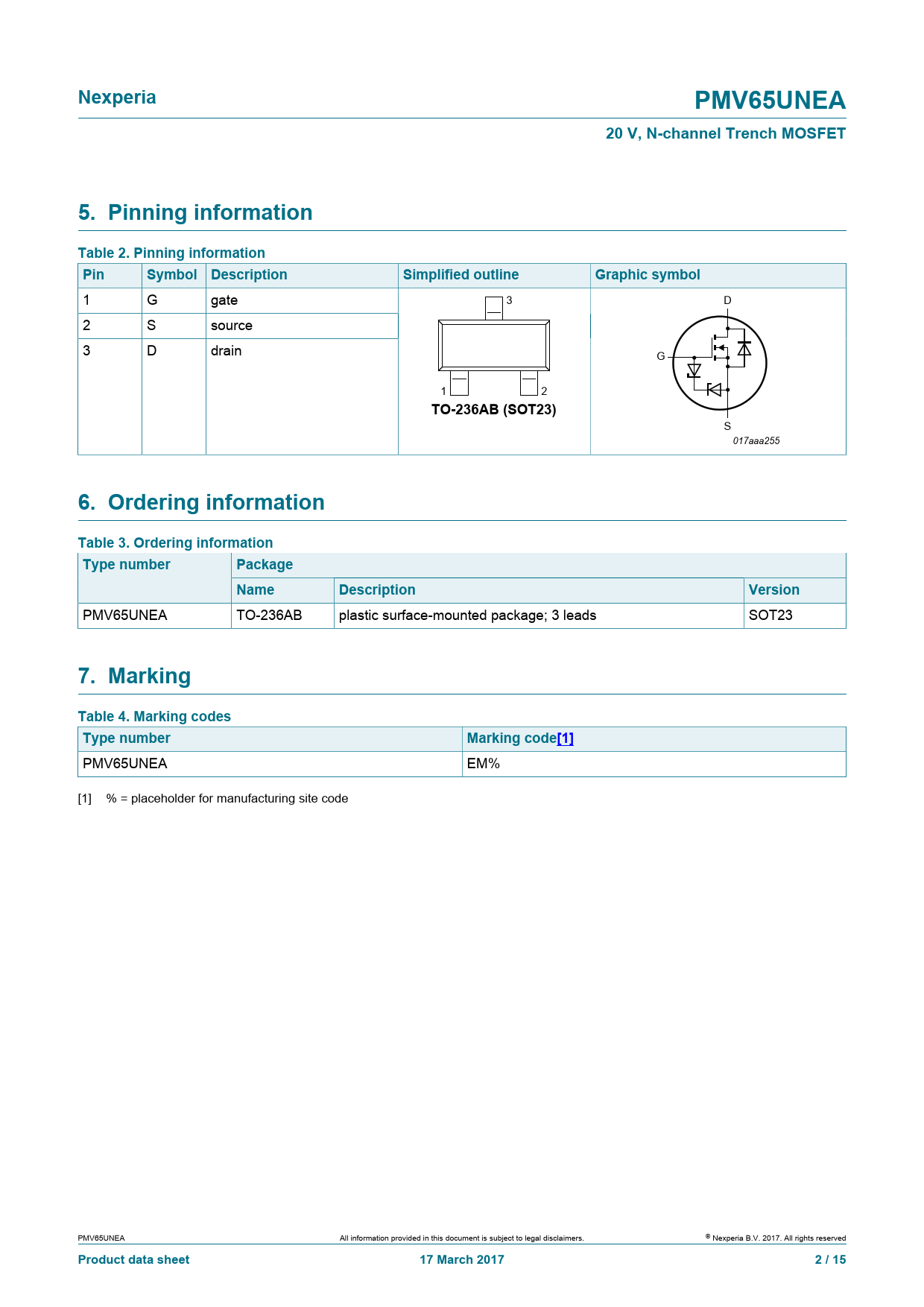

Nexperia PMV65UNEA 20 V, N-channel Trench MOSFET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate 3 D 2 S source 3 D drain G 1 2
TO-236AB (SOT23)
S 017aaa255
6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMV65UNEA TO-236AB plastic surface-mounted package; 3 leads SOT23
7. Marking Table 4. Marking codes Type number Marking code[1]
PMV65UNEA EM% [1] % = placeholder for manufacturing site code PMV65UNEA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
