Datasheet DMMT3904W (Diodes)
| Hersteller | Diodes |
| Beschreibung | Dual NPN, 40V, 0.2A, SOT363 |
| Seiten / Seite | 6 / 1 — DMMT3904W. 40V MATCHED PAIR NPN SMALL SIGNAL TRANSISTOR IN SOT363. … |
| Dateiformat / Größe | PDF / 619 Kb |
| Dokumentensprache | Englisch |
DMMT3904W. 40V MATCHED PAIR NPN SMALL SIGNAL TRANSISTOR IN SOT363. Features. Mechanical Data
Modelllinie für dieses Datenblatt
Textversion des Dokuments

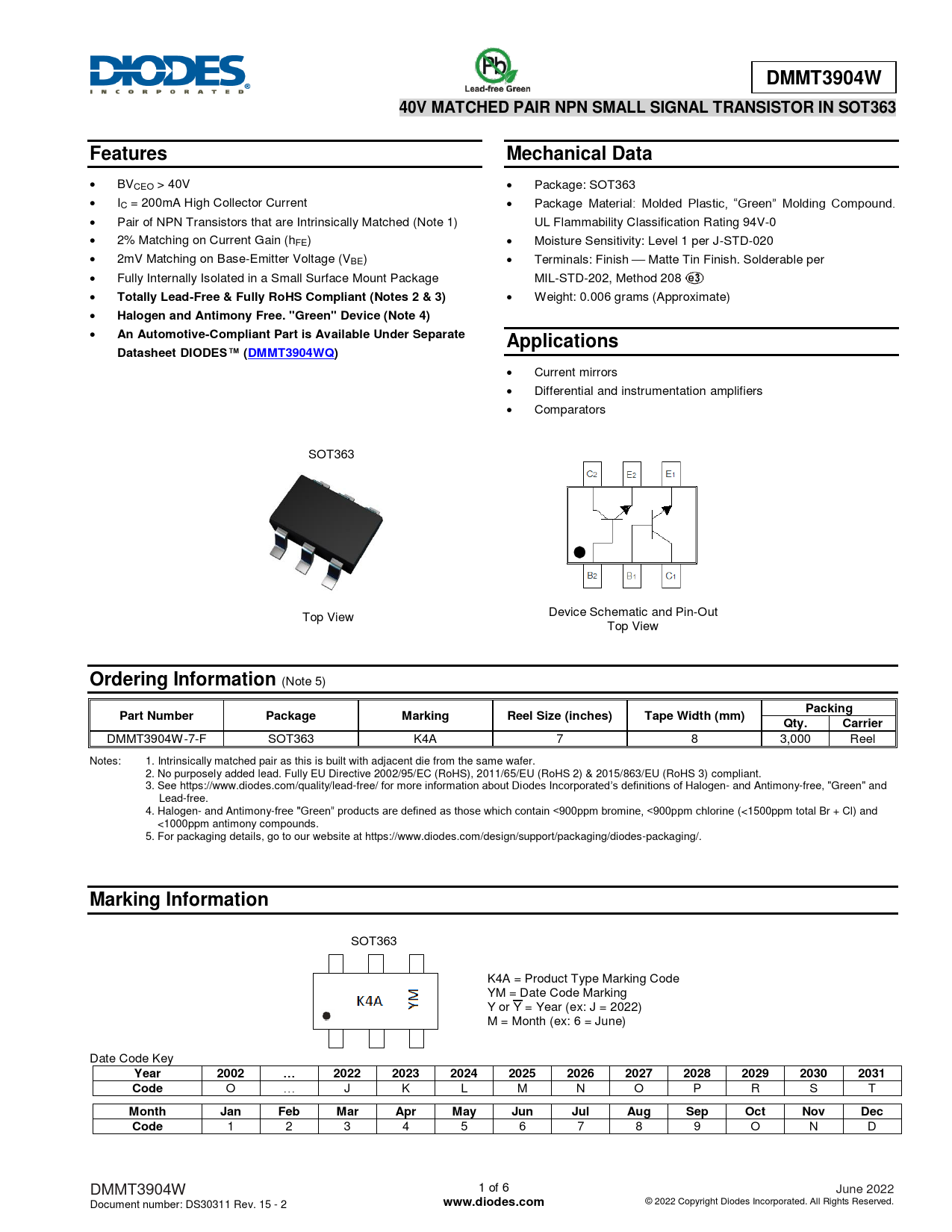

DMMT3904W 40V MATCHED PAIR NPN SMALL SIGNAL TRANSISTOR IN SOT363 Features Mechanical Data
BVCEO > 40V Package: SOT363 IC = 200mA High Collector Current Package Material: Molded Plastic, “Green” Molding Compound. Pair of NPN Transistors that are Intrinsically Matched (Note 1) UL Flammability Classification Rating 94V-0 2% Matching on Current Gain (hFE) Moisture Sensitivity: Level 1 per J-STD-020 2mV Matching on Base-Emitter Voltage (VBE) Terminals: Finish Matte Tin Finish. Solderable per Fully Internally Isolated in a Small Surface Mount Package MIL-STD-202, Method 208
Totally Lead-Free & Fully RoHS Compliant (Notes 2 & 3)
Weight: 0.006 grams (Approximate)
Halogen and Antimony Free. "Green" Device (Note 4) An Automotive-Compliant Part is Available Under Separate Applications Datasheet DIODES™ (DMMT3904WQ)
Current mirrors Differential and instrumentation amplifiers Comparators SOT363 Top View Device Schematic and Pin-Out Top View
Ordering Information
(Note 5)
Packing Part Number Package Marking Reel Size (inches) Tape Width (mm) Qty. Carrier
DMMT3904W -7-F SOT363 K4A 7 8 3,000 Reel Notes: 1. Intrinsically matched pair as this is built with adjacent die from the same wafer. 2. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 3. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 4. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SOT363 K4A = Product Type Marking Code YM = Date Code Marking Y or Y = Year (ex: J = 2022) M = Month (ex: 6 = June) Date Code Key
Year 2002 … 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 Code
O … J K L M N O P R S T
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D DMMT3904W 1 of 6 June 2022 Document number: DS30311 Rev. 15 - 2
