Datasheet P6KE (Taiwan Semiconductor)
| Hersteller | Taiwan Semiconductor |
| Beschreibung | 600W Unidirectional Transient Voltage Suppressor |
| Seiten / Seite | 8 / 1 — P6KE SERIES. 600W, 6.8V - 440V Transient Voltage Suppressor. FEATURES. … |
| Dateiformat / Größe | PDF / 494 Kb |
| Dokumentensprache | Englisch |
P6KE SERIES. 600W, 6.8V - 440V Transient Voltage Suppressor. FEATURES. KEY PARAMETERS. PARAMETER. VALUE. UNIT. APPLICATIONS
Modelllinie für dieses Datenblatt
- P6KE10 P6KE100 P6KE100A P6KE10A P6KE11 P6KE110 P6KE110A P6KE11A P6KE12 P6KE120 P6KE120A P6KE12A P6KE13 P6KE130 P6KE130A P6KE13A P6KE15 P6KE150 P6KE150A P6KE15A P6KE16 P6KE160 P6KE160A P6KE16A P6KE170 P6KE170A P6KE18 P6KE180 P6KE180A P6KE18A P6KE20 P6KE200 P6KE200A P6KE20A P6KE22 P6KE220 P6KE220A P6KE22A P6KE24 P6KE24A P6KE250 P6KE250A P6KE27 P6KE27A P6KE30 P6KE300 P6KE300A P6KE30A P6KE33 P6KE33A P6KE350 P6KE350A P6KE36 P6KE36A P6KE39 P6KE39A P6KE400 P6KE400A P6KE43 P6KE43A P6KE440 P6KE440A P6KE47 P6KE47A P6KE51 P6KE51A P6KE56 P6KE56A P6KE6.8 P6KE6.8A P6KE62 P6KE62A P6KE68 P6KE68A P6KE6V8A P6KE7.5 P6KE7.5A P6KE75 P6KE75A P6KE7V5A P6KE8.2 P6KE8.2A P6KE82 P6KE82A P6KE8V2A P6KE9.1 P6KE9.1A P6KE91 P6KE91A P6KE9V1A
Textversion des Dokuments

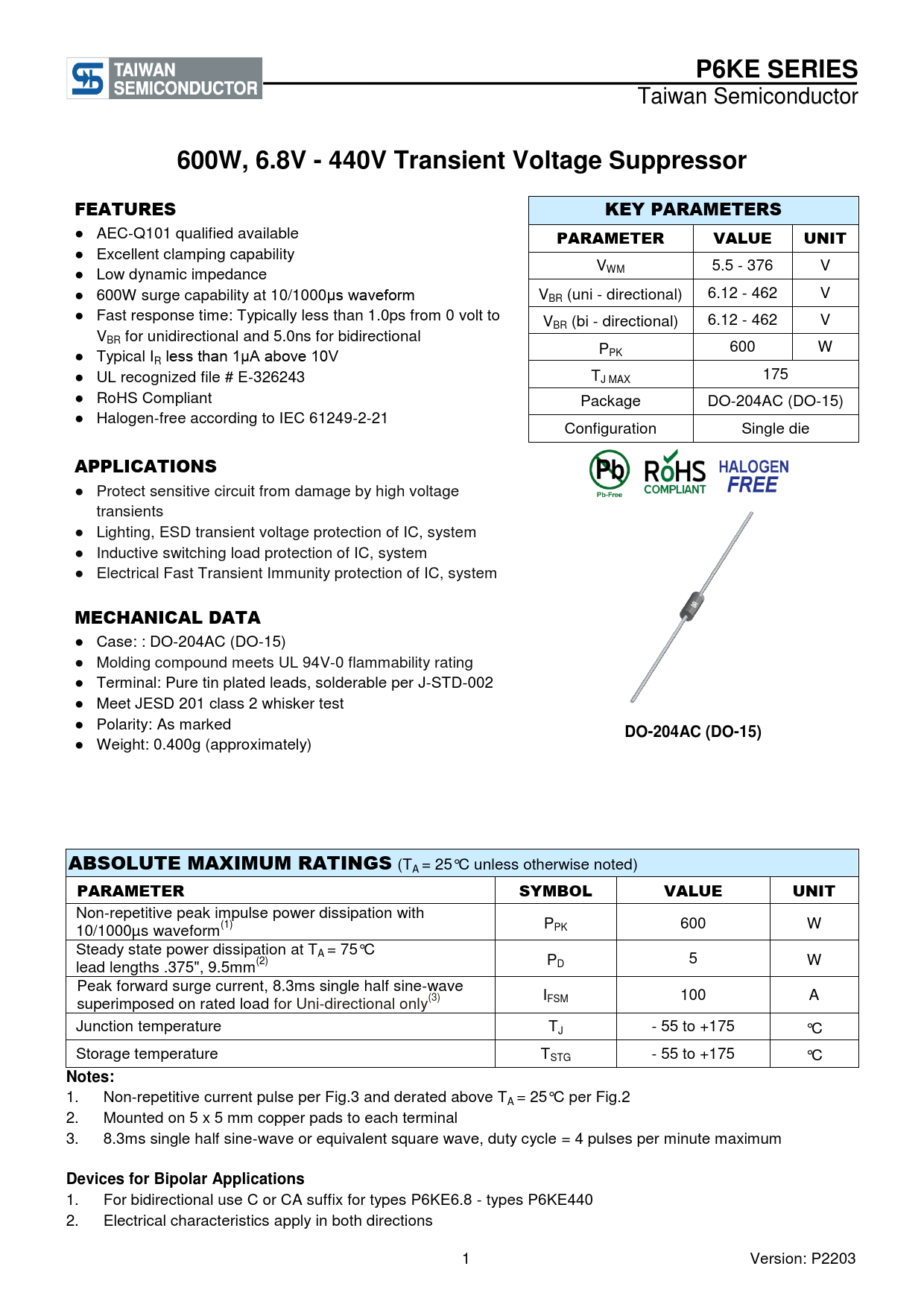

P6KE SERIES
Taiwan Semiconductor
600W, 6.8V - 440V Transient Voltage Suppressor FEATURES KEY PARAMETERS
● AEC-Q101 qualified available
PARAMETER VALUE UNIT
● Excellent clamping capability ● V Low dynamic impedance WM 5.5 - 376 V ● 600W surge capability at 10/1000μs waveform V 6.12 - 462 V BR (uni - directional) ● Fast response time: Typically less than 1.0ps from 0 volt to VBR (bi - directional) 6.12 - 462 V VBR for unidirectional and 5.0ns for bidirectional ● P 600 W Typical I PK R less than 1μA above 10V ● UL recognized file # E-326243 TJ MAX 175 ● RoHS Compliant Package DO-204AC (DO-15) ● Halogen-free according to IEC 61249-2-21 Configuration Single die
APPLICATIONS
● Protect sensitive circuit from damage by high voltage transients ● Lighting, ESD transient voltage protection of IC, system ● Inductive switching load protection of IC, system ● Electrical Fast Transient Immunity protection of IC, system
MECHANICAL DATA
● Case: DO-204AC (DO-15) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Pure tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked
DO-204AC (DO-15)
● Weight: 0.400g (approximately)
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise noted)
PARAMETER SYMBOL VALUE UNIT
Non-repetitive peak impulse power dissipation with 10/1000µs waveform(1) PPK 600 W Steady state power dissipation at TA = 75°C P lead lengths .375", 9.5mm(2) D 5 W Peak forward surge current, 8.3ms single half sine-wave I superimposed on rated load for Uni-directional only(3) FSM 100 A Junction temperature TJ - 55 to +175 °C Storage temperature TSTG - 55 to +175 °C
Notes:
1. Non-repetitive current pulse per Fig.3 and derated above TA = 25°C per Fig.2 2. Mounted on 5 x 5 mm copper pads to each terminal 3. 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
Devices for Bipolar Applications
1. For bidirectional use C or CA suffix for types P6KE6.8 - types P6KE440 2. Electrical characteristics apply in both directions 1 Version: P2203
Taiwan Semiconductor
600W, 6.8V - 440V Transient Voltage Suppressor FEATURES KEY PARAMETERS
● AEC-Q101 qualified available
PARAMETER VALUE UNIT
● Excellent clamping capability ● V Low dynamic impedance WM 5.5 - 376 V ● 600W surge capability at 10/1000μs waveform V 6.12 - 462 V BR (uni - directional) ● Fast response time: Typically less than 1.0ps from 0 volt to VBR (bi - directional) 6.12 - 462 V VBR for unidirectional and 5.0ns for bidirectional ● P 600 W Typical I PK R less than 1μA above 10V ● UL recognized file # E-326243 TJ MAX 175 ● RoHS Compliant Package DO-204AC (DO-15) ● Halogen-free according to IEC 61249-2-21 Configuration Single die
APPLICATIONS
● Protect sensitive circuit from damage by high voltage transients ● Lighting, ESD transient voltage protection of IC, system ● Inductive switching load protection of IC, system ● Electrical Fast Transient Immunity protection of IC, system
MECHANICAL DATA
● Case: DO-204AC (DO-15) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Pure tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked
DO-204AC (DO-15)
● Weight: 0.400g (approximately)
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise noted)
PARAMETER SYMBOL VALUE UNIT
Non-repetitive peak impulse power dissipation with 10/1000µs waveform(1) PPK 600 W Steady state power dissipation at TA = 75°C P lead lengths .375", 9.5mm(2) D 5 W Peak forward surge current, 8.3ms single half sine-wave I superimposed on rated load for Uni-directional only(3) FSM 100 A Junction temperature TJ - 55 to +175 °C Storage temperature TSTG - 55 to +175 °C
Notes:
1. Non-repetitive current pulse per Fig.3 and derated above TA = 25°C per Fig.2 2. Mounted on 5 x 5 mm copper pads to each terminal 3. 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
Devices for Bipolar Applications
1. For bidirectional use C or CA suffix for types P6KE6.8 - types P6KE440 2. Electrical characteristics apply in both directions 1 Version: P2203
