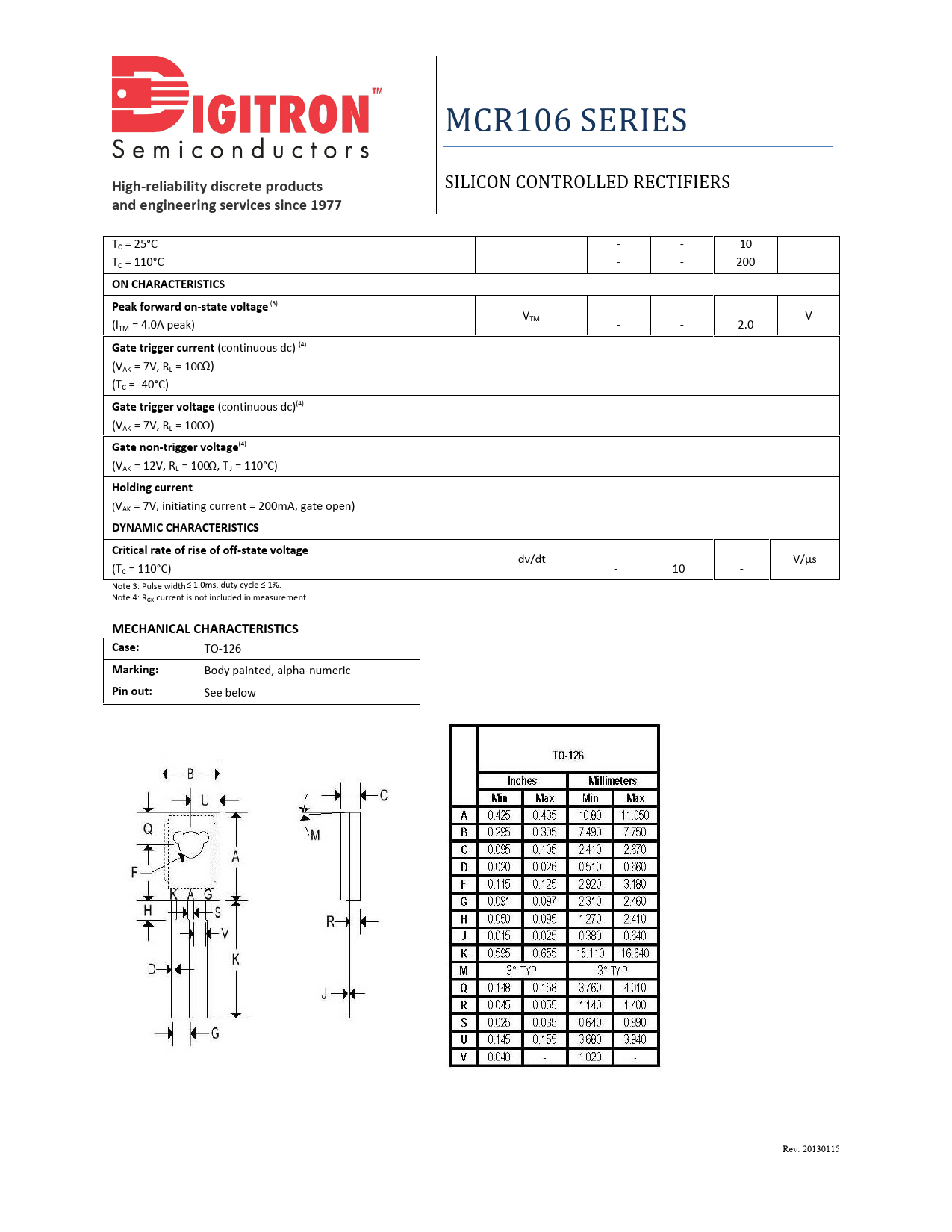

Datasheet MCR106 (Digitron Semiconductors) - 2

MCR106 SERIES
High-reliability discrete products
SILICON CONTROLLED RECTIFIERS
and engineering services since 1977
TC = 25°C - - 10 TC = 110°C - - 200
ON CHARACTERISTICS Peak forward on-state voltage
(3) V V (I TM TM = 4.0A peak) - - 2.0
Gate trigger current
(continuous dc) (4) (VAK = 7V, RL = 100Ω) (TC = -40°C)
Gate trigger voltage
(continuous dc)(4) (VAK = 7V, RL = 100Ω)
Gate non-trigger voltage
(4) (VAK = 12V, RL = 100Ω, TJ = 110°C)
Holding current
(VAK = 7V, initiating current = 200mA, gate open)
DYNAMIC CHARACTERISTICS Critical rate of rise of off-state voltage
dv/dt V/µs (TC = 110°C) - 10 - Note 3: Pulse width≤ 1.0ms, duty cycle ≤ 1%. Note 4: RGK current is not included in measurement.
MECHANICAL CHARACTERISTICS Case:
TO-126
Marking:
Body painted, alpha-numeric
Pin out:
See below Rev. 20130115
