Datasheet PT334-6C (Everlight) - 2
| Hersteller | Everlight |
| Beschreibung | 5mm Phototransistor T-1 3/4 |
| Seiten / Seite | 7 / 2 — PT334-6C. Package Dimensions. Notes:. Absolute Maximum Ratings (Ta=25. … |
| Dateiformat / Größe | PDF / 156 Kb |
| Dokumentensprache | Englisch |
PT334-6C. Package Dimensions. Notes:. Absolute Maximum Ratings (Ta=25. Parameter Symbol. Rating. Units
Modelllinie für dieses Datenblatt
Textversion des Dokuments

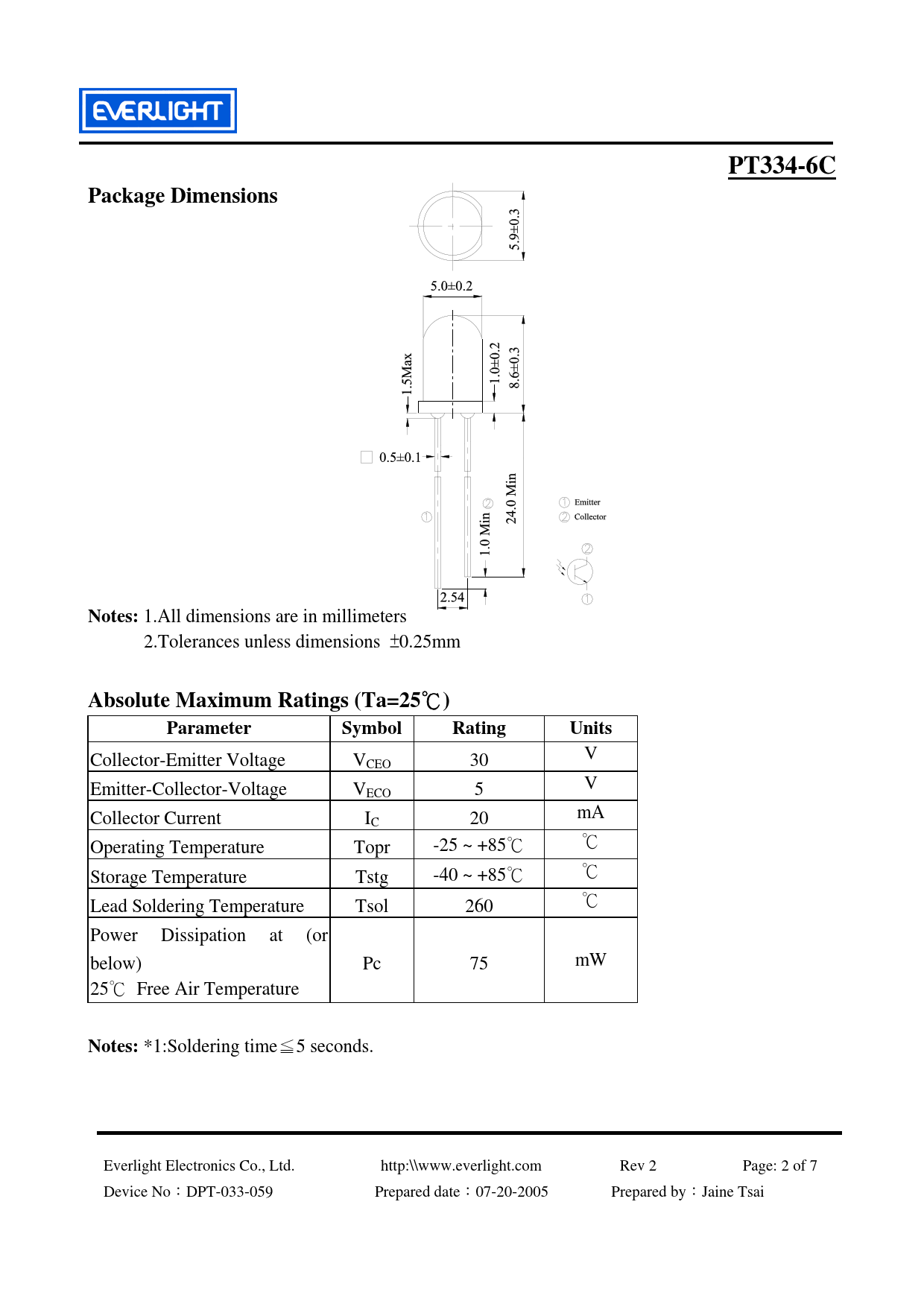

PT334-6C Package Dimensions Notes:
1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Collector-Emitter Voltage VCEO 30 V Emitter-Collector-Voltage VECO 5 V Collector Current IC 20 mA Operating Temperature Topr -25 ~ +85℃ ℃ Storage Temperature Tstg -40 ~ +85℃ ℃ Lead Soldering Temperature Tsol 260 ℃ Power Dissipation at (or below) Pc 75 mW 25℃ Free Air Temperature
Notes:
*1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 7 Device No：DPT-033-059 Prepared date：07-20-2005 Prepared by：Jaine Tsai
1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Collector-Emitter Voltage VCEO 30 V Emitter-Collector-Voltage VECO 5 V Collector Current IC 20 mA Operating Temperature Topr -25 ~ +85℃ ℃ Storage Temperature Tstg -40 ~ +85℃ ℃ Lead Soldering Temperature Tsol 260 ℃ Power Dissipation at (or below) Pc 75 mW 25℃ Free Air Temperature
Notes:
*1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 7 Device No：DPT-033-059 Prepared date：07-20-2005 Prepared by：Jaine Tsai
