Datasheet LT4423 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 28V, 2A Ideal Diode and Load Switch |
| Seiten / Seite | 18 / 7 — Data Sheet. LT4423. 1.5. RISING. FALLING. 1.4. 1.3. (V NDHSV 1.2. 1.1. … |
| Dateiformat / Größe | PDF / 456 Kb |
| Dokumentensprache | Englisch |
Data Sheet. LT4423. 1.5. RISING. FALLING. 1.4. 1.3. (V NDHSV 1.2. 1.1. 1.0. –50. –25. 100. 125. 150. TEMPERATURE (°C)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet LT4423 1.5 RISING FALLING 1.4 ) 1.3 (V NDHSV 1.2 1.1 1.0 –50 –25 0 25 50 75 100 125 150 TEMPERATURE (°C)
010

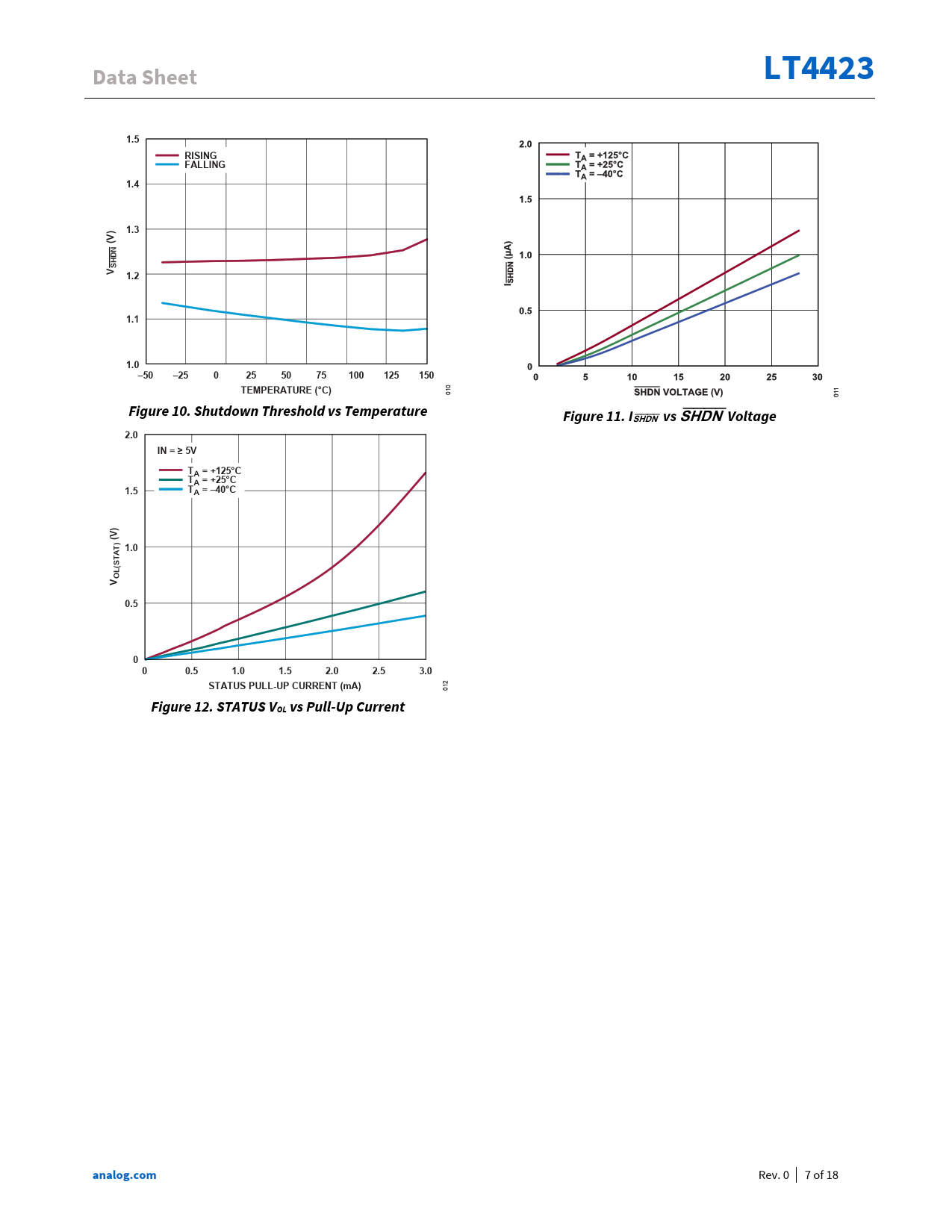

Figure 10. Shutdown Threshold vs Temperature Figure 11. I SHDN vs SHDN Voltage 2.0 IN = ≥ 5V TA = +125°C TA = +25°C 1.5 TA = –40°C ) (V )T 1.0 A T S(LOV 0.5 0 0 0.5 1.0 1.5 2.0 2.5 3.0 STATUS PULL-UP CURRENT (mA)
012
Figure 12. STATUS VOL vs Pull-Up Current analog.com
