Datasheet RTR020P02 (Rohm) - 4
| Hersteller | Rohm |
| Beschreibung | 2.5V Drive Pch MOSFET |
| Seiten / Seite | 5 / 4 — Measurement circuits |
| Dateiformat / Größe | PDF / 94 Kb |
| Dokumentensprache | Englisch |
Measurement circuits
Modelllinie für dieses Datenblatt
Textversion des Dokuments
RTR020P02 Tr ansistors z
Measurement circuits

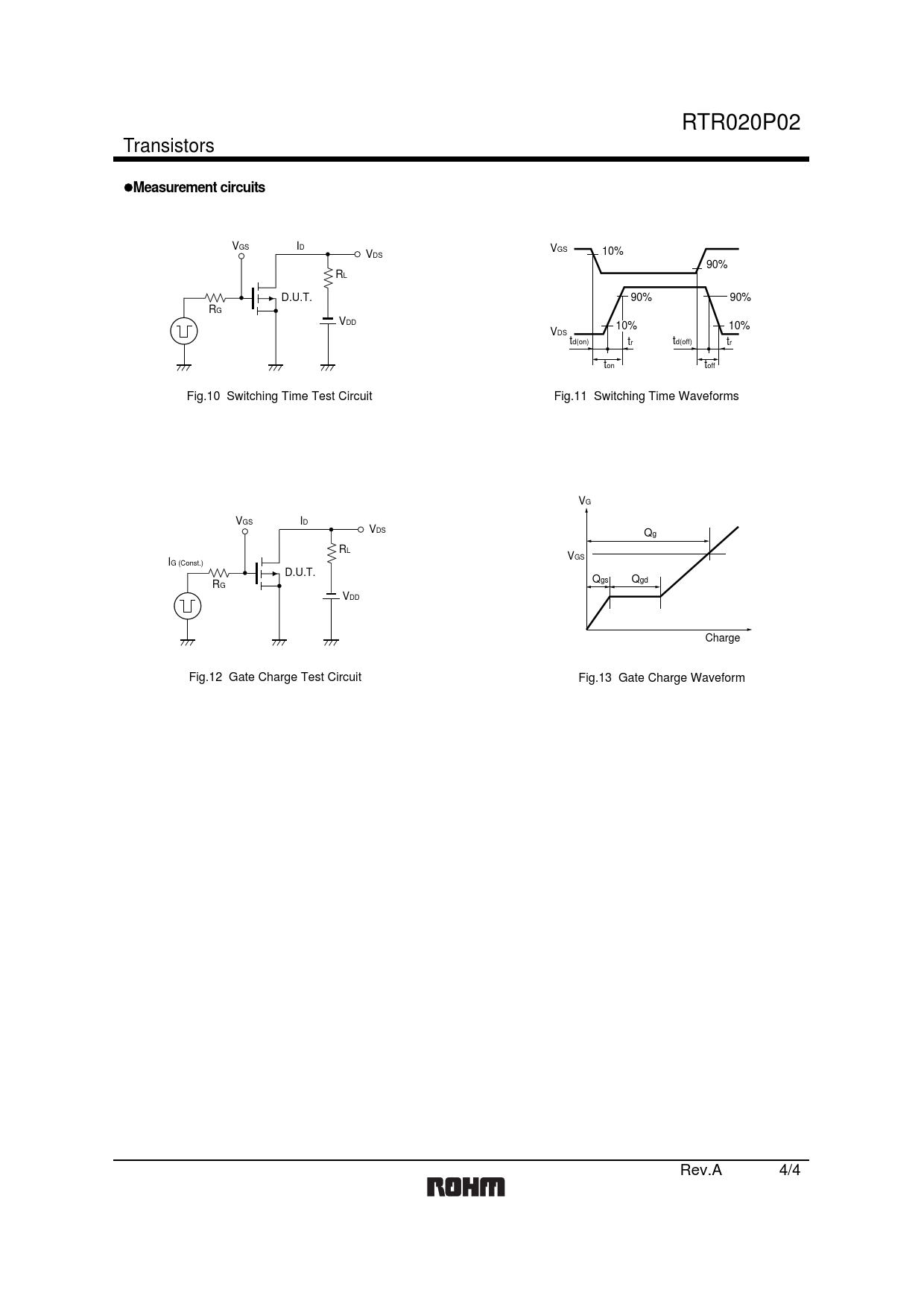

VGS ID VGS V 10% DS 90% RL D.U.T. 90% 90% RG VDD 10% 10% VDS td(on) tr td(off) tr ton toff Fig.10 Switching Time Test Circuit Fig.11 Switching Time Waveforms VG VGS ID VDS Qg RL VGS IG (Const.) D.U.T. Q R gs Qgd G VDD Charge Fig.12 Gate Charge Test Circuit Fig.13 Gate Charge Waveform Rev.A 4/4 Document Outline 2.5V Drive Pch MOS FET RTR020P02
