| Beschreibung | Low Cathode Current Adjustable Precision Shunt Regulator |
| Seiten / Seite | 17 / 2 — NOT RECOMMENDED FOR NEW DESIGN. USE AP431S. AP431i. Typical Applications … |
| Dateiformat / Größe | PDF / 603 Kb |
| Dokumentensprache | Englisch |
NOT RECOMMENDED FOR NEW DESIGN. USE AP431S. AP431i. Typical Applications Circuit. www.diodes.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments

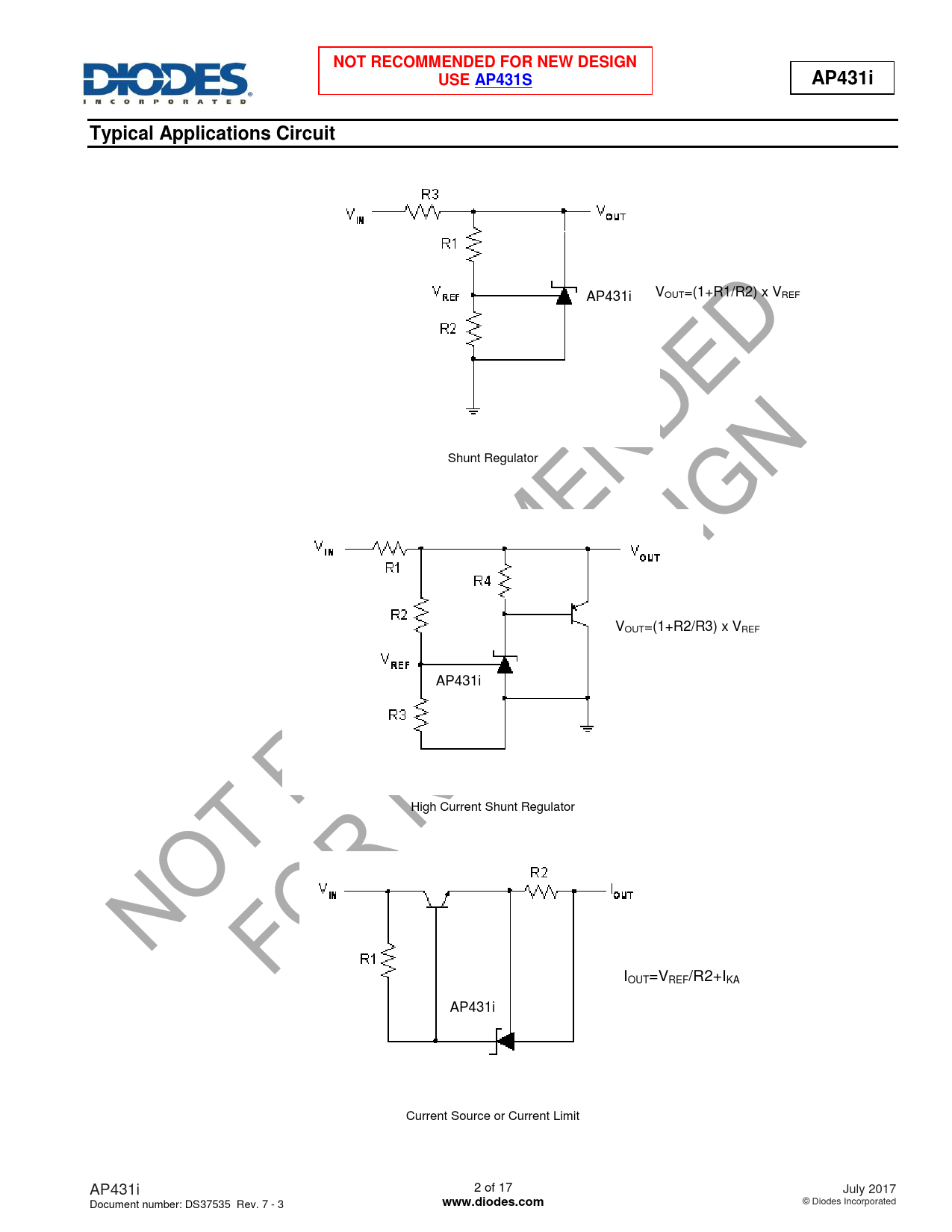

NOT RECOMMENDED FOR NEW DESIGN USE AP431S AP431i Typical Applications Circuit
VOUT=(1+R1/R2) x VREF AP431i Shunt Regulator VOUT=(1+R2/R3) x VREF AP431i High Current Shunt Regulator IOUT=VREF/R2+IKA AP431i Current Source or Current Limit AP431i 2 of 17 July 2017 Document number: DS37535 Rev. 7 - 3
