NV6288. 7.2. Recommended Operating Conditions. SYMBOL. PARAMETER. MIN. TYP. MAX. UNITS. 7.3. ESD Ratings. 7.4. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments

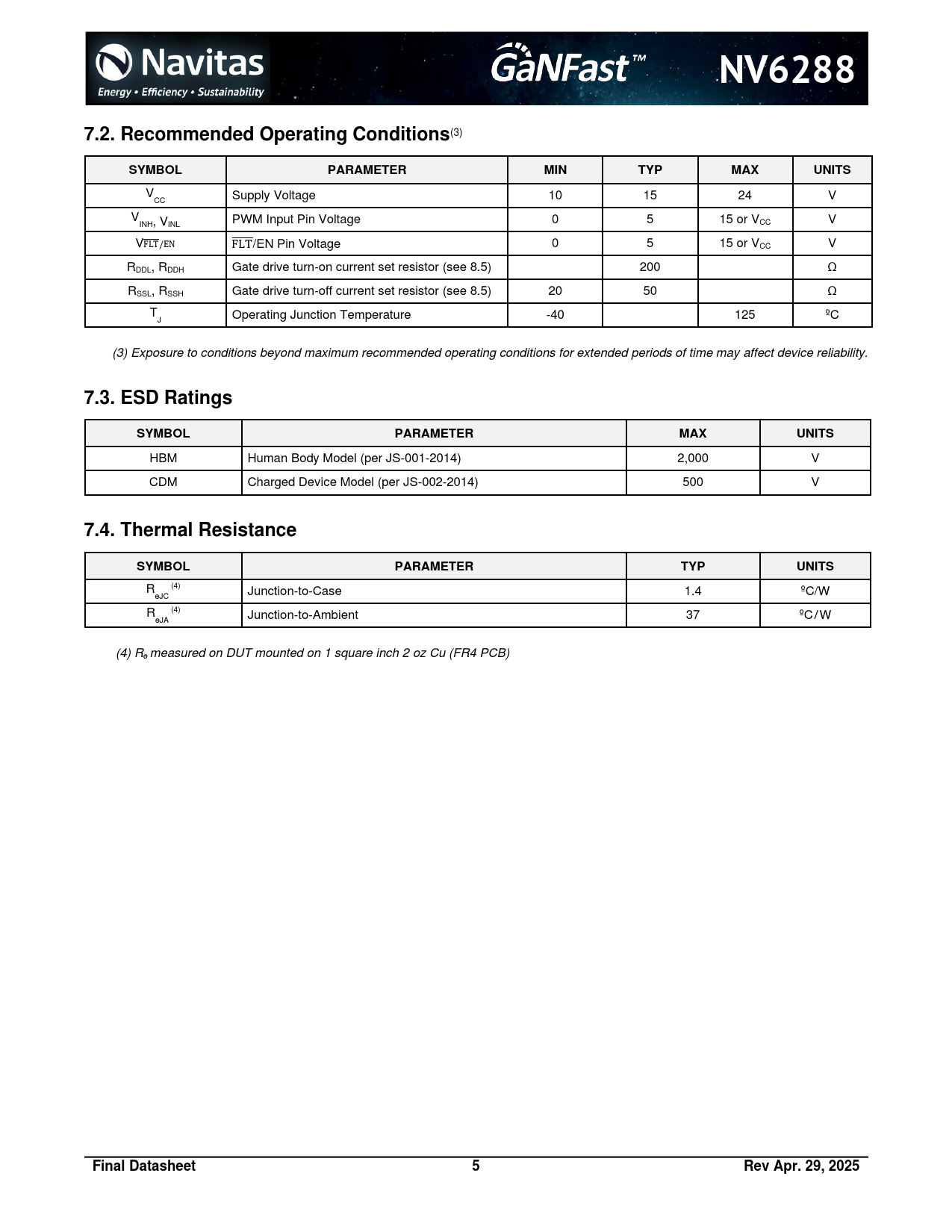

NV6288 7.2. Recommended Operating Conditions
(3)
SYMBOL PARAMETER MIN TYP MAX UNITS
V Supply Voltage 10 15 24 V CC V PWM Input Pin Voltage 0 5 15 or V INH, VINL CC V VFLT/EN FLT/EN Pin Voltage 0 5 15 or VCC V RDDL, RDDH Gate drive turn-on current set resistor (see 8.5) 200 Ω RSSL, RSSH Gate drive turn-off current set resistor (see 8.5) 20 50 Ω T Operating Junction Temperature -40 125 ºC J (3) Exposure to conditions beyond maximum recommended operating conditions for extended periods of time may affect device reliability.
7.3. ESD Ratings SYMBOL PARAMETER MAX UNITS
HBM Human Body Model (per JS-001-2014) 2,000 V CDM Charged Device Model (per JS-002-2014) 500 V
7.4. Thermal Resistance SYMBOL PARAMETER TYP UNITS
R (4) ɵ Junction-to-Case 1.4 ºC/W JC R (4) Junction-to-Ambient 37 ºC/W ɵJA (4) Rɵ measured on DUT mounted on 1 square inch 2 oz Cu (FR4 PCB)
Final Datasheet 5 Rev Apr. 29, 2025
(3)
SYMBOL PARAMETER MIN TYP MAX UNITS
V Supply Voltage 10 15 24 V CC V PWM Input Pin Voltage 0 5 15 or V INH, VINL CC V VFLT/EN FLT/EN Pin Voltage 0 5 15 or VCC V RDDL, RDDH Gate drive turn-on current set resistor (see 8.5) 200 Ω RSSL, RSSH Gate drive turn-off current set resistor (see 8.5) 20 50 Ω T Operating Junction Temperature -40 125 ºC J (3) Exposure to conditions beyond maximum recommended operating conditions for extended periods of time may affect device reliability.
7.3. ESD Ratings SYMBOL PARAMETER MAX UNITS
HBM Human Body Model (per JS-001-2014) 2,000 V CDM Charged Device Model (per JS-002-2014) 500 V
7.4. Thermal Resistance SYMBOL PARAMETER TYP UNITS
R (4) ɵ Junction-to-Case 1.4 ºC/W JC R (4) Junction-to-Ambient 37 ºC/W ɵJA (4) Rɵ measured on DUT mounted on 1 square inch 2 oz Cu (FR4 PCB)
Final Datasheet 5 Rev Apr. 29, 2025
